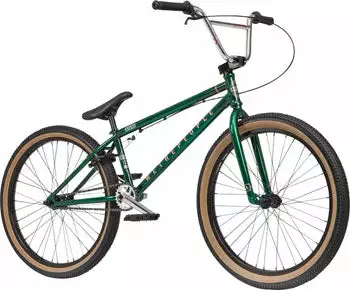

We The People The Atlas 24″ Bike-Glossy Dark Green

Frameset

Frame
4130 full crmo, intg. chain tensioner
Fork
SALTPLUS Magic-24 fork, sanko tubing, cnc steerer, inv. cast dropouts
Seatpost clamp
integrated seat clamp
Drivetrain

Crankset
SALTPLUS PRO48 tubular 3pc crank crmo 175mm, 48 spline
Bottom Bracket
SALT Mid Size, press fit, sealed bearing
Sprocket
SALTPLUS Center 6061 T6 alloy, cnc, 25t sprocket
Driver
10t, 1pc cassette driver, sealed bearing
Chain
SALT AM chain, 510h type
Components

Headset
SALTPLUS Echo int. headset, sealed bearing
Gyro
no
Brakes
SALTPLUS Geo-V2 u-brake rear, incl. Saltplus “Propeller” brake pads
Brake Levers
SALT Moto alloy brake lever
Stem
SALTPLUS Field top loading stem, 50mm reach
Handlebar
full 4130 crmo bar
Saddle
WETHEPEOPLE Altas slim padded pivotal seat
Seatpost
SALT AM pivotal seat post, alloy, 150mm
Grips
WETHEPEOPLE Vex compound Hilt grips
Pedals
ÉCLAT Slash nylon/fibreglass pedals
Wheels Front Hub
SALT Expert hub, sb, 3/8s female bolts, 36h
Rear Hub
SALT Pro cassette hub, sb, 10t, hollow 14mm axle, 36h
Front Rim
SALTPLUS Summit straight double wall rim, 36h
Rear Rim
SALTPLUS Summit straight double wall rim, 36h
Tires
KENDA Small Block 8 tires 2.1″ front / 1.95″
Pegs
–
Additional Info

Weight
12kg (26.4lbs) as pictured
Chain Stay Length
14.6″
Head Tube Angle
74°
Seat Tube Angle
72°
Bottom Bracket Height
12.7″
Seat Tube Height
9.7″
Handlebar Backsweep
12°
Handlebar Rise
7.5″
Handlebar Width
28.1″
Handlebar Upsweep
2.5°
