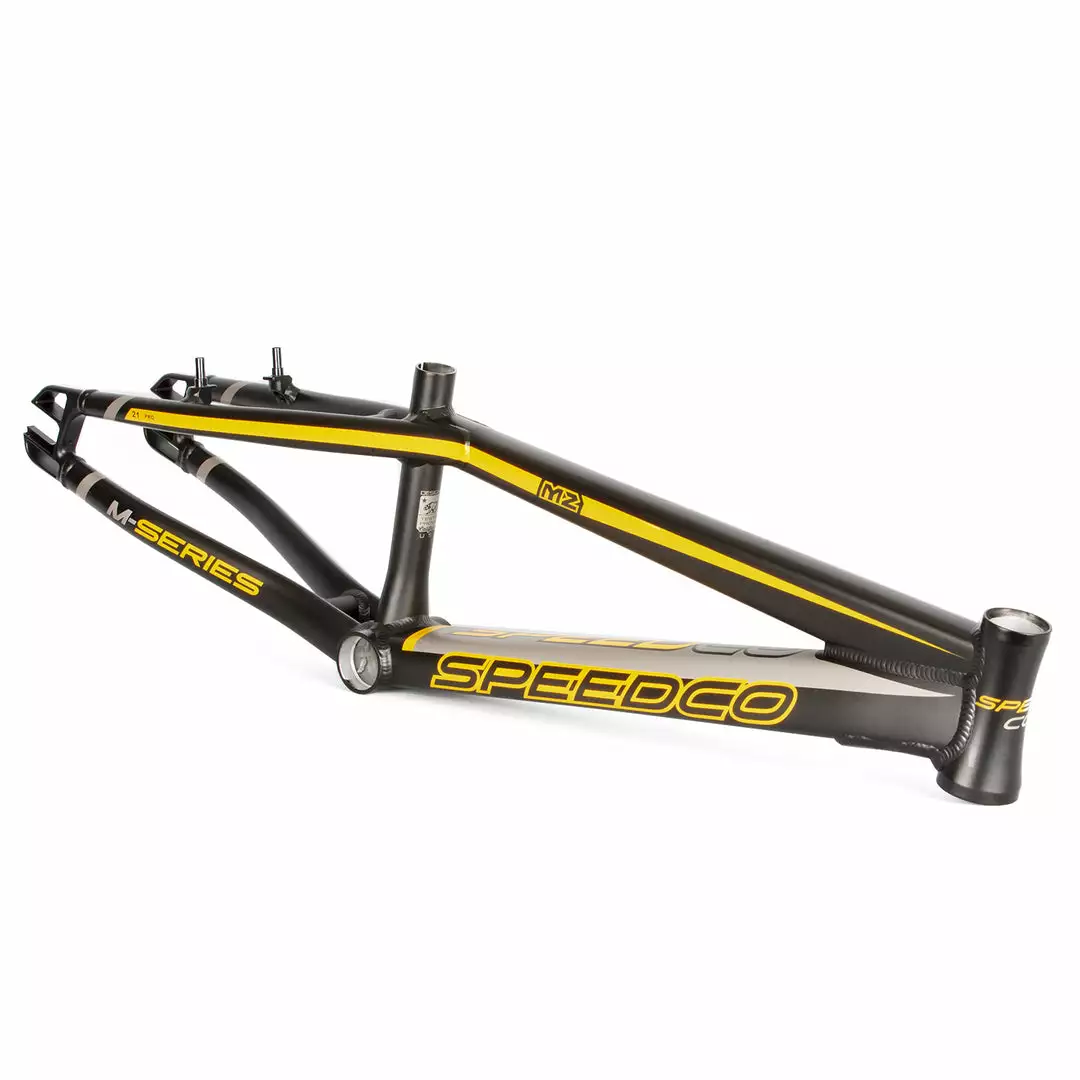

Speedco M2 Alloy BMX Race Frame-Matte Black/Yellow FRAMES

The Speedco M2 Alloy BMX Race Frame-Matte Black/Yellow line of alloy frames is aesthetically designed to replicate Speedco’s Flagship model, the Velox Carbon. The custom 7005 series alloy tubeset on the M2 frames are heat treated and double-butted for weight reduction and increased strength. The down-tube on the M2 line is oversized and tapered slightly throughout the sizes to enhance response and ensure that riders of all sizes benefit from the maximum rigidity for their body weight. The chain-stay width follows suit as these bikes were built to sprint, and peak performance out of the gate and corners under high power output is top priority in the M2. Lastly, an integrated chain tensioner system is seamless throughout the 16 sizes in the M2 line and will keep the rear wheel locked in under the highest wattage output you can only dream of. Do you have what it takes to put the most responsive alloy bike you’ve ever ridden through it’s proper paces?

YOUTH FEATURES (MINI- EXPERT 24″)

• Euro BB: The bottom bracket on our youth frames is a euro threaded 68mm shell which works efficiently with all crank systems whether pinch-bolt or square-taper.
• 10mm drop-out: a 10mm drop-out with an included outside adapter to integrate with the frames chain-tensioner works efficiently while avoiding direct axle to tensioner contact.
• Integrated 1-1/8″ head-tube: The head-tube on our youth line is a standard integrated system which allows for easy headset drop-in install, and accommodates both 1” & 1-1/8” steerer tubes with ease.

PRO FEATURES (PRO AND LARGER)

• BB86: There are 3 popular bottom bracket standards for BMX – euro, BB30, and BB86. A euro is a threaded BB, the shell is 68mm wide and it uses 24mm (92mm total) of outboard bearings and a 24mm crank spindle. A BB30 is similar, 68mm shell but promotes a larger crank spindle (30mm) therefore a larger spindle to flex the same narrow bottom bracket junction. The M2 Alloy uses a BB86 which is a 86mm BB shell and press-fit bearings that equal 4mm added to the 86mm shell (92mm total) while using a 24mm spindle. The advantage to our BB is the wider down-tube and chain-stay described above. Rigidity is key for first straight pull and accelerating out of turns, while a flimsy frame will just get you cut off out of the gate.
• 10/15mm dropout: The dropout on the M2 Alloy is all about efficiency. With an integrated chain tensioner through the front of the dropout, the need to over-tighten your wheel has been eliminated. Each dropout uses two flex-free 4mm adapters to insure your wheel isn’t gonna move regardless of how many horses you’re putting down first pedal.
• Tapered head tube: The standard for high-end race frames is a tapered head tube. A tapered head tube uses a 1-1/8” top bearing and a 1.5” bottom bearing and allows us to use a fork both lighter and stronger than ever before.
• Tubeset: The M2 features a fully double-butted 7005-aluminum tube set. The massive down-tube tapers 52mm to 72mm top to bottom, which eliminates flex and allows your power to be efficiently converted to speed as you accelerate from the gate, and corners.

GEOMETRY

Geometry

SIZE	TT	BB HEIGHT	REAR CENTER	ST ANGLE	HT ANGLE	CLAMP	POST	WEIGHT
SIZE: Mini 20″	TT: 17″	BB HEIGHT: 10.6″	REAR CENTER: 13.5″	ST ANGLE: 70°	HT ANGLE: 73°	CLAMP: 25.4	POST: 22.2	WEIGHT: 2.5lbs
SIZE: Mini XL 20″	TT: 17.5″	BB HEIGHT: 10.6″	REAR CENTER: 13.5″	ST ANGLE: 70°	HT ANGLE: 73°	CLAMP: 25.4	POST: 22.2	WEIGHT: 2.56lbs
SIZE: Junior 20″	TT: 18″	BB HEIGHT: 10.75″	REAR CENTER: 13.75″	ST ANGLE: 70°	HT ANGLE: 73°	CLAMP: 25.4	POST: 22.2	WEIGHT: 2.60lbs
SIZE: Junior XL 20″	TT: 18.5″	BB HEIGHT: 10.75″	REAR CENTER: 13.75″	ST ANGLE: 70°	HT ANGLE: 73°	CLAMP: 25.4	POST: 22.2	WEIGHT: 2.62lbs
SIZE: Expert 20″	TT: 19.25″	BB HEIGHT: 11″	REAR CENTER: 14″	ST ANGLE: 70°	HT ANGLE: 73°	CLAMP: 25.4	POST: 22.2	WEIGHT: 2.84lbs
SIZE: Expert XL 20″	TT: 20″	BB HEIGHT: 11.5″	REAR CENTER: 14.25″	ST ANGLE: 70°	HT ANGLE: 73°	CLAMP: 25.4	POST: 22.2	WEIGHT: 2.94lbs
SIZE: Expert XXL 20″	TT: 20.5″	BB HEIGHT: 11.5″	REAR CENTER: 14.25″	ST ANGLE: 70°	HT ANGLE: 73°	CLAMP: 25.4	POST: 22.2	WEIGHT: 3.10lbs
SIZE: Junior 24″	TT: 18.75″	BB HEIGHT: 11.2″	REAR CENTER: 15″	ST ANGLE: 69.5°	HT ANGLE: 73°	CLAMP: 25.4	POST: 22.2	WEIGHT: 2.92lbs
SIZE: Expert 24″	TT: 20″	BB HEIGHT: 11.5″	REAR CENTER: 15″	ST ANGLE: 69.5°	HT ANGLE: 73°	CLAMP: 25.4	POST: 22.2	WEIGHT: 2.96lbs
SIZE: Pro 20″	TT: 20.5″	BB HEIGHT: 11.5″	REAR CENTER: 14.75″	ST ANGLE: 72°	HT ANGLE: 74°	CLAMP: 31.8	POST: 27.2	WEIGHT: 3.7lbs
SIZE: Pro XL 20″	TT: 21″	BB HEIGHT: 11.5″	REAR CENTER: 14.75″	ST ANGLE: 72°	HT ANGLE: 74°	CLAMP: 31.8	POST: 27.2	WEIGHT: 3.75.lbs
SIZE: Pro XL+ 20″	TT: 21.35″	BB HEIGHT: 11.5″	REAR CENTER: 14.75″	ST ANGLE: 72°	HT ANGLE: 74°	CLAMP: 31.8	POST: 27.2	WEIGHT: 3.8lbs
SIZE: Pro XXL 20″	TT: 21.75″	BB HEIGHT: 11.5″	REAR CENTER: 15.2″	ST ANGLE: 72°	HT ANGLE: 74°	CLAMP: 31.8	POST: 27.2	WEIGHT: 3.85lbs
SIZE: Pro XXXL 20″	TT: 22″	BB HEIGHT: 11.5″	REAR CENTER: 15.2″	ST ANGLE: 72°	HT ANGLE: 74°	CLAMP: 31.8	POST: 27.2	WEIGHT: 3.95lbs
SIZE: Pro 24″	TT: 21″	BB HEIGHT: 12″	REAR CENTER: 15.4″	ST ANGLE: 69.5°	HT ANGLE: 73°	CLAMP: 31.8	POST: 27.2	WEIGHT: 3.85lb
SIZE: Pro XL 24″	TT: 21.75″	BB HEIGHT: 12″	REAR CENTER: 15.4″	ST ANGLE: 69.5°	HT ANGLE: 73°	CLAMP: 31.8	POST: 27.2	WEIGHT: 3.95lbs
