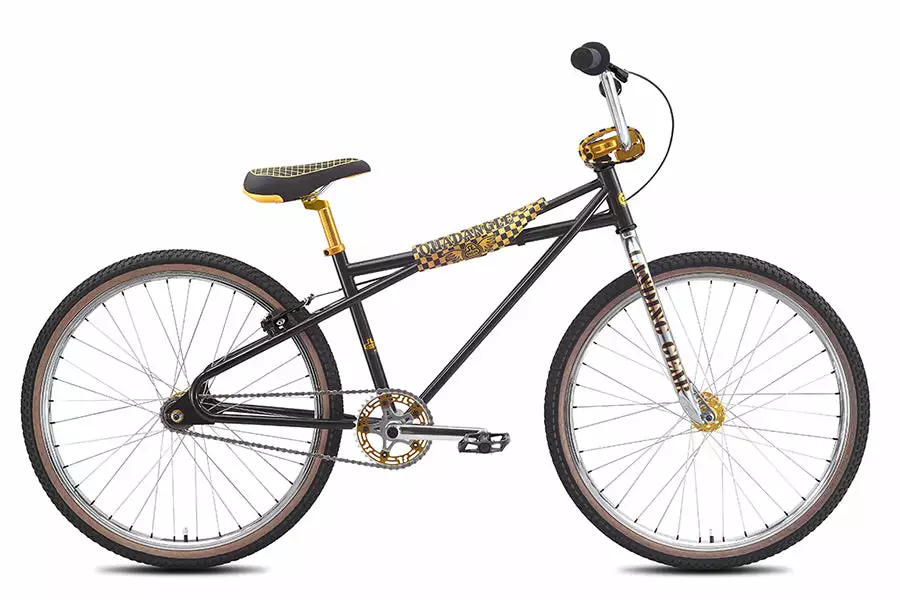

SE Racing Quadangle Looptail-26″-Black Sparkle RACE BIKES

The 26″ Quadangle Looptail makes its return to the SE Retro lineup! Built with a unique double downtube frame with a looptail rear end, this bike screams old-school BMX. The super-clean black, gold, and chrome colorway spans generations of radness.

TOP TUBE, ACTUAL	22″
SEAT TUBE, CENTER TO TOP	15″
SEAT TUBE ANGLE	73°
HEAD TUBE ANGLE	71°
CHAINSTAY	17″
WHEELBASE	41.6″
BOTTOM BRACKET HEIGHT	11.7″
SEAT POST DIAMETER	27.2mm
STAND OVER HEIGHT	27.1″
SUGGESTED RIDER SIZE	5’3″+ (160cm+)

COLOR(S)	Black Sparkle
FRAME	100% Cr-Mo Tubing, Classic Double Downtube, Looptail Rear End, Retro Dropouts, Limited Edition & Individually Numbered
FORK	Full Cr-Mo Landing Gear
CRANKSET	SE 3-pc Cr-Mo, Closed-End Invisibolt, 180mm, Sealed Bearing American BB, 39T Alloy SE Racing Chainring
PEDALS	X-Pedo Low-profile Platform w/ Removable Pins
CHAIN	KMC Z410A
WHEELSET	Sealed Bearing 36H High-Flange Alloy Bubble Mohawk Hubs w/ Double-wall Rims, ACS Crossfire 17T Freewheel, Stainless Spokes, Frame Protector Alloy Washers
TIRES	Kenda K-Rad 26″ x 1.95″ F & R
BRAKES	Tektro BX-310 V-Brake, Slick Cable
BRAKE LEVER	Tektro 316A, 2-Finger Alloy
HEADSET	Tange 1-1/8″ Threadless
HANDLEBAR	Cr-Mo Power Wing Cruiser Bar, 28″ x 7″
STEM	Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts
GRIPS	Special Edition ODI Mushroom II Dual-Ply Grips w/ Donuts, Made in USA
SEAT	SE Flyer Seat
SEAT POST	Retro Fluted Micro-Adjust Alloy, 25.4mm
EXTRAS	Vintage Vinyl SE Racing Padset, Alloy Valve Caps, Alloy Rear Wheel Washers
WEIGHT, LBS/KG	29.80lbs / 13.54kgs
