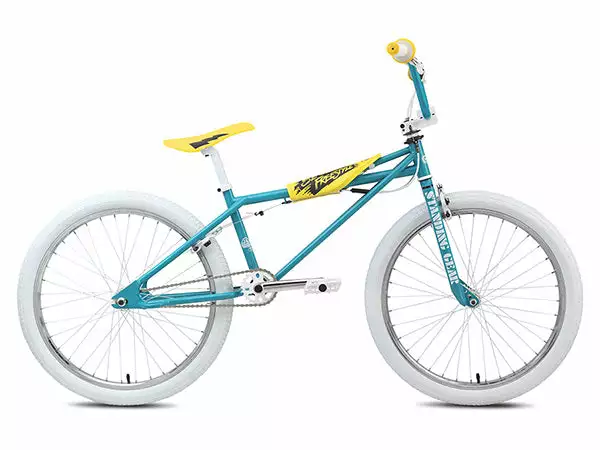

SE Bikes Quadangle Freestyle BMX Bike-24″-Aqua

The 24″ Quadangle Freestyle makes it’s first-ever appearance in our Retro line. Built with 24″ wheels, raised bottom bracket, and short rear-end, this bike rides like a modern new-school cruiser. Add in the standing platforms on the rear, Standing Gear forks, rotor, and Oakley B-1B grips, and you have the perfect mix of an excellent ride with old-school freestyle flair.

FRAME SPECS:

SEAT TUBE, CENTER TO TOP	12″
SEAT TUBE ANGLE	71°
HEAD TUBE ANGLE	74.5°
CHAINSTAY	15.4″
WHEELBASE	39.2″
BOTTOM BRACKET HEIGHT	13.8°
SEAT POST DIAMETER	25.4mm
STAND OVER HEIGHT	25.2″
SUGGESTED RIDER SIZE	5’3″+ (160cm+)

DETAILS:

FRAME	New 2015 Frame Design, 100% Cr-Mo Tubing, Classic Double Downtube, Standing Platforms, Limited Edition & Individually Numbered
FORK	Full Cr-Mo Standing Gear
CRANKSET	SE 3-pc Cr-Mo, Closed-End Invisibolt, 180mm, Sealed Bearing American BB, 25T Alloy SE Bubble Sprocket
PEDALS	SE Nylon Fiber
CHAIN	KMC Z410A
WHEELSET	SE Alloy 36H 3/8″ F & 14mm Semi-Sealed R Hubs w/ Double-wall Rims, 10T Driver, Stainless Spokes, Rear Alloy Washers
TIRES	Kenda K-927 24″ x 2.125″ F & R
BRAKES	Promax SEU-961, U-Brake, Linear Pull, For Wide Tires, F & R
BRAKE LEVER	Promax SEL-427, 2-Finger Hinged Alloy, F & R
HEADSET	Tange ER 1-1/8″ Threadless
HANDLEBAR	Cr-Mo Power Wing Cruiser Bar, 28″ x 7″
STEM	Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts
GRIPS	Oakley B-1B, Custom Colorway, w/ Donuts, Made in USA
SEAT	SE Lightning Blitz Seat w/ Bottle Opener
SEAT POST	Retro Fluted Micro-Adjust Alloy, 27.2mm
EXTRAS	SST Oryg Rotor, Vintage Vinyl Retro Pads, Alloy Valve Caps
WEIGHT, LBS/KG	31.60lbs / 14.33kgs

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture’s warranty. Manufacture’s warranties differ for every brand. You can check the brand’s website for warranty information.
