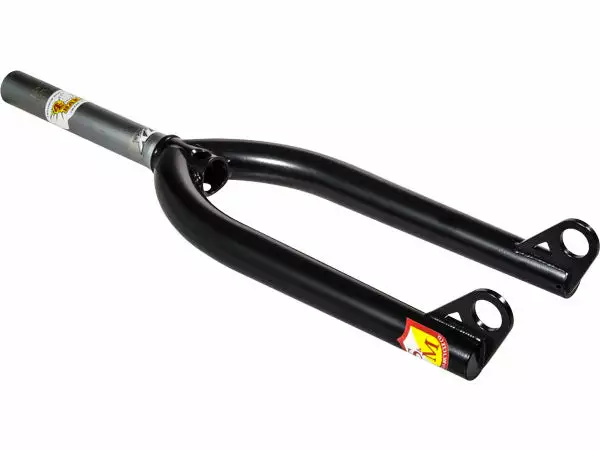

The S&M Race XLT Dub race fork features a 20mm chromoly dropout, heat treated chromoly legs and CNC machined steer tube.
SPECS:
SPECS:
FIT: 1 1/8″ steer tube for frames with 1 1/8″ head tube, 20″
USE: Race
MATERIAL:Â 100% “4Q-Baked” heat treated chromoly, Double Butted legs
COMPRESSIONÂ BOLT: M10 X 1.25 Thread – 6mm Allen Slot
RAKE/OFFSET: 33mm
HEIGHT: 12.4″/315.5mm
STEER TUBEÂ LENGTH: 6.7″/171mm
DROPÂ OUTS: 20mm, laser cut through hole for 20mm axle hubs
Â
J&RÂ Helpful Hint:Â As with any major installation, J&RÂ always recommends having forks installed by a professional.
Â
Rider Weight Limit:Â NONE
Â
Weight: 34oz /94g
