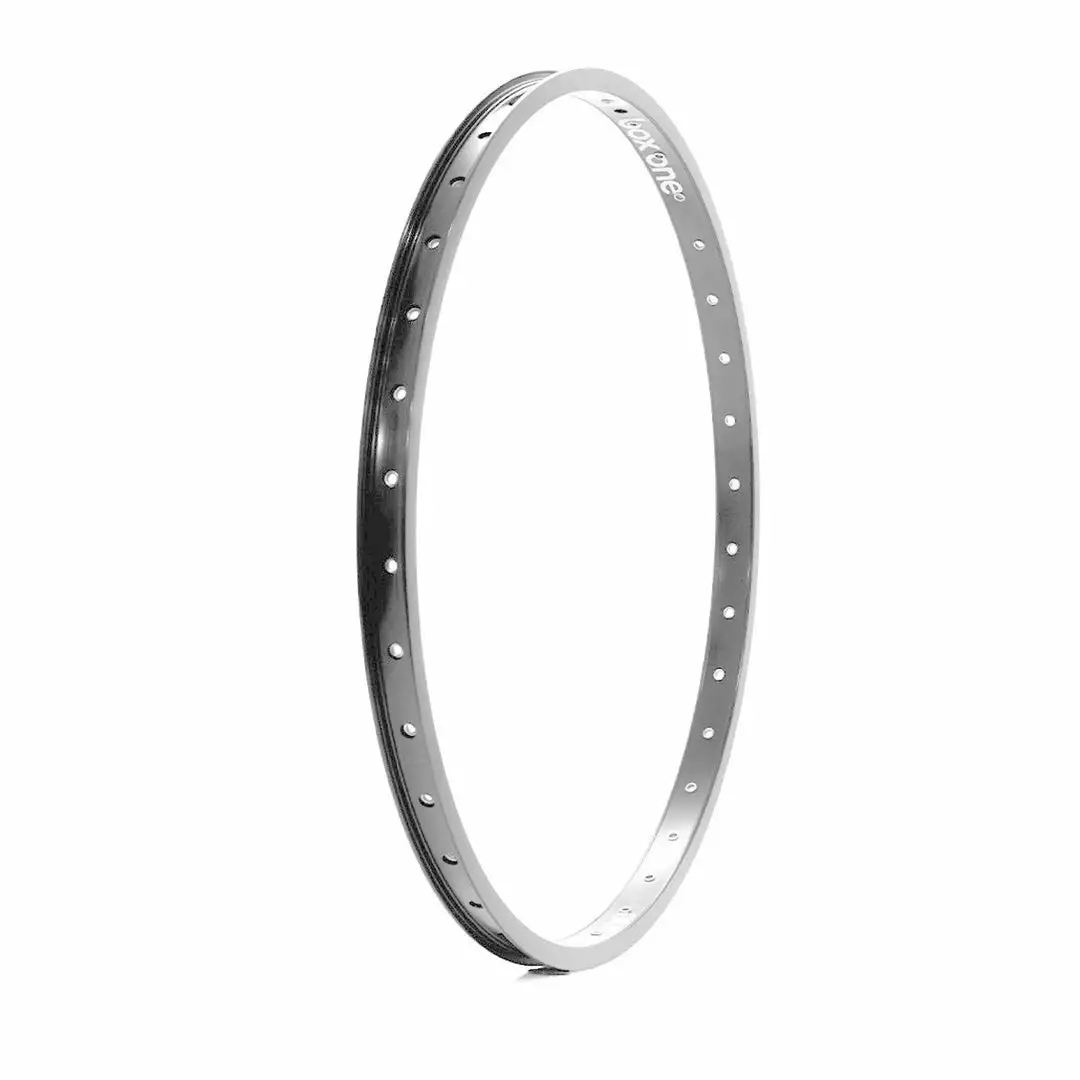

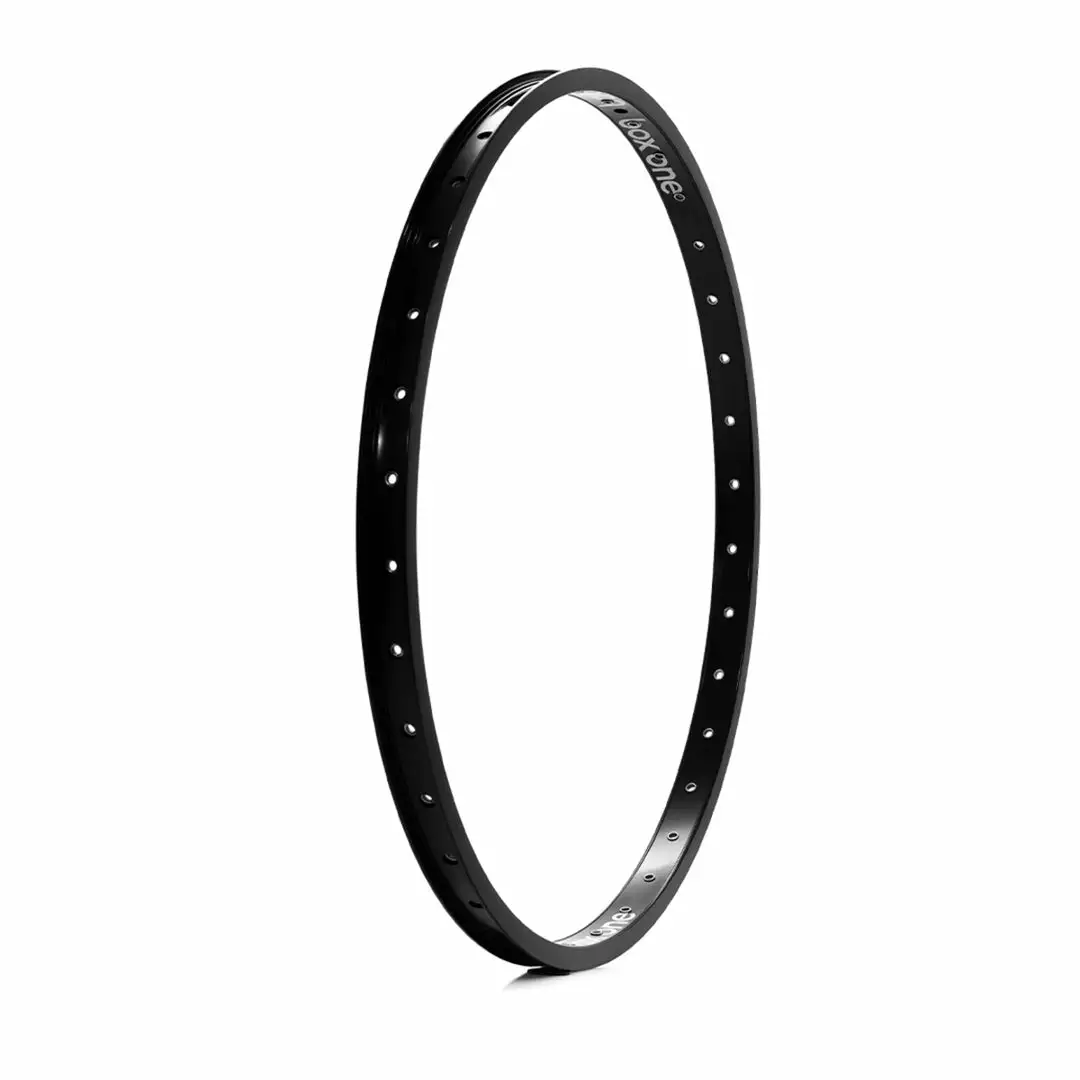

Rims Box One 507 Rim – Rear – 36H – 24×1.75″

The Box One 507 Rim – Rear – 36H – 24×1.75″ is as low-profile as it gets. All the better to be lightweight and speedy. Featuring double walled aluminum, eyeleted construction. This rim does have a sidewall braking surface, so it can and should be used on the rear of your bike.

FEATURES

• Optimized Internal Geometry
• Machined Brake Track
• Stainless Steel Eyelets
• Brake (Rear) and Brake-Less (Front) Profiles
• Low Profile Design
• Schrader Valve Hole

COMPATIBILITY

• Box One X2 Pro Carbon 1 1/8″ cro-mo steerer 24″ X 20mm fork
• Box One X5 Pro Carbon 1.5″ to 1 1/8″ alloy steerer 24″ X 20mm fork
• Box One XL Pro Lite Carbon 1 1/8″ alloy steerer 20” X 10mm fork
• Box One X Pro Carbon 1-1/8″ cro-mo steer 24″ X 10mm fork
• Box One Quantum Hubset 36h Black

SPECIFICATIONS

• WEIGHT: 432g
• HOLE DRILLING: 36
• INTERNAL RIM WIDTH: 22.5mm
• EXTERNAL RIM WIDTH: 28mm
• RIM HEIGHT: 14.5mm
• ERD: 494
• MATERIAL: 6061 Aluminum
• BEAD DIAMETER: 507mm
