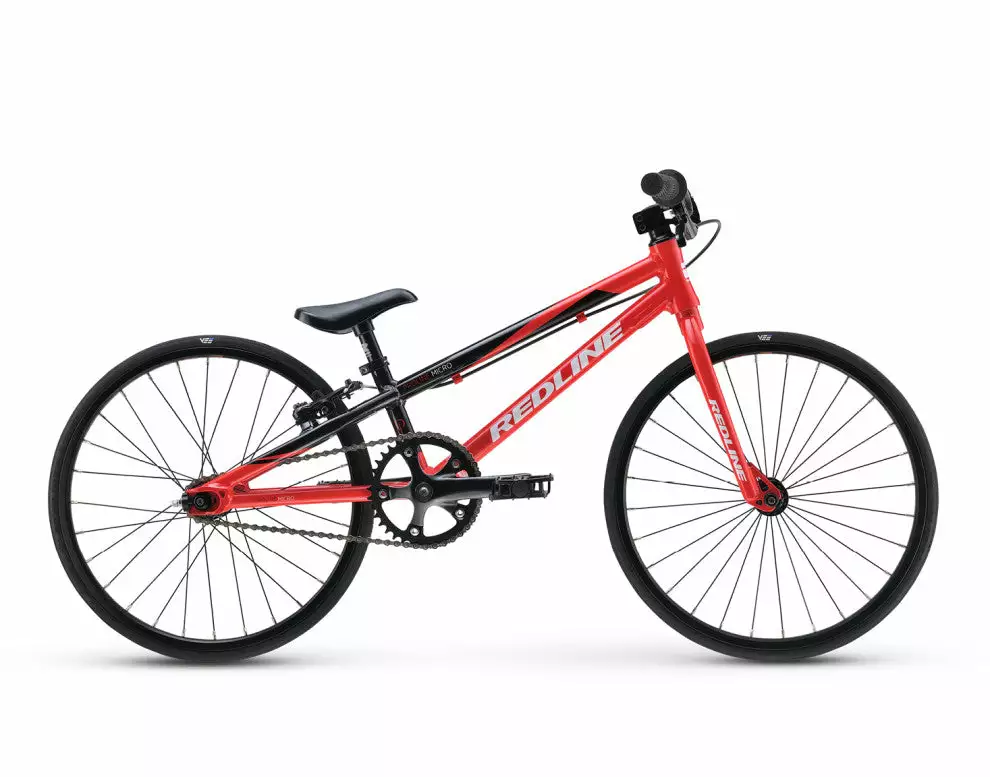

Redline Proline Micro Bike-Red

Our smallest Proline for the littlest racer. Proprietary Redline formed 6061-T-6 alloy frame sized perfect for the young rider to hit the track with.

KEY FEATURES

• Redline Proprietary 6061 T6 Alloy Formed Tubing, Integrated HT, Euro BB
• RL Micro Fork 100% Full Chromo steerer with Tapered Legs
• Alloy 3pc Cranks
• RedlineMicrolineSeat/Postcombo
• Vee Speedster 18″ x 1″ tires

Top Tube	16.5″
Head Angle	72˚
Seat Angle	69˚
BB Height	9.2″
Chainstay	11″ – 12″

Frame	Redline Proprietary 6061 T6 Alloy Formed Tubing, Machined BB, Integrated HT, Euro BB
Fork	RL Chromo 1″steer tube, tapered legs
Colors	Gloss Red
Headset	Integrated 1 “Headset
Stem	RL Mini Aluminum HollowPoint 40mm
Handlebar	RL Micro Aluminum 1.5″ 10¡ Back x 2¡ Up
Grips	RL Mini Hex Grips
Seat	RL Microline Seat/Post Combo 22.2 Aluminum post
Seat Post	RL Microline Seat/Post Combo 22.2 Aluminum post
Seat Post Clamp	Redline Proline Aluminum 25.4mm
Rims	Sun M13II 28h
Front Hub	Redline Aluminum Fully Sealed
Rear Hub	Redline Aluminum, Cassette , Fully Sealed
Spokes	Black, Stainless Steel
Tires	Vee Speedster 18 X 1″
Crankset	Alloy 3pc 130mm,Cranks,
Bottom Bracket	Sealed Euro BB
Pedals	Redline Jr Aluminum Platform / Chromo Spindle
Brake	Tektro 926AL Linear
Brake Lever	Tektro
Chain	KMC Z33
Gearing	38/14
Extras	Redline Chain Tensioners
Bicycle Weight	12 lbs 12 oz (without pedals)
