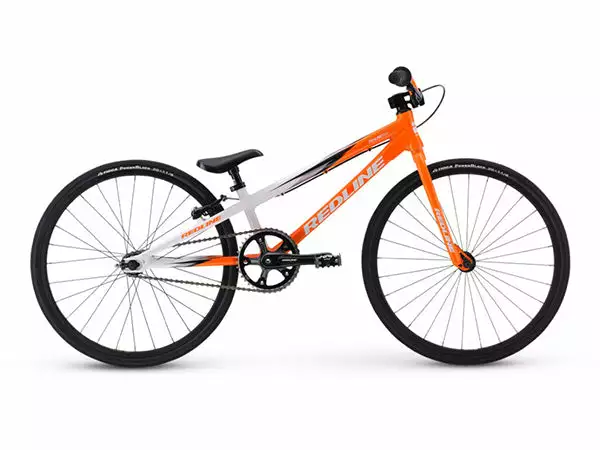

Redline Proline BMX Bike-Mini-Orange

For the rider looking to get serious about racing. Proprietary Redline formed 6061-T-6 alloy frame, sealed hubs and 100% Chromoly butted and tapered race fork for performance and value that is top of the class.

KEY FEATURES

• Redline Proprietary 6061 T6 Alloy Formed Tubing, Integrated HT, Euro BB
• RL Mini Fork 100% Full Chromo Steerer with Tapered Legs
• Redline Fully Sealed Aluminum Rear Cassette Hub, Fully Sealed Front Hub
• Redline Microline 3pc, Cranks
• Redline Microline Seat/Post combo
• Tioga Power Block tires

FRAME SPECS:

• Toptube Length: 17.5″
• Head Angle: 72
• Seat Angle: 69
• BB Height: 10.5″
• Chainstay: 12.5″ – 13.5″

RECOMMENDED RIDER HEIGHT:

3′ 10″ – 4′ 8″

Frame	Redline Proprietary 6061 T6 Alloy Formed Tubing, Machined BB, Integrated HT, Euro BB
Fork	RL Chromo 1″ steer tube, tapered legs
Colors	Gloss Orange/White
Headset	Integrated 1″ Headset
Stem	RL Mini Aluminum HollowPoint 40mm
Handlebar	RL Mini Aluminum 2.5″ 10˚ Back x 2˚ Up
Grips	RL Mini Hex Grips
Seat	RL Microline Seat/Post Combo 22.2 Aluminum post
Seat Post	RL Microline Seat/Post Combo 22.2 Aluminum post
Seat Post Clamp	Redline Proline Aluminum 25.4mm
Rims	Sun M13II 28h
Front Hub	Redline Aluminum Fully Sealed
Rear Hub	Redline Aluminum, Cassette , Fully Sealed
Spokes	Black, Stainless Steel
Tires	Tioga PowerBlock 20 x 1-1/8″ Tires
Crankset	Redline Microline 3pc 140mm,Cranks
Bottom Bracket	Sealed Euro BB
Pedals	Redline Jr Aluminum Platform / Chromo Spindle
Brake	Tektro 926AL Linear
Brake Lever	Tektro
Chain	KMC Z33
Gearing	38/14
Extras	Redline Chain Tensioners

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture’s warranty. Manufacture’s warranties differ for every brand. You can check the brand’s website for warranty information.
