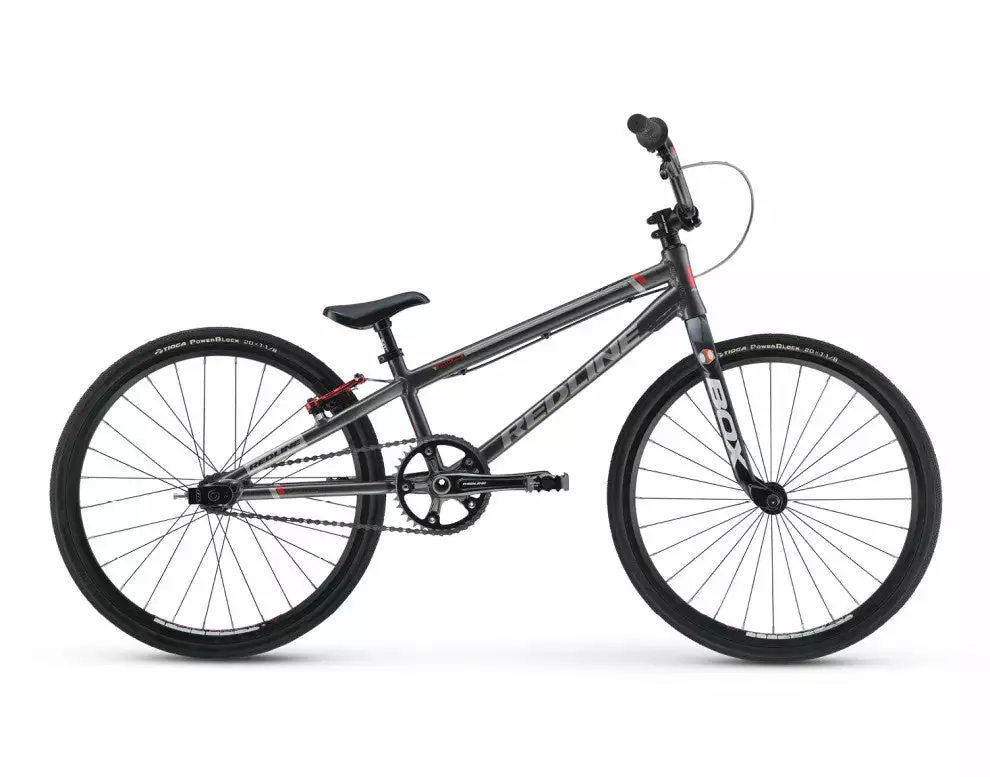

Redline Flight Junior Bike-Gray

Engineered and designed for the smaller rider to win races. Redline Proprietary R6 formed tubing, winning geometry and careful selection of components make the Flight Junior a winner out of the box.



KEY FEATURES

• Redline Microline 2pc 6061 Aluminum Cranks
• BOX Mini Carbon “XS” Carbon Forks
• Alienation Ankle Biter Rims
• Flight Alum SB Cassette w/Hollow Chromo Axle
• PromaxMV-88, 85mmBrakes
• TiogaPowerBlockTires



Top Tube	18.5″
Head Angle	73˚
Seat Angle	69˚
BB Height	10.8″
Chainstay	13″ – 14″

Frame	RL R6 Formed Tubing, Machined BB, Integrated 1″ Headtube
Fork	BOX Mini Carbon “XS”
Colors	Gloss Gray
Headset	FSA Orbit IS 1″Sealed
Stem	RL Microline Forged Aluminum , Laser etched, 40mm , Cromo Allen bolts
Handlebar	RL Junior 6061 T-6 Aluminum, 24″ W x 4.5″ T, 10¡ back , 2¡ up
Grips	Redline Mini Hex
Seat	RL Microline Integrated Saddle post combo 22.2mm
Seat Post	RL Microline Integrated Saddle post combo 22.2mm
Seat Post Clamp	Redline Flight 25.4mm
Rims	Alienation Ankle Biter, 28h
Front Hub	Flight Alum SB w/Hollow Flight Axle & Race Skewer
Rear Hub	Flight Alum SB Cassette w/Hollow Chromo Axle
Spokes	Stainless Steel 15G
Tires	Tioga PowerBlock 20 x 1-1/8″
Crankset	RL 155mm Microline 2pc Forged 6061 Aluminum
Bottom Bracket	External Sealed Euro BB
Pedals	Redline Jr. Aluminum Platform / Chromo Axle
Brake	Promax MV-88, 85mm , Directional cartridge pads
Brake Lever	RL Spec
Chain	KMC HP6L Hollow Plate
Gearing	37/14
Extras	Redline Chain Tensioners
Bicycle Weight	13 lbs 11 oz.(without pedals)
