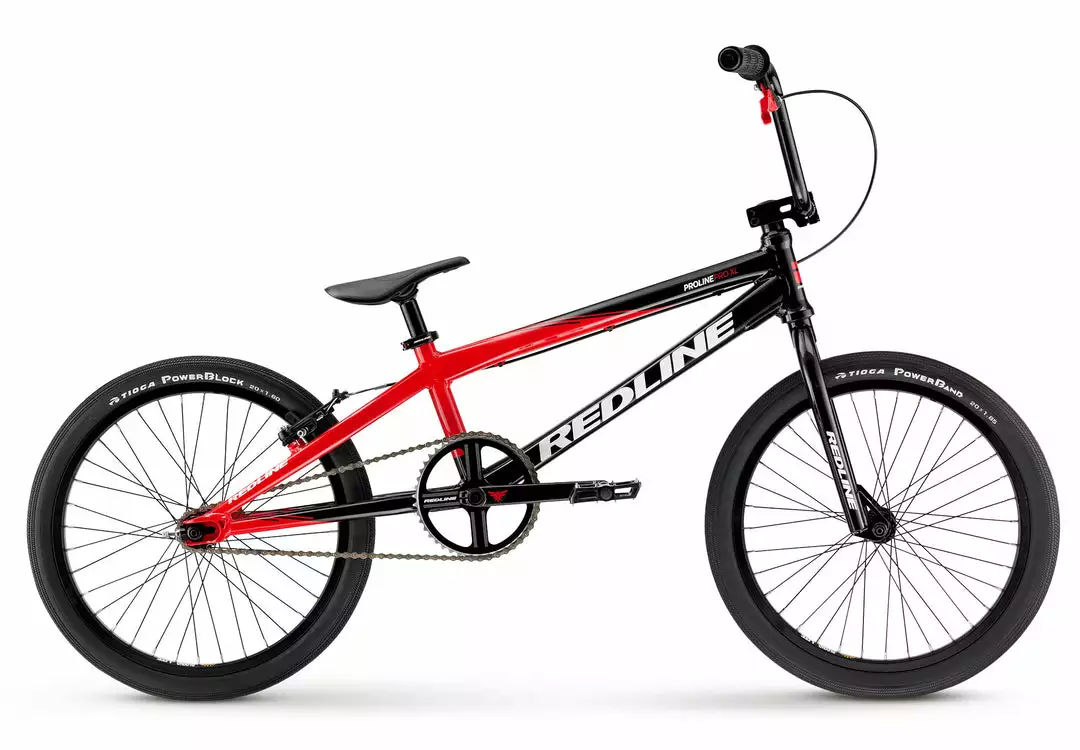

RACE BIKES Redline Proline Race Bike-Pro XL

The Proline Pro XL gets a new 6061-T6 alloy formed frame, sealed hubs and a 100% Chromoly, butted and tapered race fork. Expert level bike for an intermediate price.

KEY FEATURES

• Redline formed 6061-T6 frame tubing, w/ integrated headtube
• Redline alloy sealed bearing cassette hub w/ hollow chromo axle
• Flight 3 piece cranks, heat treated tubular chromoly, with19mm x 6 spline hollow chromoly spindle
• 20” Sun Rhyno Lite alloy rims w/ Tioga 20 x 1.85 Powerband(F) and 20 x 1.75(R) Powerblock tires

Head Angle	74˚
Seat Angle	70˚
Top Tube	21″
Chain Stay	15.3″
BB Height	11.5″
Standover	22.5″

Frame	6061 T6 Alloy Formed Tubing, Machined BB, Integrated HT, Euro BB
Fork	RL 100% Full Chromo, Multi Butted with Tapered Legs
Colors	Gloss Black/White
Headset	Integrated Headset 1 1/8, Aluminum top cap
Stem	RL Aluminum HollowPoint 50mm
Handlebar	RL Pro Chromo 8″ 12˚ Back, 1˚ Up
Grips	RL Pro Hex Grips
Seat	Pivotal No padding
Seat Post	Aluminum Pivotal 26.8mm
Seat Post Clamp	Redline Quick Release Aluminum 31.8mm
Rims	Sun Rhyno Lite
Front Hub	Redline Aluminum Fully Sealed
Rear Hub	Redline Aluminum, Cassette , Fully Sealed
Spokes	Black, Stainless Steel
Tires	Tioga PowerBand F. 20 x 1.85″ / PowerBlock R. 20 x 1.75″ Tires
Crankset	RL Flight Cranks 180mm
Bottom Bracket	Sealed Euro BB
Pedals	RL Aluminum 9/16″ Platform
Brake	Tektro 930AL Linear
Brake Lever	Tektro
Chain	KMC Z33
Gearing	44/16
Extras	Redline Chain Tensioners
Weight	20 lbs 13 oz (without pedals)
