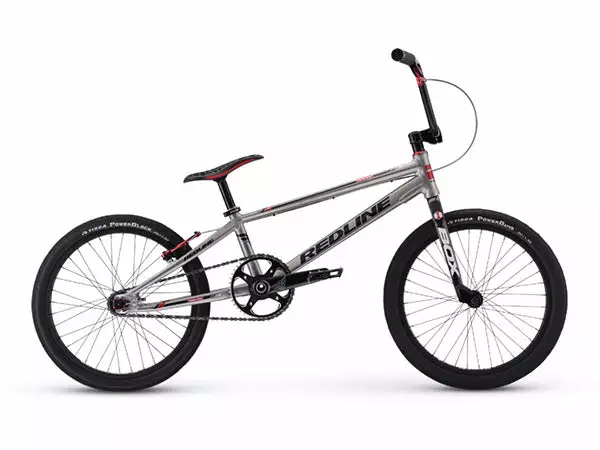

RACE BIKES Redline Flight BMX Bike-Pro XXL-Gray

The R7 frame with result proven geometry has been engineered for the rigors specific to high level BMX racing. Proprietary Redline formed R7 tubing, press-fit BB -86, Redline convertible dropouts and combined with top of the line components, creates the most technically advanced alloy race bike on the market today. No gimmicks, just winning.

KEY FEATURES

• Redline Flight AL Hollow Forged Cranks w/24mm Chromo Spindle
• BOX Pro Carbon “X” w/ Chromo Steer and 3/8 dropout
• Alienation Malice Rims – Tubeless Compatible
• Redline Flight 120 Instant Cassette Hub w/15mm Through Axle
• Promax TX-131 Brakes w/Grip Integrated Lever
• Tioga Power Block Tires

FRAME SPECS:

• Toptube Length: 21.7″
• Head Angle: 74
• Seat Angle: 70
• BB Height: 11.5″
• Chainstay: 14.75″ – 16″

RECOMMENDED RIDER HEIGHT:

5′ 10″+

Frame	Redline Proprietary R7 Formed and Butted Tubing. Integrated HT, Press-Fit BB-86, Convertible Dropouts
Fork	BOX Pro Carbon “X” w/ Chromo Steer and 3/8 dropout
Colors	Gloss Gray
Headset	FSA Poly Carbonate Integrated 1 1/8″
Stem	RL Flight Forged+CNC Aluminum, 55mm w/M8 Bolts
Handlebar	RL Pro Cromo, 28.25″ W x 8.25″ T, 12˚ Back, 1˚ up
Grips	RL Flight Locking 145mm
Seat	Tioga D-Spyder S-Spec Pivotal
Seat Post	RL Spec Aluminum Pivotal, Micro Adjust, 26.8mm
Seat Post Clamp	Integrated QR
Rims	Alienation Malice, 36H – Tubeless Compatible
Front Hub	Flight, Alum SB w/ Chromo Axle
Rear Hub	Flight 120 Instant Cassette Hub, Alum, SB, 15mm Through Axle
Spokes	Stainless Steel 14G
Tires	Tioga PowerBand (F) 20 x 1.85″ / PowerBlock (R) 20 x 1.75″
Crankset	Flight AL 180mm, Hollow Forged, 24mm Hollow Chromo Spindle
Bottom Bracket	Sealed Press-Fit BB86
Pedals	RL Spec Aluminum Platform 9/16
Brake	Promax TX-131, 108mm , Directional cartridge pads
Brake Lever	Promax w/ Lock-on grip Integration
Chain	KMC Z610HX
Gearing	44/16
Extras	3/8 and 15mm Chain Adjusters

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture’s warranty. Manufacture’s warranties differ for every brand. You can check the brand’s website for warranty information.
