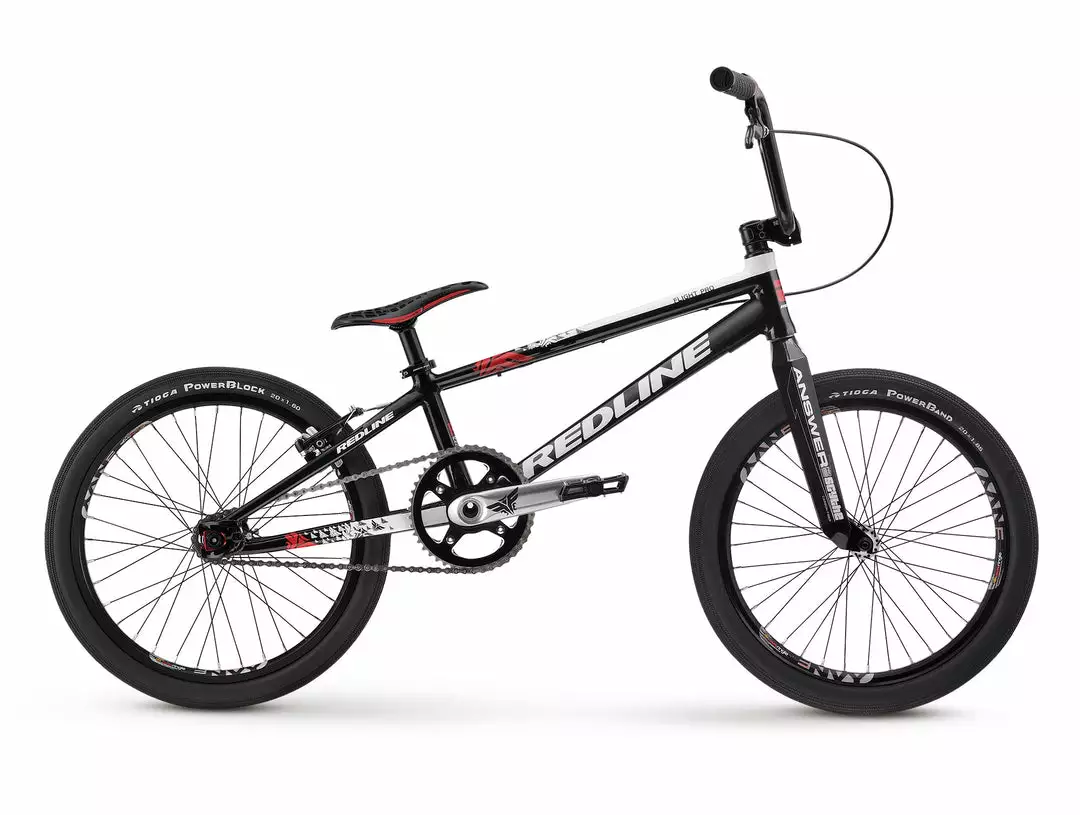

RACE BIKES Redline Flight BMX Bike-Pro

Redline specific formed R7 tubing, bell shaped seat tube, press fit BB -86, and integrated seat post clamp. New Redline convertible dropouts allow the use of 15mm through axle or standard 3/8. The new Flight Pro is a game changer.

FRAME SPECS:

• TOP TUBE LENGTH 20.5
• CHAINSTAY LENGTH 14.4
• BB HEIGHT 11.3
• SEAT TUBE ANGLE 70˚
• HEAD TUBE ANGLE 74˚

RECOMMENDED RIDER HEIGHT:

5′ – 5′ 8″

Frame	RL R7 Formed and Butted Tubing,Integrated HT, BB-86, Convertible Dropouts
Fork	Answer Scythe Pro Carbon Fiber Fork
Colors	Gloss Black/White
Headset	FSA Impact Integrated 1 1/8″
Stem	RL Flight Forged+CNC Aluminum , 50mm W/M8 Bolts
Handlebar	RL Pro Cromo, 28.5″ W x 7.5″ T, 12¡ Back, 1¡ up ,
Grips	RL Flight Locking 145mm
Seat	Tioga D-Spyder S-Spec Pivota
Seat Post	RL Spec Aluminum Pivotal, Micro Adjust, 26.8mm
Seat Post Clamp	Integrated
Rims	Sun Envy 36H
Front Hub	Flight, Alum SB w/ Chromo Axle
Rear Hub	Flight 15 Instant Cassette Hub, Alum, SB, 15mm Through Axle
Spokes	Stainless Steel 14G
Tires	Tioga PowerBand (F) 20 x 1.85″ / PowerBlock (R) 20 x 1.75″ Tires
Crankset	Flight AL 175mm, Hollow Forged, 24mm Hollow Chromo Spindle
Bottom Bracket	Sealed Press-Fit BB86
Pedals	RL Spec Aluminum Platform 9/16
Brake	RL Spec Aluminum 85mm Linear , Directional cartridge pads
Brake Lever	Tektro
Chain	KMC HP6L Hollow Plate
Gearing	44/16
Extras	3/8 and 15mm Chain Adjusters
Weight	19 lbs 4 oz (without pedals)
