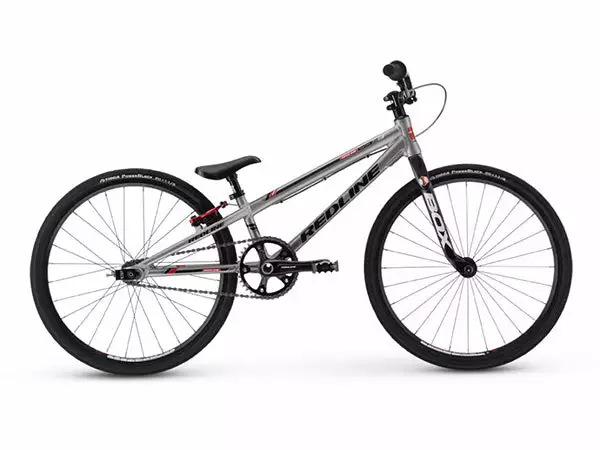

RACE BIKES Redline Flight BMX Bike-Mini-Gray

FRAME SPECS:
Toptube Length: 17.5″
Head Angle: 72
Seat Angle: 69
BB Height: 10.5″
Chainstay: 12.5″ – 13.5″

RECOMMENDED RIDER HEIGHT:  3′ 10″ – 4′ 8″



Frame	RL R6 Formed Tubing, Machined BB, Integrated 1″ Headtube
Fork	BOX Mini Carbon “XS”
Colors	Gloss Gray
Headset	FSA Orbit IS 1″Sealed
Stem	RL Microline Forged Aluminum , Laser etched, 40mm , Cromo Allen bolts
Handlebar	RL Mini 6061 T-6 Aluminum, 22″ W x 2.5″ T, 10˚ back , 2˚ up
Grips	Redline Mini Hex
Seat	RL Microline Integrated Saddle post combo 22.2mm
Seat Post	RL Microline Integrated Saddle post combo 22.2mm
Seat Post Clamp	Redline Flight 25.4mm
Rims	Alienation Ankle Biter, 28h
Front Hub	Flight Alum SB w/Hollow Flight Axle & Race Skewer
Rear Hub	Flight Alum SB Cassette w/Hollow Chromo Axle
Spokes	Stainless Steel 15G
Tires	Tioga PowerBlock 20 x 1-1/8″
Crankset	RL 140mm Microline 2pc Forged 6061 Aluminum
Bottom Bracket	External Sealed Euro BB
Pedals	Redline Jr. Aluminum Platform / Chromo Axle
Brake	Promax MV-88, 85mm , Directional cartridge pads
Brake Lever	RL Spec
Chain	KMC HP6L Hollow Plate
Gearing	37/14
Extras	Redline Chain Tensioners

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture’s warranty. Manufacture’s warranties differ for every brand. You can check the brand’s website for warranty information.
