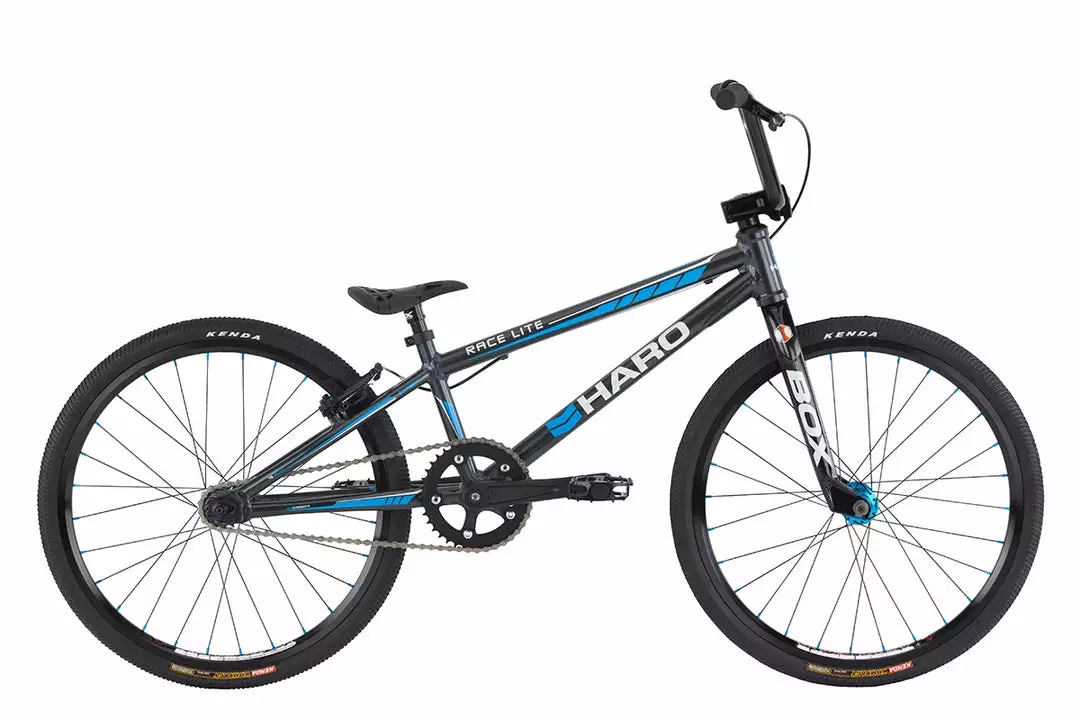

PRODUCT DETAILS
- 6061 series alloy frame with integrated head tube, butted down tube, tapered chain stays, 3D dropouts with integrated chain tensioners and 18.9″ top tube
- Box Expert XE Carbon fork with 1″ alloy steer tube
- Expert 6.75″ rise alloy bars and Haro CNC alloy front load stem
- 3-piece 170mm alloy race cranks with sealed Euro BB
- 28-spoke sealed wheels with 20″ Alienation Ankle Biter rims, 15t cassette rear hub and alloy nipples
- Promax Click clamp on grips
- Promax “P-1” V-brake and “V-Point” brake lever
- Kenda Kompact 20×1-3/8″ tires
- Box Echelon plastic seat/carbon seat post combo
| Geometry | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
| Inches | 73° | 71° | 18.87 | 9.17 | 13.75 | 11 | 19.5 |
| MM | 73° | 71° | 479.5 | 233 | 349 | 280 | 495.3 |
Â
| Frame Components | |
| Frame | 6061 alloy with integrated head tube – 18.9″ TT. |
| Fork | Box XE Expert Carbon fork with 1″ alloy steer tube |
| Colors | SG Metallic Grey, |
| Drivetrain | |
| Cranks | 3pc Alloy race 170mm / Sealed bearing Euro BB |
| Gearing | 38/15 |
| Pedals | Mini DX Alloy |
| Wheels | |
| Tires | Kenda “Kompact” K1054 20×1 3/8″ |
| Hubs | 28h Alloy Shell sealed bearing; 28h Alloy Shell sealed bearing cassette |
| Rims | Alienation Ankle Biter alloy 28H |
| Braking System | |
| Rotor | N/A |
| Other Components | |
| Grips | Promax Click clamp on grip 100mm |
| Handle Bar | Alloy 6.75″ rise / Haro CNC Alloy front load 45mm ext |
| Seat | Box Echelon plastic seat/carbon post combo 22.2mm |
| Pegs | N/A |
Additional Information
| Barcode | 135450 |
|---|---|
| Special Shipping Group | No |
//
