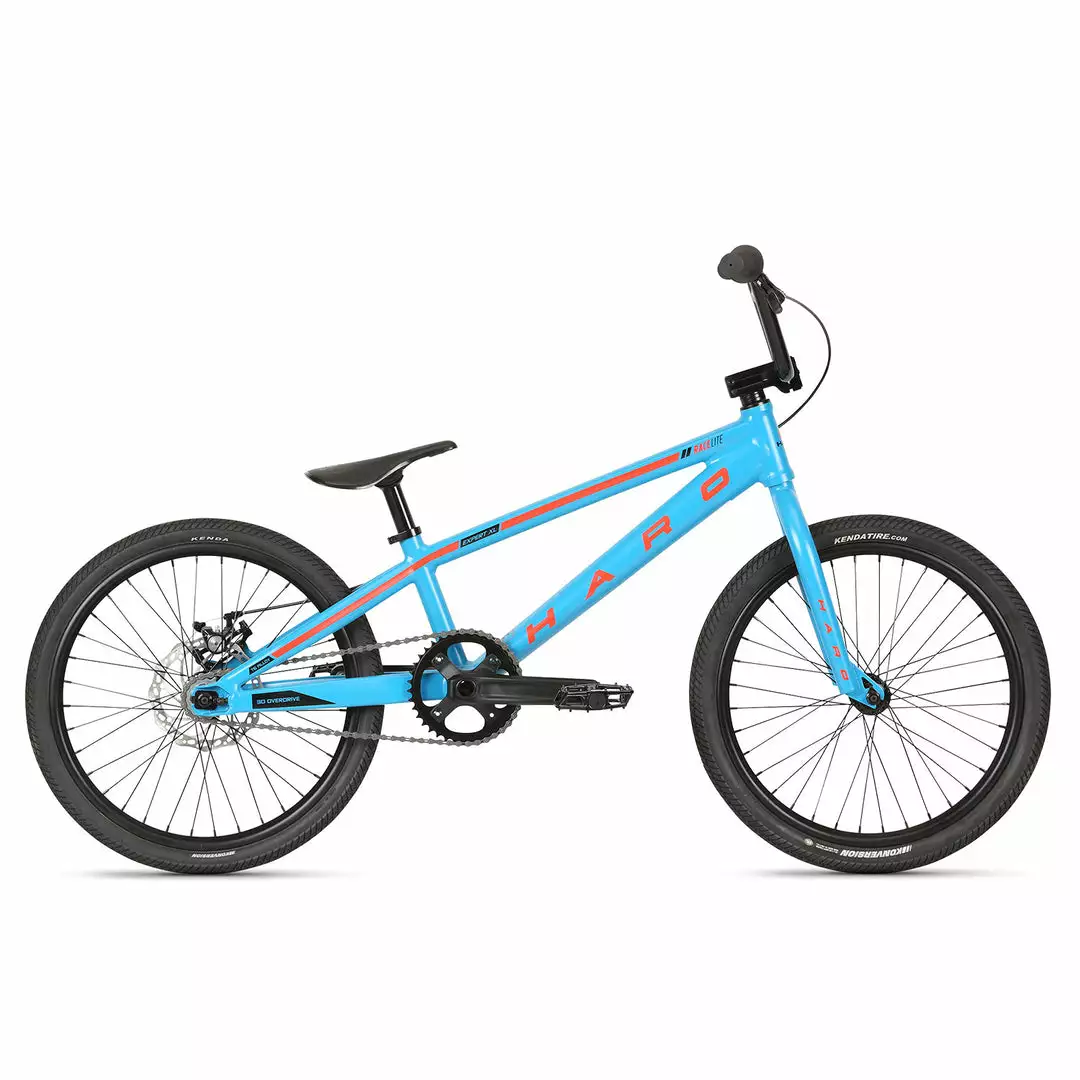

RACE BIKES Haro Racelite Expert XL BMX Race Bike-Blue

The Haro Racelite Expert XL BMX Race Bike-Blue is from Haro’s Racelite line of mid-level complete bikes at lower-level price points. Featuring a 6061, smooth weld, alloy frame, Promax braking, and Kenda tires, this bike provides a top-notch out of box experience that will get you out on the track with minimal levels of stress.

FEATURES

• 6061 series smooth weld alloy frame with integrated head tube, internal cable routing, 3D dropouts with integrated chain tensioners
• PTC (Power Transfer Center), triple butted air formed top tube, over sized triple butted down tube and BB86 bottom bracket shell
• 100% chromoly fork
• Alloy bars and Haro CNC alloy front load stem
• 2-piece alloy cranks with sealed press fit BB86
• Fully sealed wheels with double wall alloy rims, a sealed rear cassette hub and alloy nipples
• Kenda Konversion tires
• Plastic Pivotal seat with alloy post
• Promax mechanical disc brake, 160mm rotor

SPECIFICATIONS

• FRAME: 6061 Series Alloy Frame w/ Integrated Headtube, Internal Cable Routing & Smooth Welding
• FORK: Full Cr-Mo 1 1/8″ Threadless w/ Tapered Legs
• COLOR: Blue
• WEIGHT: 19.4 lbs
• CRANKS: 2-pc Alloy w/ 24mm Hollow Spindle, 170mm
• BOTTOM BRACKET: Press-Fit BB86, Sealed Bearing
• SPROCKET: 38t Alloy
• GEARING: 38/15
• PEDALS: DX Alloy, 9/16″
• CHAIN: KMC Z33
• TIRES: Kenda “Konversion” 20 x 1.65″ Front / 20 x 1.50″ Rear
• FRONT HUB: Low Flange Alloy 36h, Sealed Bearing
• REAR HUB: Alloy Disc Cassette 36h, Sealed Bearing, 6-Bolt
• AXLE: 3/8″
• RIMS: 20″ Alloy 36h, Double Wall
• BRAKE: Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
• BRAKE LEVER: Promax XL-373 Two Finger
• GRIPS: Mini Micro-Knurl Grips
• HANDLE BAR: Alloy Bar, 6.5″ Rise
• STEM: Forged Alloy Top-Load, 45mm Ext.
• HEADSET: Sealed Internal 1 1/8″
• SEAT: Haro Slim Plastic Pivotal
• SEAT POST: Alloy Pivotal, 27.2mm
• SEAT POST CLAMP: Alloy, 31.8mm

GEOMETRY

• Size: 20
• A. Head Angle: 73°
• B. Seat Angle: 70°
• C. Top Tube: 20 (507 mm)
• D. Seat Tube: 8.8 (224 mm)
• E. Chainstay: 13.9 (352 mm)
• F. BB Height: 11 (280 mm)
• G. Stand Over: 19.5 (495.3 mm)
