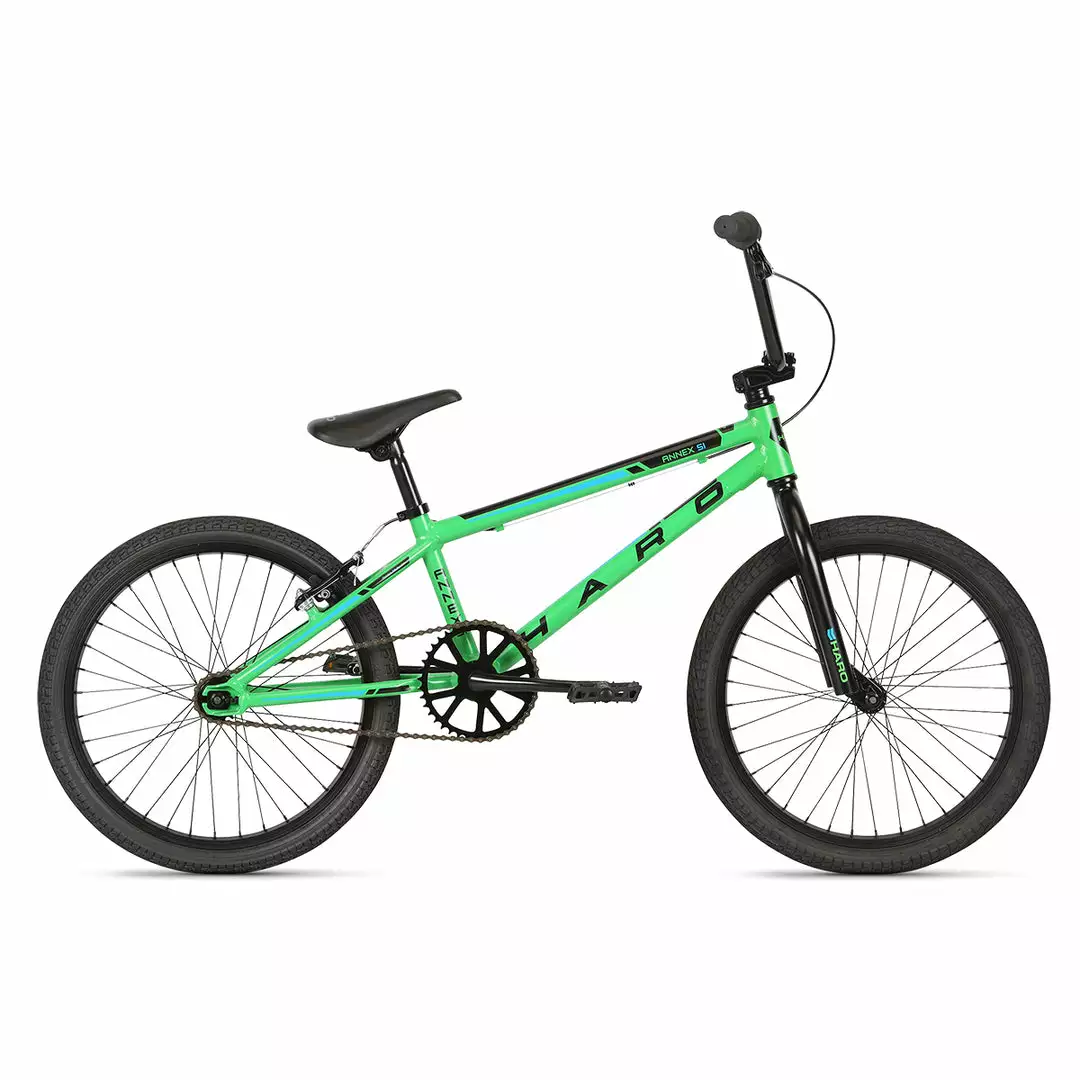

RACE BIKES Haro Annex Si Pro BMX Race Bike-Matte Green

SPECIFICATIONS

• FRAME: 6061 Series Alloy Frame w/ 3D Dropouts w/ Built In Chain Tensioners
• FORK: Hi-Ten 1 1/8″ Threadless
• COLORS: Black, Matte Green
• WEIGHT: 22.3 lbs
• CRANKS: Steel 1-pc, 165mm
• BOTTOM BRACKET: Loose Ball American BB
• SPROCKET: 40t Steel
• GEARING: 40/16
• PEDALS: Nylon, 1/2″
• CHAIN: KMC 410
• CASSETTE: 16T Freewheel
• TIRES: Kenda “Kontact” 20 x 1.95″ Front / 20 x 1.75″ Rear
• FRONT HUB: 36H Steel, Loose-ball
• REAR HUB: 36H Steel, Loose-ball
• AXLE: 145mm Front, 165mm Rear
• RIMS: 20″ Alloy 36h, Single Wall
• BRAKE: Promax MV-295L Alloy V-Brake
• BRAKE LEVER: Promax XL-378 Alloy Lever
• GRIPS: Micro Knurl Grips
• HANDLE BAR: Hi-Ten, 7.5″ Rise
• STEM: Forged Alloy Top-Load, 45mm Ext.
• HEADSET: Threadless Loose Ball, 1 1/8″
• SEAT: Haro Padded Adjustable
• SEAT POST: Steel, 25.4mm
• SEAT POST CLAMP: Alloy, 28.6mm

GEOMETRY

• Size: 20
• A. Head Angle: 74°
• B. Seat Angle: 70°
• C. Top Tube: 19.5 (495 mm)
• D. Seat Tube: 9.8 (250 mm)
• E. Chainstay: 13.9 (352 mm)
• F. BB Height: 11.5 (293 mm)
• G. Stand Over: 21.5 (546 mm)
