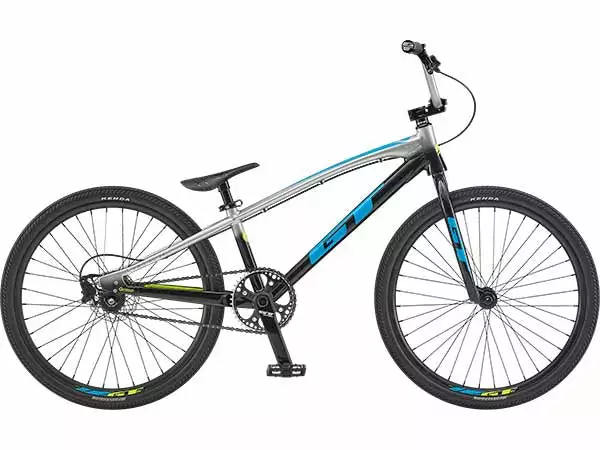

RACE BIKES GT Speed Series Pro 24″ BMX Bike-Fade

A lightweight, stiff frame to help you get the holeshot and take the win.

SPECIFICATIONS

• MODEL CODE: G47200U
• FRAME: GT Speed Series MK7 Elite Race Design, 6061-T6 AL, Alloy Formed and Butted Speed Metal Tubes, AL CNC/Forged Quick Change Disc Dropout System, BB86, Taper 1-1/8″ to 1-1/2″ Integrated H/T
• FORK: GT BMX Pro Race, 100% Cr-Mo 1 1/8″ Steerer, Tapered 31.8×1.2mm Blades, 305mm A/C, 20mm Dropouts
• CHAIN: KMC Z1 Narrow, 3/32″
• CRANK: GT Forged Alloy 2pc., 175mm Arms, 24mm Hollow Cr-Mo Spindle, AL CNC Chain Ring, Alloy Chain Ring Bolts
• BOTTOM BRACKET: BB86 Sealed Bearings
• PEDALS: GT Low Profile FS Platform Design, PP Material, Boron Axle
• COG SET: Cromo
• RIMS: Speed Series Aero, double wall, 36h
• TIRES: Kenda Kompact Pro Race, 24 x 1.75″
• WHEELS SIZE: 24″
• FRONT HUB: GT Speed Series, Alloy CNC body, Sealed Bearings, 36h, 20mm Alloy Thru Axle
• SPOKES: Stainless Steel, 14g
• BRAKES: Promax Hydro Disc Rear, 140mm Rotor (Rear Only)
• BRAKE LEVERS: Promax Hydro Disc Rear, 140mm Rotor (Rear Only)
• HANDLEBAR: GT Speed Cr-Mo Cruiser with Taper Cross Bar
• STEM: Promax Impact Top Load, 53mm
• GRIPS: GT Statement Double Lock-on Grips
• HEADSET: 1-1/8″-1.5″ Taper Integrated Design, 45X45 Degree Sealed Bearings
• SADDLE: BOX Echelon
• SEAT POST: Alloy integrated w/ Saddle, 27.2 x 135mm

GEOMETRY

1. SEAT TUBE LENGTH: 10.6
2. TOP TUBE ACTUAL: 21.75
3. HEAD TUBE ANGLE: 73.0°
4. SEAT TUBE ANGLE: 70.0°
5. HEAD TUBE LENGTH: 5.0
6. WHEELBASE: 39.0
7. FRONT CENTER: 23.5
8. CHAIN STAY LENGTH: 15.43
9. BB DROP: 0
10. BB HEIGHT: 12
11. FORK RAKE: 1.3
