Prophecy Scud Evo Carbon BMX Race Frame-Matte Carbon/Red FRAMES

The Prophecy Scud Evo Carbon Race Frame-Matte Carbon/Yellow features 3K carbon layer tubing with new full rear carbon dropouts. The carbon BMX frame also features an internal cable routing system and a CNC machined aluminum quick release seat clamp that is specifically designed for use on carbon frames.

FEATURES

• 3K layer carbon frame
• Aluminum Euro bottom bracket shell
• Designed for 1-1/8″ internal (semi-integrated) headset

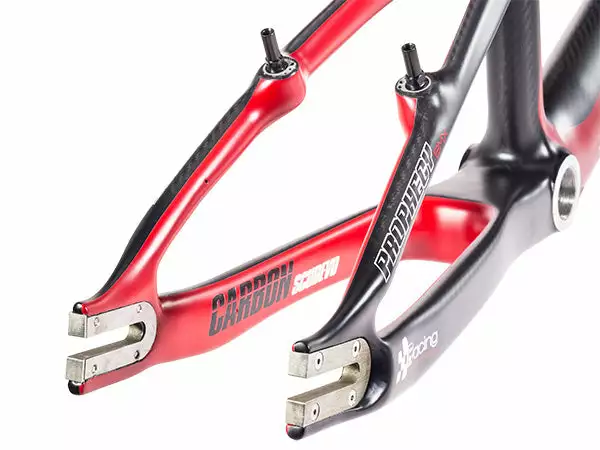

• 10mm (3/8″) dropouts with steel plates to protect the frame and create a sturdy surface to mount wheel

SPECIFICATIONS

• USE: Race
• MATERIAL: 3K Layer Carbon

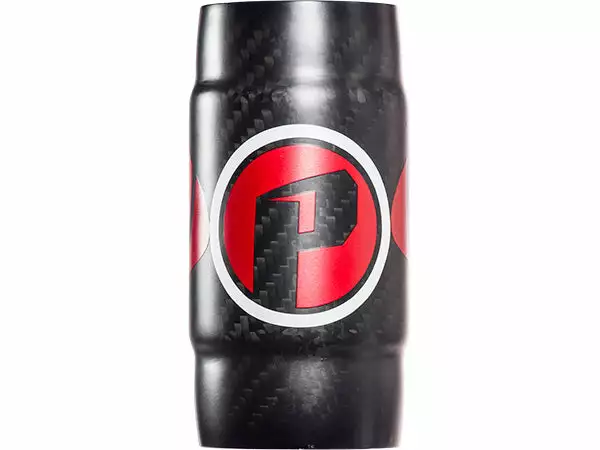

• HEADSET STYLE: Internal (semi-integrated) 1-1/8″
• BRAKE MOUNTS: V-Brake
• BB SHELL: Euro

GEOMETRY

Prophecy Scud Evo Carbon BMX Race Frame-Matte Carbon/Blue Geometry Chart

SIZE	TT	CS	HA	SA	SP	WEIGHT
SIZE: JUNIOR	TT: 18.5″	CS: 13.6″	HA: 73­°	SA: 70°	SP: 25.4mm	WEIGHT: 2.8lbs (44.8oz)
SIZE: EXPERT XL	TT: 20″	CS: 14″	HA: 73­°	SA: 70°	SP: 25.4mm	WEIGHT: 3.0lbs (48.3oz)
SIZE: PRO	TT: 20.67″	CS: 15″	HA: 73.5­°	SA: 71°	SP: 27.2mm	WEIGHT: 3.28lbs (53.4oz)
SIZE: PRO XL	TT: 21.26″	CS: 15.35″	HA: 73­.5°	SA: 71°	SP: 27.2mm	WEIGHT: 3.24lbs (51.9oz)
SIZE: PRO XXL	TT: 21.65″	CS: 15.35″	HA: 73­.5°	SA: 71.5°	SP: 27.2mm	WEIGHT: 3.3lbs (52.85oz)

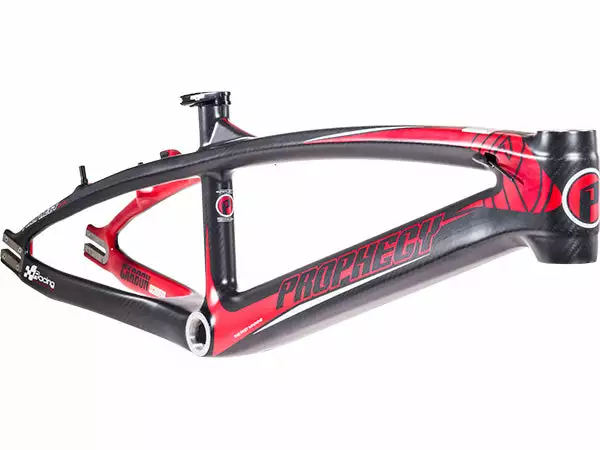

Photo of frame is same model and color but not necessarily the same size.
