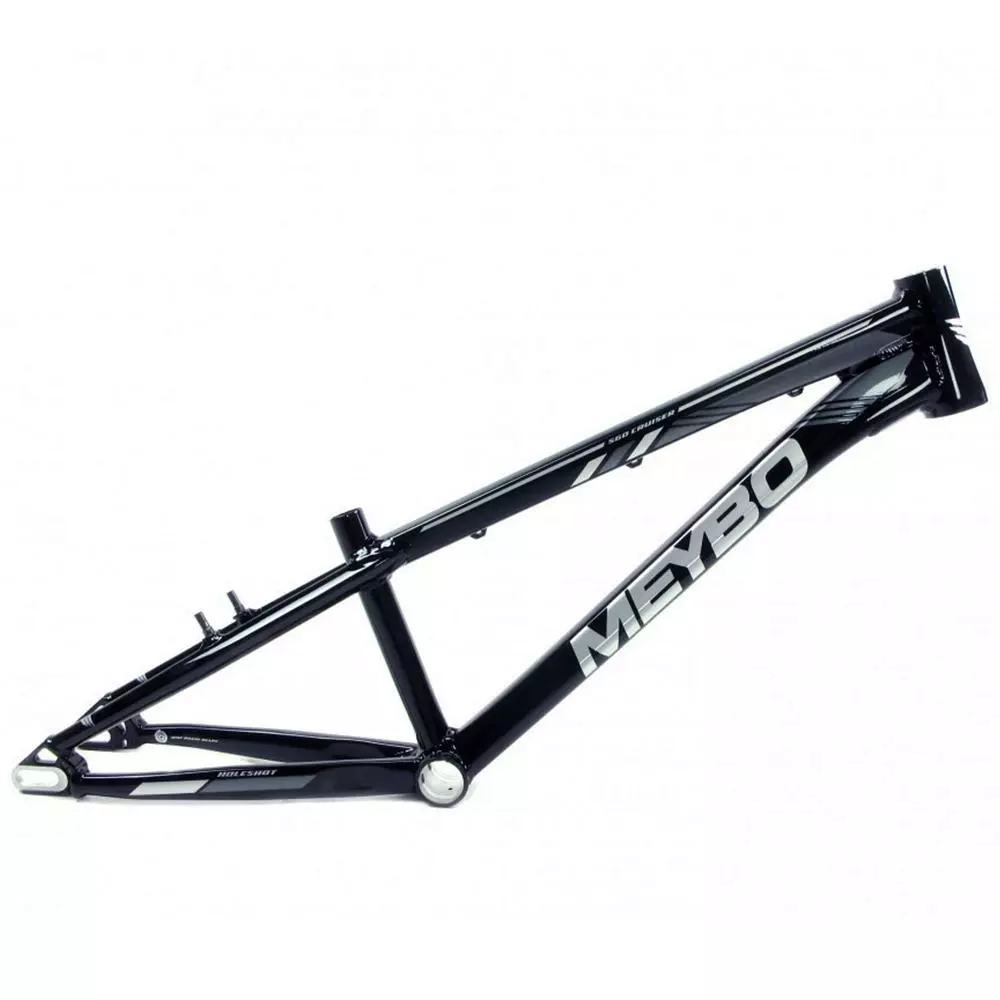

Meybo Holeshot Frame-Black/Light Grey

The Meybo Bicycles Holeshot BMX race frames are constructed out of 6061 T-6 aluminum tubing that is square tapered and multi-butted for the ultimate strength and rigidity while keep the frame light and aggressive.  The Meybo Bicycle line of Holeshot frames are the official race frame of the Dutch National Team and the performance has been proven on tracks around the world.

NOTE:  Please note the specific headset and bottom bracket required for each frame.  The Pro XL frames and larger require the BB30 bottom bracket which are available for your specific crank.  The closed drop outs on these sizes require the use of a female axle hub or a hub with a thru axle.

SIZING

Size	Top Tube	Down Tube	Chainstay	Head Tube Angle	Seat Post Angle	Head Tube	Seat Post	Dropout	Bracket	Weight
Size: Mini	Top Tube: 17.583″	Down Tube: 18.575″	Chainstay: 12.992″	Head Tube Angle: 73.0°	Seat Post Angle: 69.2°	Head Tube: 1″	Seat Post: 22.2mm	Dropout: 10mm	Bracket: EU	Weight: 40.92 oz
Size: Junior	Top Tube: 18.634″	Down Tube: 19.575″	Chainstay: 13.386″	Head Tube Angle: 73.5°	Seat Post Angle: 70.7°	Head Tube: 1″	Seat Post: 22.2mm	Dropout: 10mm	Bracket: EU	Weight: 42.68 oz
Size: Expert	Top Tube: 19.508″	Down Tube: 20.665″	Chainstay: 13.583″	Head Tube Angle: 73.5°	Seat Post Angle: 69.8°	Head Tube: 1 1/8″	Seat Post: 25.4mm	Dropout: 10mm	Bracket: EU	Weight: 48.64 oz
Size: Expert-XL	Top Tube: 20.512″	Down Tube: 21.520″	Chainstay: 13.780″	Head Tube Angle: 73.5°	Seat Post Angle: 71.6°	Head Tube: 1 1/8″	Seat Post: 25.4mm	Dropout: 10mm	Bracket: EU	Weight: 48.84 oz
Size: Pro-L	Top Tube: 20.890″	Down Tube: 21.681″	Chainstay: 14.252″	Head Tube Angle: 74.0°	Seat Post Angle: 73.8°	Head Tube: Tap 1.5″	Seat Post: 27.2mm	Dropout: 15mm	Bracket: BB30	Weight: 54.50 oz
Size: Pro-XL	Top Tube: 21.260″	Down Tube: 21.902″	Chainstay: 14.843″	Head Tube Angle: 74.0°	Seat Post Angle: 74.1°	Head Tube: Tap 1.5″	Seat Post: 27.2mm	Dropout: 15mm	Bracket: BB30	Weight: 57.14 oz
Size: Pro-XXL	Top Tube: 21.732″	Down Tube: 22.240″	Chainstay: 15.197″	Head Tube Angle: 74.0°	Seat Post Angle: 74.4°	Head Tube: Tap 1.5″	Seat Post: 27.2mm	Dropout: 15mm	Bracket: BB30	Weight: 57.57 oz
Size: Pro-XXXL	Top Tube: 22.244″	Down Tube: 22.770″	Chainstay: 15.354″	Head Tube Angle: 74.0°	Seat Post Angle: 75.6°	Head Tube: Tap 1.5″	Seat Post: 27.2mm	Dropout: 15mm	Bracket: BB30	Weight: 58.55 oz
Size: Pro-XXXXL	Top Tube: 22.740″	Down Tube: 23.693″	Chainstay: 15.591″	Head Tube Angle: 74.0°	Seat Post Angle: 76.3°	Head Tube: Tap 1.5″	Seat Post: 27.2mm	Dropout: 15mm	Bracket: BB30	Weight: 59.61 oz
Size: Cruiser	Top Tube: 22.040″	Down Tube: 23.693″	Chainstay: 15.157″	Head Tube Angle: 74.0°	Seat Post Angle: 66.3°	Head Tube: Tap 1.5″	Seat Post: 27.2mm	Dropout: 15mm	Bracket: BB30	Weight: 63.14 oz
