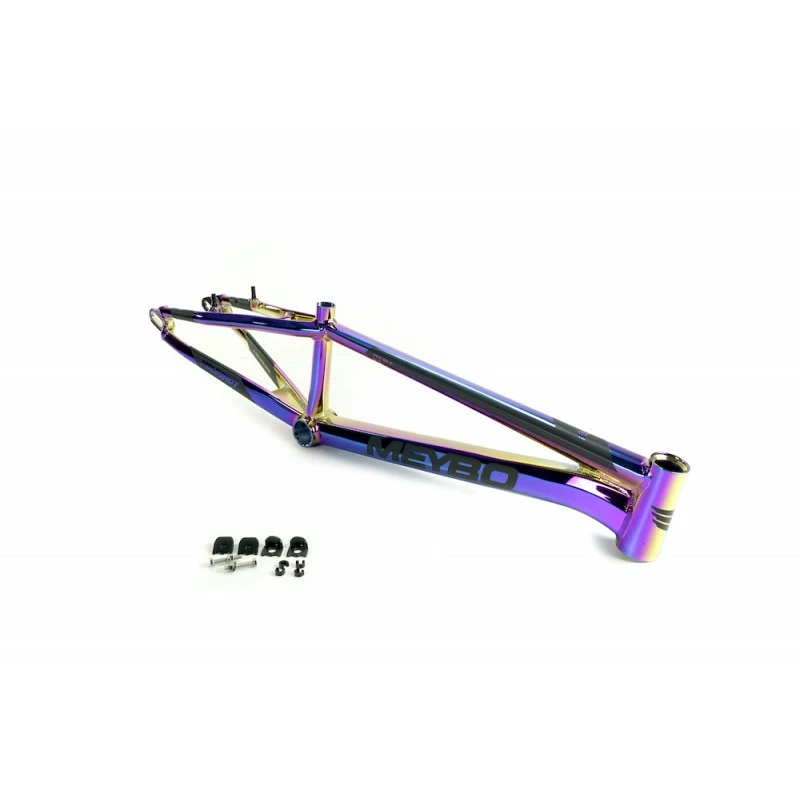

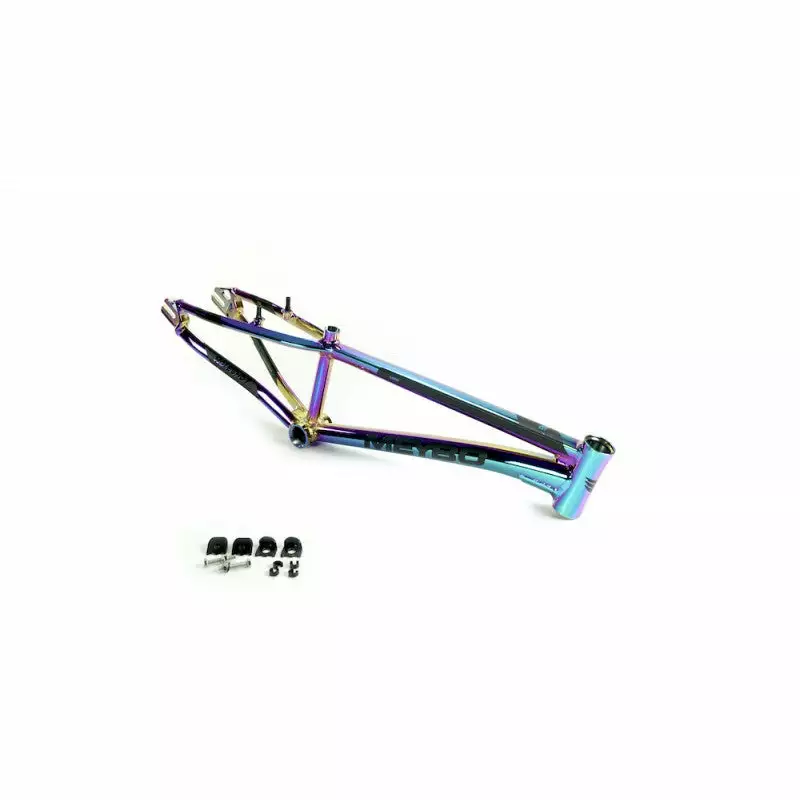

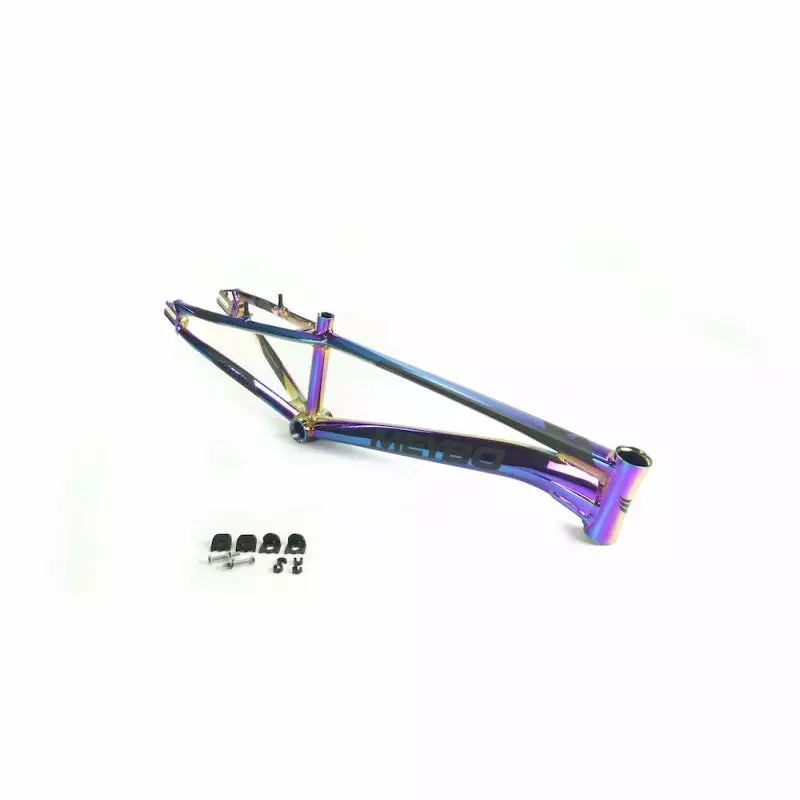

Meybo Holeshot BMX Race Frame-Oil Slick

The Meybo Holeshot BMX Race Frame-Oil Slick at J&R Bicycles is a high-quality race frame constructed from super tough and lightweight 6061-T6 aluminum alloy. The tubing is square-tapered and multi-butted to provide even more strength and stiffness allowing for superior handling and responsiveness. The Holeshot frames are the official race frame for the Dutch National Team.

FEATURES

• 6061 T-6 multiple butted hydroformed tubing;
• 1.5 tapered headtube (Pro), 1 1/8″ headtube (Ex. & Ex. XL) & 1″ (Mini, Junior)
• Wide BB shell for optimal stiffness, BB30 (Pro) & Euro (Sizes up to Expert XL)
• Disc brake optional with Meybo Disc Brake Adapter;
• Meybo integrated chaintensioners, 10mm and 15mm (Pro) & 8mm and 10mm (Sizes up to Expert XL);

GEOMETRY

Meybo Holeshot BMX Race Frame-Oil Slick Geometry Chart

SIZE	TOP TUBE RIDER AREA	DOWN TUBE	CHAINSTAY	HEAD TUBE ANGLE	SEAT POST ANGLE	HEAD TUBE	SEAT POST SIZE	DROPOUT	BRACKET	DISC BRAKE	WEIGHT
SIZE: Mini	TOP TUBE RIDER AREA: 17.68″	DOWN TUBE: 18.07″	CHAINSTAY: 12.99″	HEAD TUBE ANGLE: 73.0°	SEAT POST ANGLE: 70.0°	HEAD TUBE: 1″	SEAT POST SIZE: 22.2 mm	DROPOUT: 10 mm	BRACKET: Euro	DISC BRAKE: Yes, Postmount	WEIGHT: 1085 g
SIZE: Junior	TOP TUBE RIDER AREA: 18.70″	DOWN TUBE: 19.06″	CHAINSTAY: 13.39″	HEAD TUBE ANGLE: 73.5°	SEAT POST ANGLE: 71.0°	HEAD TUBE: 1″	SEAT POST SIZE: 22.2 mm	DROPOUT: 10 mm	BRACKET: Euro	DISC BRAKE: Yes, Postmount	WEIGHT: 1135 g
SIZE: Expert	TOP TUBE RIDER AREA: 19.69″	DOWN TUBE: 19.92″	CHAINSTAY: 13.39″	HEAD TUBE ANGLE: 73.5°	SEAT POST ANGLE: 71.0°	HEAD TUBE: 1 1/8″	SEAT POST SIZE: 25.4 mm	DROPOUT: 10 mm	BRACKET: Euro	DISC BRAKE: Yes, Postmount	WEIGHT: 1270 g
SIZE: Expert XL	TOP TUBE RIDER AREA: 20.67″	DOWN TUBE: 20.87″	CHAINSTAY: 13.58″	HEAD TUBE ANGLE: 73.5°	SEAT POST ANGLE: 71.0°	HEAD TUBE: 1 1/8″	SEAT POST SIZE: 25.4 mm	DROPOUT: 10 mm	BRACKET: Euro	DISC BRAKE: Yes, Postmount	WEIGHT: 1287 g
SIZE: Pro 21	TOP TUBE RIDER AREA: 21″	DOWN TUBE: 21.02″	CHAINSTAY: 14.53″	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB30	DISC BRAKE: Yes, Postmount	WEIGHT: 1508 g
SIZE: Pro 21.5	TOP TUBE RIDER AREA: 21.5″	DOWN TUBE: 21.38″	CHAINSTAY: 14.96″	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB30	DISC BRAKE: Yes, Postmount	WEIGHT: 1589 g
SIZE: Pro 22	TOP TUBE RIDER AREA: 22″	DOWN TUBE: 21.85″	CHAINSTAY: 15.20″	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB30	DISC BRAKE: Yes, Postmount	WEIGHT: 1605 g
SIZE: Pro 22.5	TOP TUBE RIDER AREA: 22.5″	DOWN TUBE: 22.28″	CHAINSTAY: 15.47″	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB30	DISC BRAKE: Yes, Postmount	WEIGHT: 1611 g
SIZE: Pro 23	TOP TUBE RIDER AREA: 23″	DOWN TUBE: 22.80″	CHAINSTAY: 15.71″	HEAD TUBE ANGLE: 74.3°	SEAT POST ANGLE: 71.0°	HEAD TUBE: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB30	DISC BRAKE: Yes, Postmount	WEIGHT: 1629 g
SIZE: Cruiser	TOP TUBE RIDER AREA: 22.20″	DOWN TUBE: 22.72″	CHAINSTAY: 15.47″	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB30	DISC BRAKE: Yes, Postmount	WEIGHT: 1695 g
