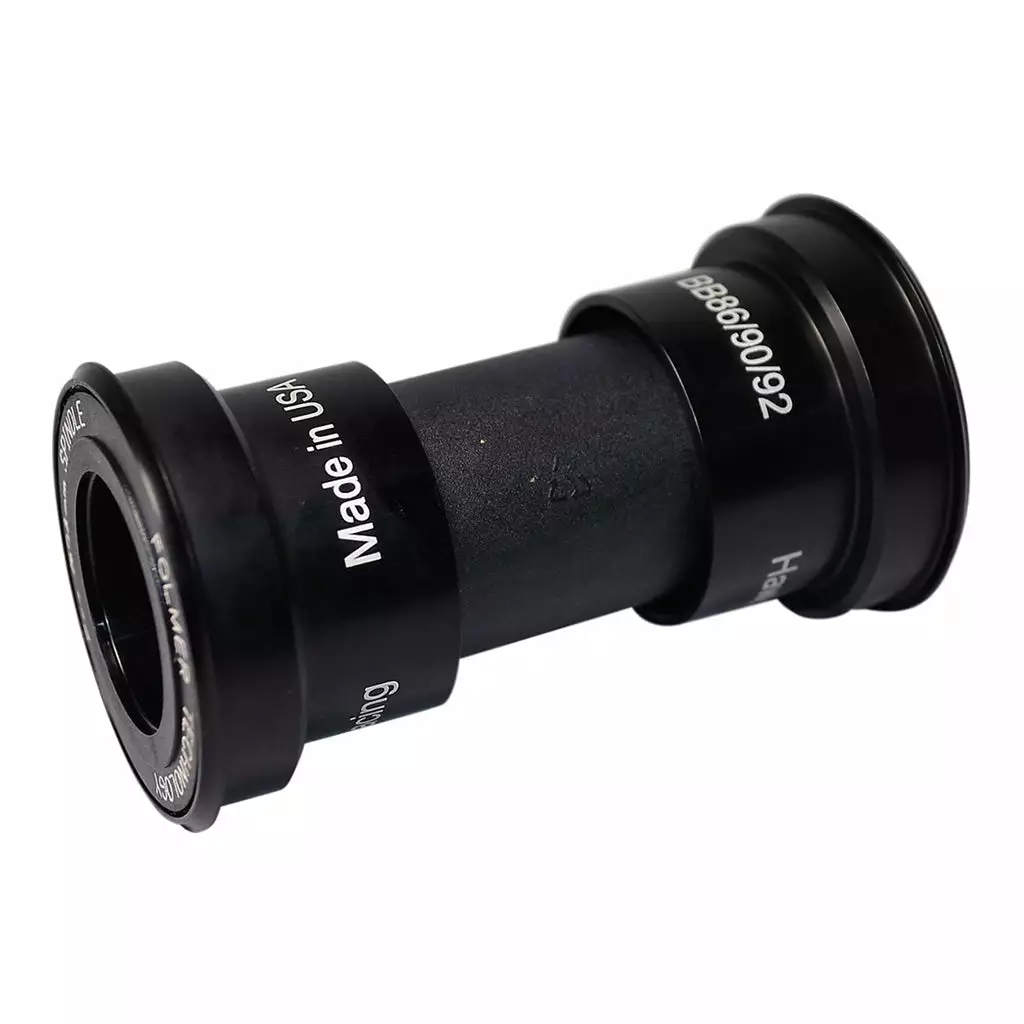

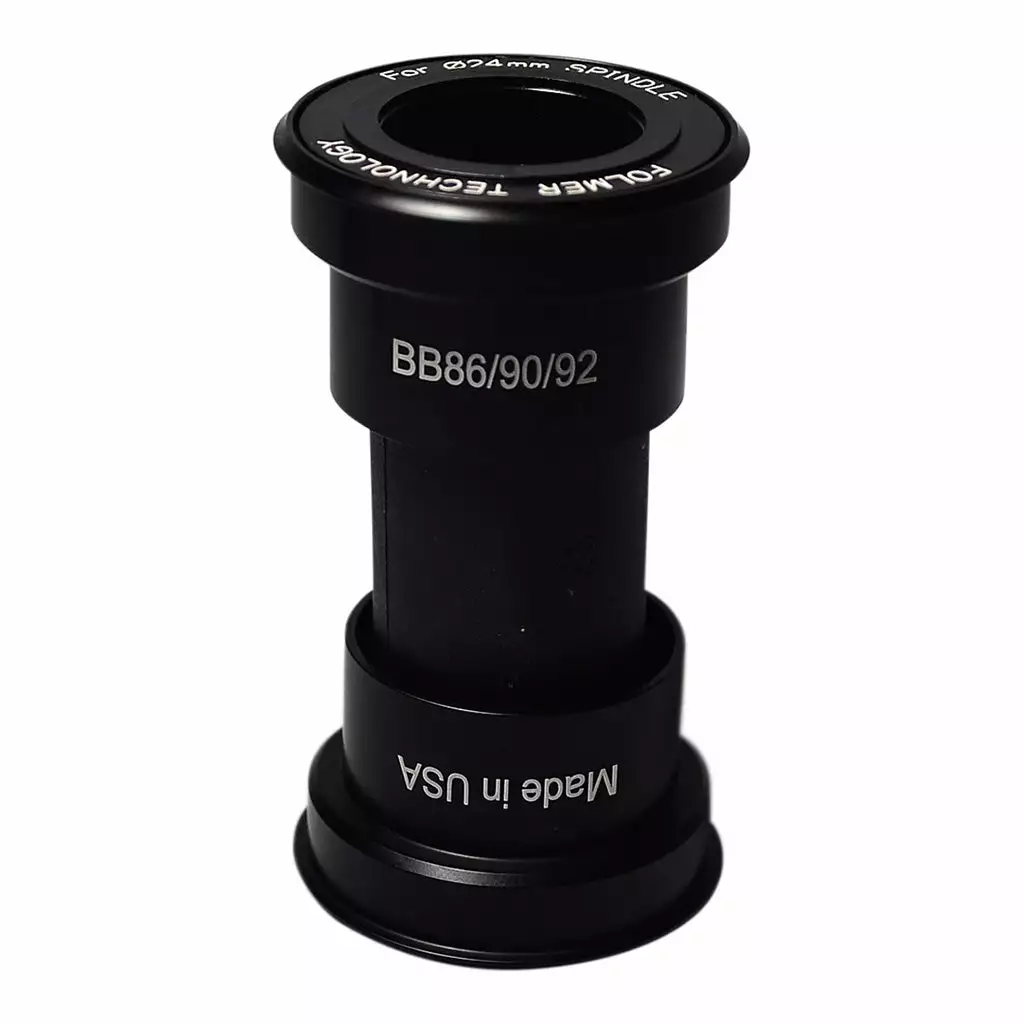

Hawk Racing BB86/90/92 Integrated Bottom Bracket Bottom Brackets

The Hawk Racing BB86-90-92 Integrated Bottom Bracket takes the BB86 and the BB92 bottom brackets and combines them into one easy-to-use integrated BB. The pressfit cup system equals out the total width to match threaded systems. This BB is super durable and lightweight and the bearings are compatible with 24mm crankset spindles like Shimano and FSA. SRAM 22/24mm cranksets are usable with a separate adapter. Standard bearings are for use in dry and no-salt conditions.

Specifications:

• WEIGHT: .25 lbs
• DIMENSIONS: 2 × 2 × 4 in
• BEARING & SEAL: Standard, FSS, FSS+CXseal
• Weight: 74g without tube, 80g with tube
• Compatibility: Frame BB86/90/92 frames, Shell Width: 86.5mm (road) and 91.5mm (mtn), Shell ID: 41mm
• Compatibility: Crankset 24mm spindle cranksets, 22/24mm spindle cranksets with SRAM adapter
• Service Interval: Bearings are Lifetime Maintenance Free
• Warranty: 1 year manufacturer
• Bearings: Folmer Technology bearings, ISO and ABEC-3 certified – Made in Japan – Non-ceramic
• Energy Consumption: 0.32 watts
• BB Threads: No Threads – Integrated BB86/90/92 with OD 41mm
• Ships With: (2) cups with bearings
