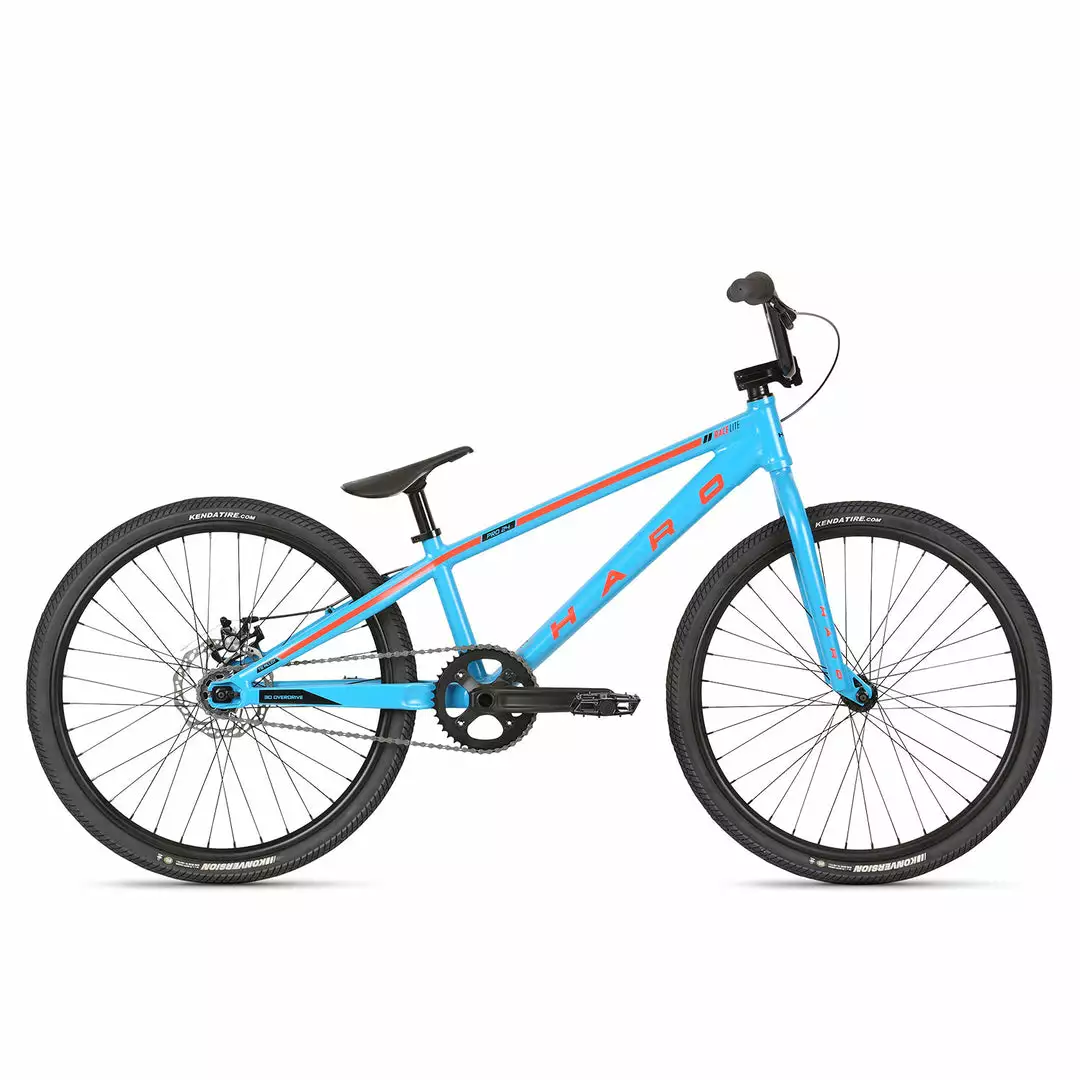

Haro Racelite Pro Cruiser 24″ BMX Race Bike-Blue

The Haro Racelite Pro Cruiser 24″ BMX Race Bike-Blue is from Haro’s Racelite line of mid-level complete bikes at lower-level price points. Featuring a 6061, smooth weld, alloy frame, Promax braking, and Kenda tires, this bike provides a top-notch out of box experience that will get you out on the track with minimal levels of stress.

FEATURES

• 6061 series smooth weld alloy frame with integrated head tube, internal cable routing, 3D dropouts with integrated chain tensioners
• PTC (Power Transfer Center), triple butted air formed top tube, over sized triple butted down tube and BB86 bottom bracket shell
• 100% chromoly fork
• 100% chromoly bars and Haro CNC alloy front load stem
• 2-piece alloy cranks with sealed press fit BB86
• Fully sealed wheels with double wall alloy rims, a sealed rear cassette hub and alloy nipples
• Kenda Konversion tires
• Plastic Pivotal seat with alloy post
• Promax mechanical disc brake, 160mm rotor

SPECIFICATIONS

• FRAME: 6061 Series Alloy PTC Disc Frame w/ Internal Headtube, Internal Cable Routing & Smooth Welding
• FORK: Full Cr-Mo 1 1/8″ Threadless w/ Tapered Legs
• COLORS: Blue
• WEIGHT: 23.04 lbs
• CRANKS: 2-pc Alloy w/ 24mm Hollow Spindle, 175mm
• BOTTOM BRACKET: Press-Fit BB86, Sealed Bearing
• SPROCKET: 44t Alloy
• GEARING: 44/16
• PEDALS: DX Alloy, 9/16″
• CHAIN: KMC Z33
• TIRES: Kenda “Konversion” 24 x 1.75″
• FRONT HUB: Low Flange Alloy 36h, Sealed Bearing
• REAR HUB: Alloy Disc Cassette 36h, Sealed Bearing, 6-Bolt
• AXLE: 3/8″
• RIMS: 24″ Alloy 36h, Single Wall
• BRAKE: Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
• BRAKE LEVER: Promax XL-373 Two Finger
• GRIPS: Micro-Knurl Grips
• HANDLE BAR: Full Cr-Mo, 5.25″ Rise
• STEM: Forged Alloy Top-Load, 45mm Ext.
• HEADSET: Sealed Internal 1 1/8″
• SEAT: Haro Slim Plastic Pivotal
• SEAT POST: Alloy Pivotal, 27.2mm
• SEAT POST CLAMP: Alloy, 31.8mm

GEOMETRY

• Size: 24
• A. Head Angle: 73.3°
• B. Seat Angle: 71°
• C. Top Tube: 21.75 (553 mm)
• D. Seat Tube: 10.5 (266.5 mm)
• E. Chainstay: 15.6 (397 mm)
• F. BB Height: 12 (305 mm)
• G. Stand Over: 23.6 (599 mm)
