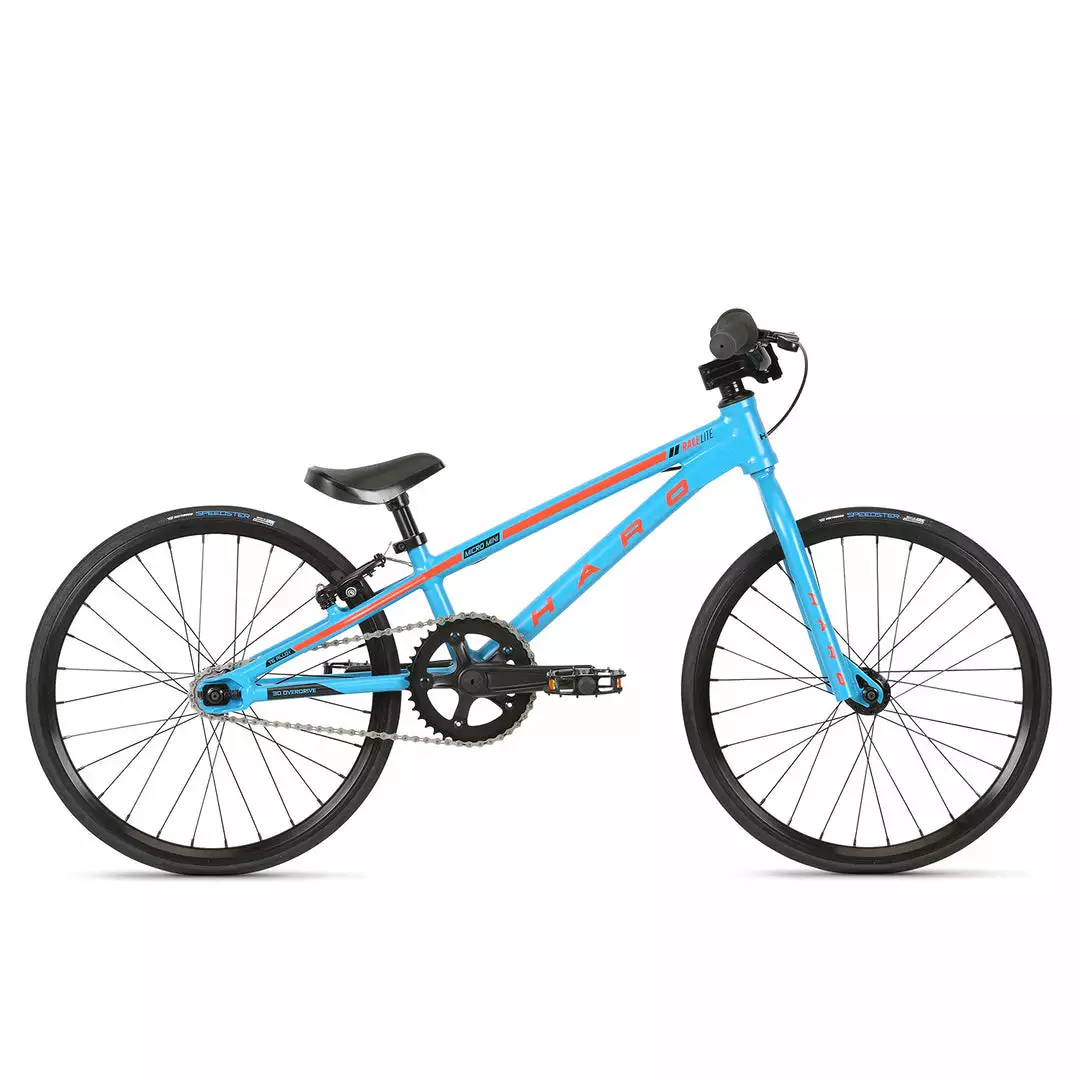

Haro Racelite Micro BMX Race Bike-Blue RACE BIKES

The Haro Racelite Micro BMX Race Bike-Blueis from Haro’s Racelite line of mid-level complete bikes at lower-level price points. Featuring a 6061, smooth weld, alloy frame, Promax braking, and Kenda tires, this bike provides a top-notch out of box experience that will get you out on the track with minimal levels of stress.

FEATURES

• 6061 series smooth weld alloy frame with integrated head tube, internal cable routing, 3D dropouts with integrated chain tensioners
• 100% chromoly fork
• Alloy bars and Haro CNC alloy front load stem
• 3-piece alloy race cranks with sealed Euro BB
• Fully sealed wheels with double wall alloy rims, a sealed rear cassette hub and alloy nipples
• Vee Rubber Speedster tires

SPECIFICATIONS

• FRAME: 6061 Series Alloy Frame w/ Integrated Headtube, Internal Cable Routing & Smooth Welding
• FORK: Full Cr-Mo 1″ Threadless
• COLORS: Blue
• WEIGHT: 15 lbs
• CRANKS: 3-pc Alloy Race, 130mm
• BOTTOM BRACKET: Sealed Bearing Euro Square Taper
• SPROCKET: 38t Alloy
• GEARING: 38/14
• PEDALS: Mini DX Alloy, 9/16″
• CHAIN: KMC Z33
• TIRES: Vee Rubber “Speedster” 18 x 1″
• FRONT HUB: Low Flange Alloy 28h, Sealed Bearing
• REAR HUB: Low Flange Alloy Cassette 28h, Sealed Bearing
• AXLE: 3/8″
• RIMS: 18″ Alloy 28h, Double Wall
• BRAKE: Tektro 926 Mini Alloy V-brake
• BRAKE LEVER: Tektro 317 Alloy Lever
• GRIPS: Mini Micro-Knurl Grips
• HANDLE BAR: Mini Alloy Bar, 2″ Rise
• STEM: Forged Alloy Top-Load, 45mm Ext.
• HEADSET: Integrated 1″
• SEAT: Unibody
• SEAT POST: Alloy, 22.2mm
• SEAT POST CLAMP: Alloy, 25.4mm

GEOMETRY

• Size: 18
• A. Head Angle: 72°
• B. Seat Angle: 71.47°
• C. Top Tube: 16.75 (425.4 mm)
• D. Seat Tube: 7.1 (180 mm)
• E. Chainstay: 11.8 (300 mm)
• F. BB Height: 8.75 (222.2 mm)
• G. Stand Over: 15.5 (393.7 mm)
