Sale!

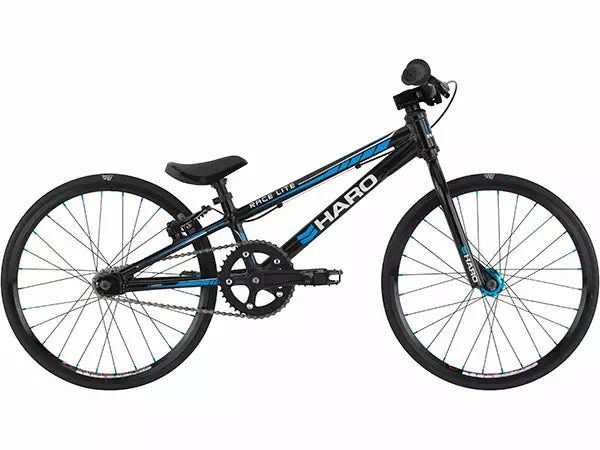

Haro Race LT-Micro Mini-Signature Black

Original price was: $549.95.Current price is: $94.99.

SKU: haro-3526994853960 Categories: BIKES, RACE BIKES Tags: 26380828744out-of-stock, Bmx-race-bikes, Discontinued, FACEBOOK ISSUE, Freeship, Haro, Micro, Micro-mini

Elevate Your Shopping Experience
The quality solution for all your needs.
Safeguard Your Shopping Experience
Your needs, our top priority.

Description
Reviews (0)

PRODUCT DETAILS

DECAL/NAME PLATE	SM WATER TRANSFER DECAL
FRAME	2016 HARO RACE LITE MICRO MINI FRAME; JOVIAL DRAWING #W0019-1; 6061 ALUMINUM; INTERNAL HEAD TUBE; INCLUDE JC-L183 ALLOY CHAIN ADJUSTERS AND HARDWARE – ALL BLACK
FORK	2016 HARO MICRO MINI FORK; MODEL #FKB0053; HARO 18″ MICRO MINI BMX FORK; 25.4MM (1″) OD THREADLESS CRMO 1.6T STEERER & 1.2T LEG; M10130L262*100W
HEAD SET	MODEL #VP-A06ACM1; 1″ AHEADSET; 7 PCS; DIAMETER 25.441.826.4 SEMI-CARTRIDGE BEARING; ALUMINUM CONICAL TOP COVER (5MM); WITH HEADSET CAP M-3D
HEADSET SPACERS	2 X 5MM ALLOY BLACK ANODIZED SPACER
TOP CAP/STAR NUT	M-3D; FOR 1″ ; TOP CAP W/STAR NUT, NO LOGO
SPROCKET/SPIDER	1/2”X3/32”x38T ALLOY CHAINRING; SANDBLAST BLACK ANODIZED (PRICE INCLUDED WITH CRANK SET)
CRANK SET	CHUAN WEI MODEL #AF23-136A; 130MM ARM LENGTH; 110MM 5 BOLT PATTERN; FORGED ALLOY; SQUARE TAPER SPINDLE INTERFACE; SPROCKET BOLTS INCLUDED WITH CRANK SET (BLACK)
BB-SET	CHUAN WEI MODEL #SAX-J21ST; 68 X 118MM; CR-MO SPINDLE SQUARE TAPER INTERFACE; 2 SEALED CARTRIDGE BEARINGS
HANDLEBAR	HARO MICRO MINI / MINI H BAR; EVG #HB-B300; 485mm X 50mm RISE X 10 DEG SWEEP 3.2t WALL; NO DECAL
STEM	HARO 2016 OE FRONT-LOAD STEM; #ITC-XD685; COLD FORGED WITH CNC; 45MM EXT; 22.2MM BAR BORE; 32MM STACK HEIGHT; 25.4MM STEER TUBE BORE; HARO LOGO ON FACE PLATE – LOGO SURFACE MACHINED AFTER ED OR PAINT
GRIP	VELO GRIP; MODEL #VLG 410; 115MM LENGTH; WITH FLANGE (LOW); 25 DUROMETER (SOFT)
H/BAR END PLUG	N/A
F/HUB	KT HUB; MODEL #KT-M37F; 28H LOW FLANGE ALLOY SHELL; 3/8″ X 140MM LENGTH AXLE; SEALED BEARINGS
R/HUB	KT HUB; MODEL #KT-M98R; CASSETTE REAR HUB; 28H LOW FLANGE ALLOY SHELL; 3/8′ X 160MM AXLE; SEALED BEARINGS; INCLUDE 14TX3/32″T CP COG; ALL BLACK HARDWARE
FRONT RIM	ANKLE BITER; PART #A120-0825; ALLOY AN-04 18″; 28H, POST-ANODIZED ALL BLACK AFTER JOINING AND CNC SIDEWALL; PV
REAR RIM	ANKLE BITER; PART #A120-0825; ALLOY AN-04 18″; 28H, POST-ANODIZED ALL BLACK AFTER JOINING AND CNC SIDEWALL; PV
SPOKES	15 GUAGE STEEL BLACK; 3X; W/ SHADAR ALLOY 12MM NIPPLE
FRONT TIRE/TUBE/STRIP	VEE RUBBER “SPEEDSTER” TIRE #VRB316; 18X1″; 60TPI; W/PRESTA VALVE TUBE; JOGON PVC RIM STRIP # FOR 18X1″ RIM
REAR TIRE/TUBE/STRIP	VEE RUBBER “SPEEDSTER” TIRE #VRB316; 18X1″; 60TPI; W/PRESTA VALVE TUBE; JOGON PVC RIM STRIP # FOR 18X1″ RIM
F/BRAKE	N/A
R/BRAKE	TEKTRO MODEL #926AL; MINI V-BRAKE; ARM LENGTH 80MM; DIMENSION 20 – 36.5MM; BLACK; BLACK HARDWARE
BRAKE LEVER	TEKTRO MODEL #317A; CAST ALUMINUM LEVER AND BRACKET; 2 FINGER LEVER; BLACK BRACKET; BLACK LEVER; BLACK HARDWARE; BLACK CABLE BARRELL ADJUSTER
BRAKE CABLE/CASING	2P CASING/SLICK TYPE INNER CABLE/MACHINED END CAPS
ROTOR	N/A
FREEWHEEL	14TX3/32″T CP COG; INCLUDED WITH REAR HUB
CHAIN	KMC Z33; 1/2’X3/32″X74L; SILVER / SILVER
CHAINGUARD	20″ BMX C068N (EQUIVELANT TO DL-421C); M5X8L 20″ SMOKE PLASTIC
SADDLE	VELO #VL-7208; PLASTIC SADDLE BLACK W/O PADDING; ALLOY POST 22.2 X 200MM BLACK ANODIZED NO LOGO
SEAT POST	BLACK ALLOY W/ SEAT; 22.2 X 200MM (PRICE INCLUDED WITH SEAT)
SEAT CLAMP	ProMax MX28 25.4MM; SAND BLAST ANODIZED W/ NO LOGO
PEDALS	VP-505; Alloy body; Boron Steel Axle; Loose ball bearing; dimension = 102 x 93
CHAIN TENSIONER	#JC-L183 ALLOY CHAIN ADJUSTERS AND HARDWARE
PEGS
REFLECTORS	AS REQUIRED TO MEET CPSC REQUIREMENT; WHITE WHEEL; WHITE FORWARD FACING; RED REAR FACING FOR USA. OTHER COUNTRY REQUIREMENTS MAY DIFFER AND SHOULD BE FOLLOWED FOR EACH COUNTRY
PAD SET
MISC
F/REF. BRKT	TO MATCH YUNG FANG B-10 FOR HANDLEBAR CROSS BAR
R/REF. BRKT	TO MATCH YUNG FANG B-2 FOR 22.2 SEAT POST
F. AXLE SAFETY RET	BLACK
BOLTS
