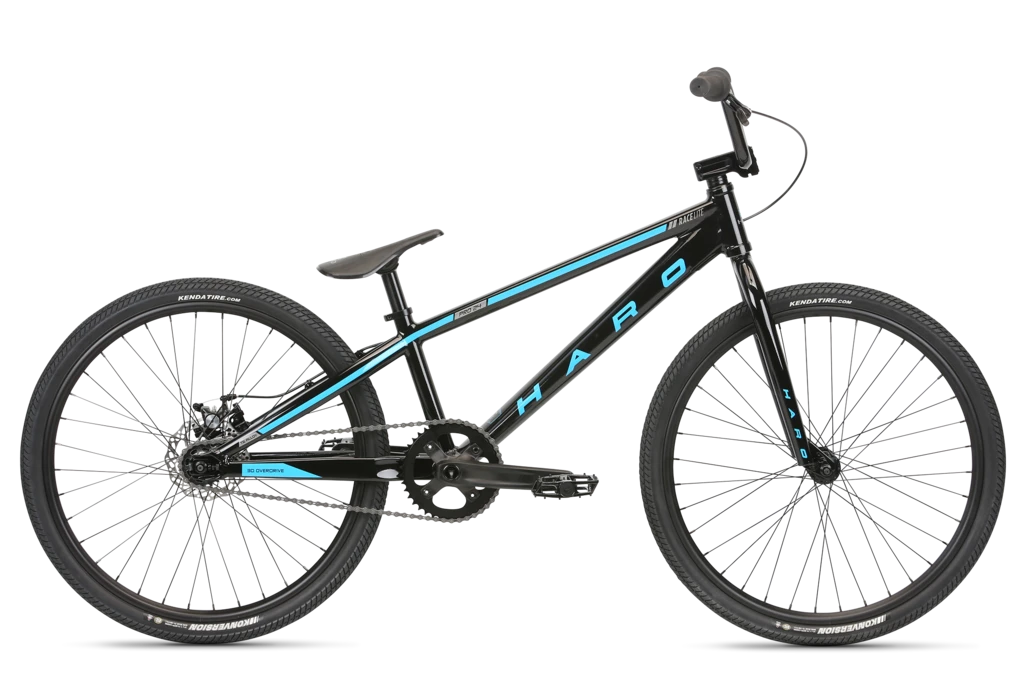

Haro Race Lite Pro 24″ BMX Race Bike-Black RACE BIKES

The cruiser class is a staple in BMX racing and the Race Lite Pro 24 model fits right in. Centered around a 21.75″ top tube cruiser sized frame, the Pro 24 features high performance spec found on the 20″ Race Lite models like PTC (Power Transfer Center), 2 piece alloy cranks with press fit sealed bearing BB86 bottom bracket and chromoly forks and bars. 24″ alloy wheels rolling on sealed bearings are what make the Pro 24 model specific to the cruiser class.

FEATURES

• 6061 series smooth weld alloy frame with integrated head tube, internal cable routing, 3D dropouts with integrated chain tensioners
• PTC (Power Transfer Center), triple butted air formed top tube, over sized triple butted down tube and BB86 bottom bracket shell
• 100% chromoly fork
• 100% chromoly bars and Haro CNC alloy front load stem
• 2-piece alloy cranks with sealed press fit BB86
• Fully sealed wheels with double wall alloy rims, a sealed rear cassette hub and alloy nipples
• Kenda Konversion tires
• Plastic Pivotal seat with alloy post
• Promax mechanical disc brake, 160mm rotor

SPECIFICATIONS

• FRAME: 6061 Series Alloy PTC Disc Frame w/ Internal Headtube, Internal Cable Routing & Smooth Welding
• FORK: Full Cr-Mo 1 1/8″ Threadless w/ Tapered Legs
• COLORS: Black
• WEIGHT: 23.04lbs
• CRANKS: 2-pc Alloy w/ 24mm Hollow Spindle, 175mm
• BOTTOM BRACKET: Press-Fit BB86, Sealed Bearing
• SPROCKET: 44t Alloy
• GEARING: 44/16
• PEDALS: DX Alloy, 9/16″
• CHAIN: KMC Z33
• TIRES: Kenda “Konversion” 24 x 1.75″
• FRONT HUB: Low Flange Alloy 36h, Sealed Bearing
• REAR HUB: Alloy Disc Cassette 36h, Sealed Bearing, 6-Bolt
• AXLE: 3/8″
• RIMS: 24″ Alloy 36h, Single Wall
• BRAKE: Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
• BRAKE LEVER: Promax XL-373 Two Finger
• GRIPS: Micro-Knurl Grips
• HANDLE BAR: Full Cr-Mo, 5.25″ Rise
• STEM: Forged Alloy Top-Load, 45mm Ext.
• HEADSET: Sealed Internal 1 1/8″
• SEAT: Haro Slim Plastic Pivotal
• SEAT POST: Alloy Pivotal, 27.2mm
• SEAT POST CLAMP: Alloy, 31.8mm

GEOMETRY & SIZING

Size: 20

1. Head Angle: 73.3°
2. Seat Angle: 71°
3. Top Tube: 21.75 (553 mm)
4. Seat Tube: 10.5 (266.5 mm)
5. Chainstay: 15.6 (397 mm)
6. BB Height: 12 (305 mm)
7. Stand Over: 23.6 (599 mm)
