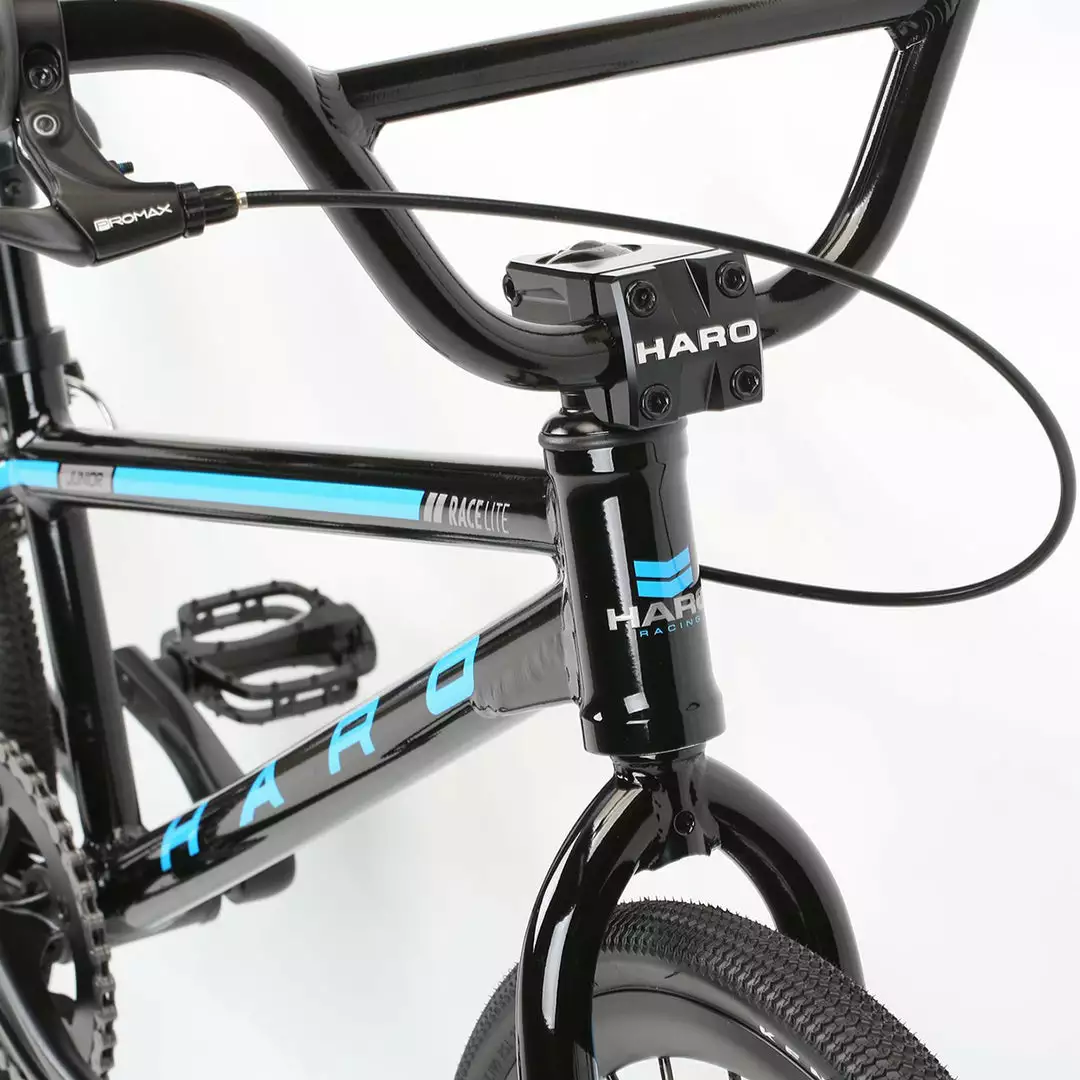

Haro Race Lite Junior BMX Race Bike-Black RACE BIKES

Rising further up the size scale is the Race Lite Junior. The Junior shares the same 20″ alloy wheel size as the Mini but the 6061 alloy frame, 3 piece alloy cranks and handlebars all increase in size to accommodate growing riders. Balanced geometry, function and control are all achieved through features like integrated chain adjusters, 100% chromoly fork, CNC alloy stem and sealed bearings throughout the wheels and bottom bracket.

FEATURES

• 6061 series smooth weld alloy frame with integrated head tube, internal cable routing, 3D dropouts with integrated chain tensioners
• 100% chromoly fork
• Alloy bars and Haro CNC alloy front load stem
• 3-piece alloy race cranks with sealed Euro BB
• Fully sealed wheels with double wall alloy rims, a sealed rear cassette hub and alloy nipples
• Kenda Kontact tires
• Promax V-Brake and lever

SPECIFICATIONS

• FRAME: 6061 Series Alloy Frame w/ Integrated Headtube, Internal Cable Routing & Smooth Welding
• FORK: Full Cr-Mo 1″ Threadless
• COLORS: Black
• WEIGHT: 17lbs
• CRANKS: 3-pc Alloy Race, 145mm
• BOTTOM BRACKET: Sealed Bearing Euro Square Taper
• SPROCKET: 38t Alloy
• GEARING: 38/14
• PEDALS: Mini DX Alloy, 9/16″
• CHAIN: KMC Z33
• TIRES: Kenda “Kompact” 20 x 1 1/8″
• FRONT HUB: Low Flange Alloy 28h, Sealed Bearing
• REAR HUB: Low Flange Alloy Cassette 28h, Sealed Bearing
• AXLE: 3/8″
• RIMS: 20″ Alloy 28h, Double Wall
• BRAKE: Promax MV85 Mini V-Brake
• BRAKE LEVER: Promax XL-373 Two Finger
• GRIPS: Mini Micro-Knurl Grips
• HANDLE BAR: Alloy Bar, 5″ Rise
• STEM: Forged Alloy Top-Load, 45mm Ext.
• HEADSET: Integrated 1″
• SEAT: Unibody
• SEAT POST: Alloy, 22.2mm
• SEAT POST CLAMP: Alloy, 25.4mm

GEOMETRY & SIZING

Size: 20

1. Head Angle: 73°
2. Seat Angle: 71°
3. Top Tube: 18.3 (464.9 mm)
4. Seat Tube: 9.2 (232.7 mm)
5. Chainstay: 13.6 (346 mm)
6. BB Height: 11 (280 mm)
7. Stand Over: 19.5 (495.3 mm)
