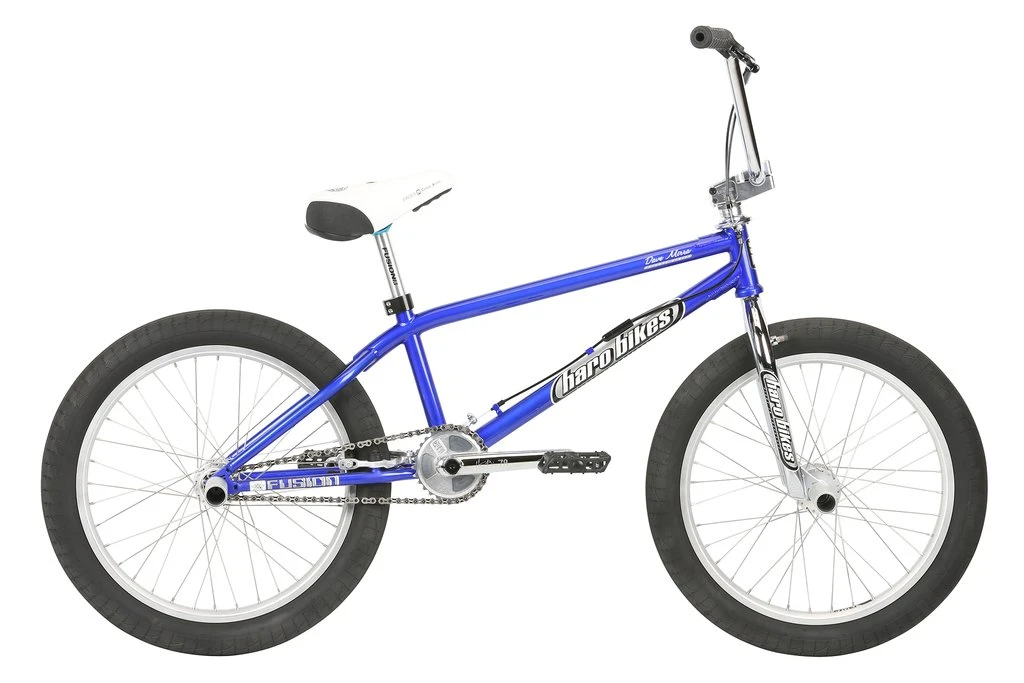

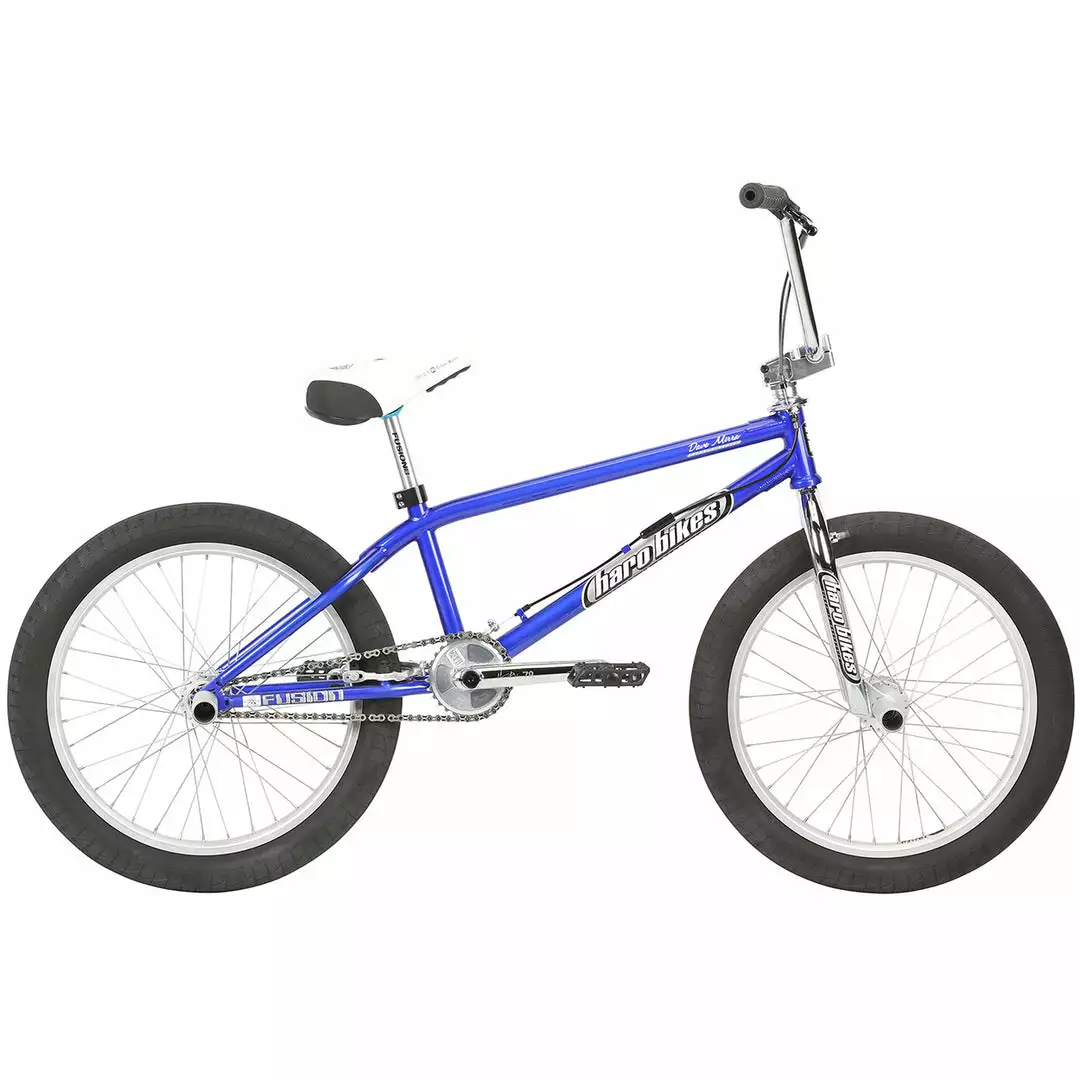

Haro Mirra Tribute 21″TT BMX Bike-Y2K Blue FREESTYLE BIKES

There are no two ways about it: Dave Mirra was the spark that revitalized Haro in the mid 1990s. Gone were the days of Bob Haro and Ron Wilkerson behind the brand’s direction — it was now Dave Mirra and Ryan Nyquist designing complete bikes that were affordable, high quality and available worldwide to a new legion of BMX fans. A few years later, the X Games hit, and suddenly, Dave Mirra’s signature Haro was on every TV screen of an ESPN subscriber, and demand for his signature bikes and components sky rocketed. Mirra remained an esteemed member of the Haro team through the end of 2006, and then started his own brand, Mirraco, for the remainder of his BMX career. But the majority of Mirra’s accomplishments at the top of the sport were done on a signature Haro, and it’s where most of us remember him best. Now, to honor Dave Mirra, Haro is releasing a tribute Dave Mirra bike, with a bulk of the sales proceeds going directly to the Mirra family. It is but one more way for BMX to continually honor the life, legacy and greatness of Dave Mirra, and all that he gave to his family, friends and BMX as a whole. And it’s proof positive that the memory of Dave Mirra will remain with all of us for a long time to come.

FEATURES

• 100% chromoly Mirra Tribute frame with integrated head tube, pierced top tube, wishbone seat stays, MID BB shell and 20.5″ or 21″ top tube length
• 100% chromoly fork with internal threaded 1 piece CNC steer tube, tapered legs and 5mm dropouts
• 100% chromoly bars 8.75″ with Haro Lineage Hevron CNC alloy top load stem

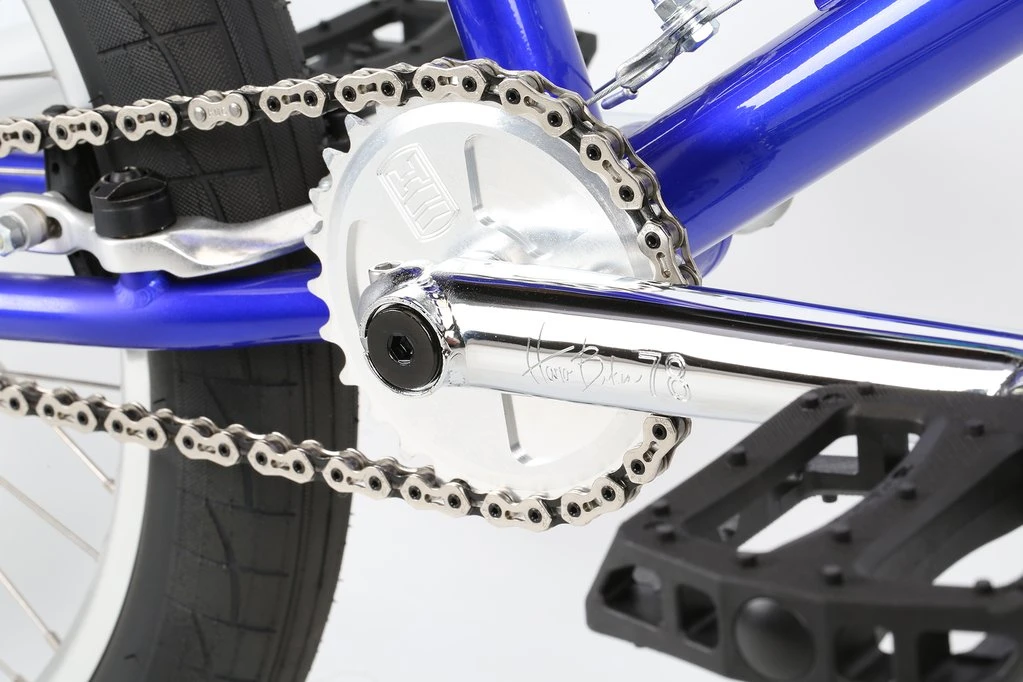

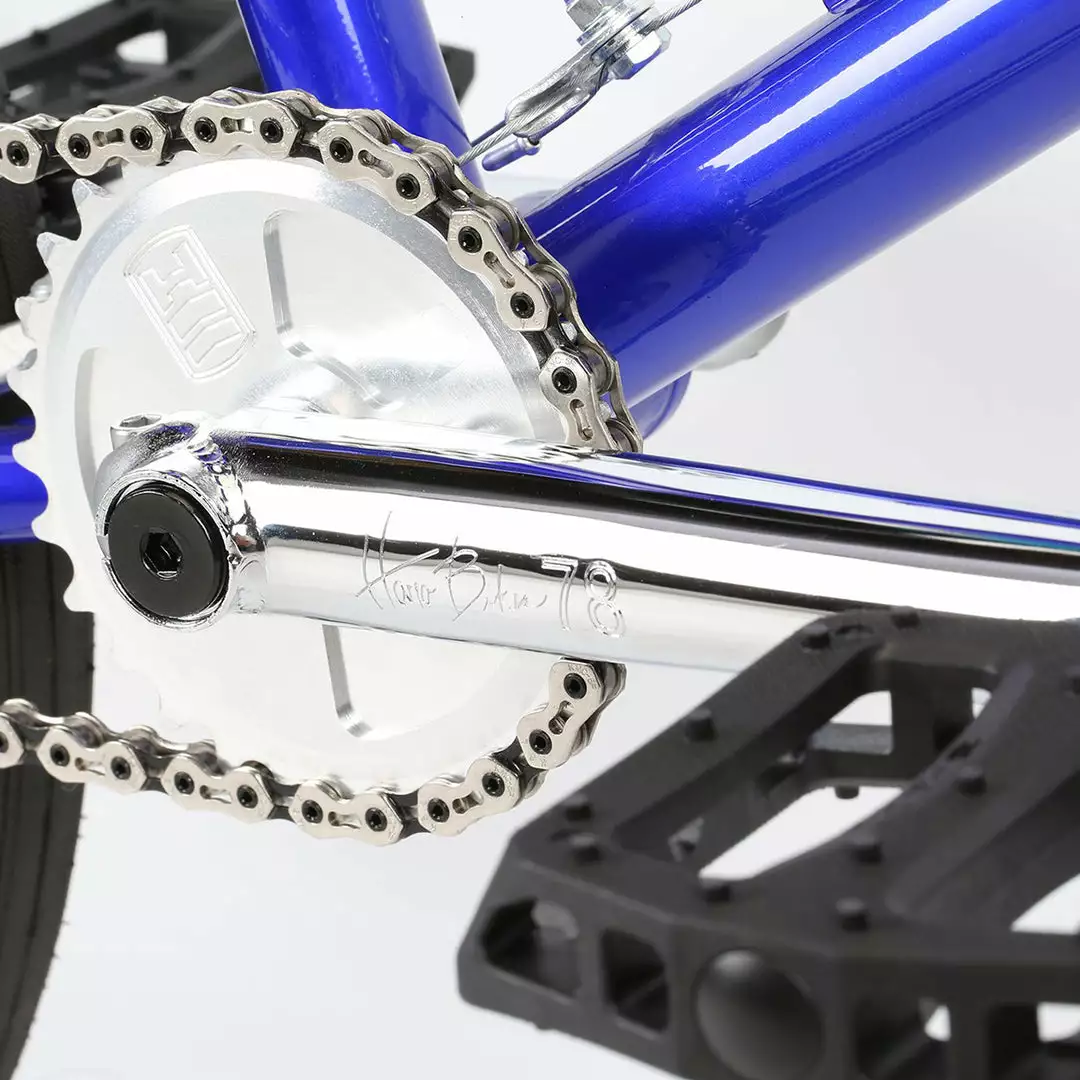

• Haro 1978 3-piece chromoly 8-spline 175mm cranks with Haro Radiation 28T CNC alloy bolt drive sprocket and sealed Mid BB
• Fully sealed wheels with Haro Sata double-wall alloy rims, Lineage high flange alloy shell sealed hubs with 14mm rear axle and 9t driver
• Haro La Mesa tires 2.4″ front and rear

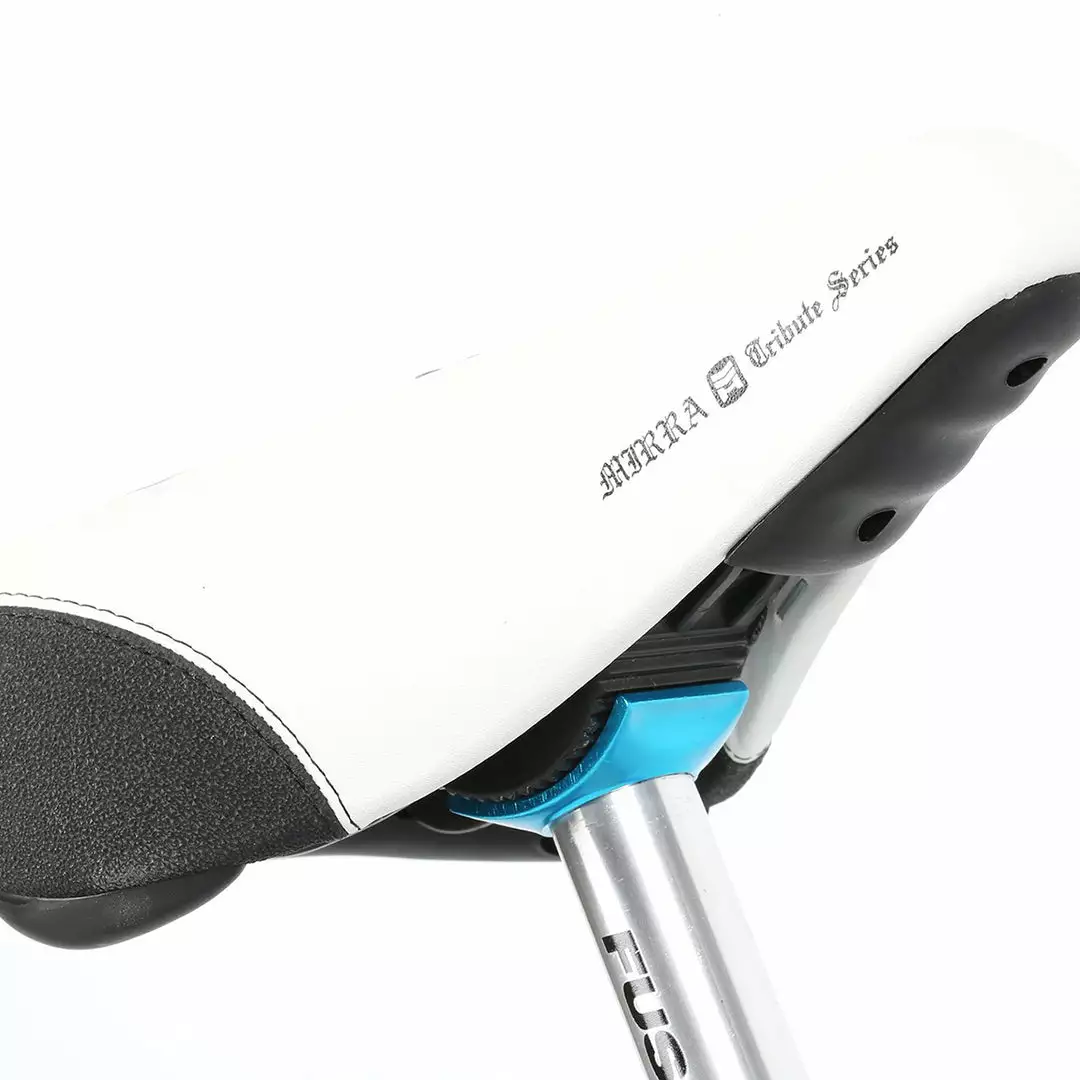

• Haro “Mirra saddle” padded Pivotal seat with alloy Pivotal post
• Haro 1978 plastic pedals
• Haro Team flangeless grips

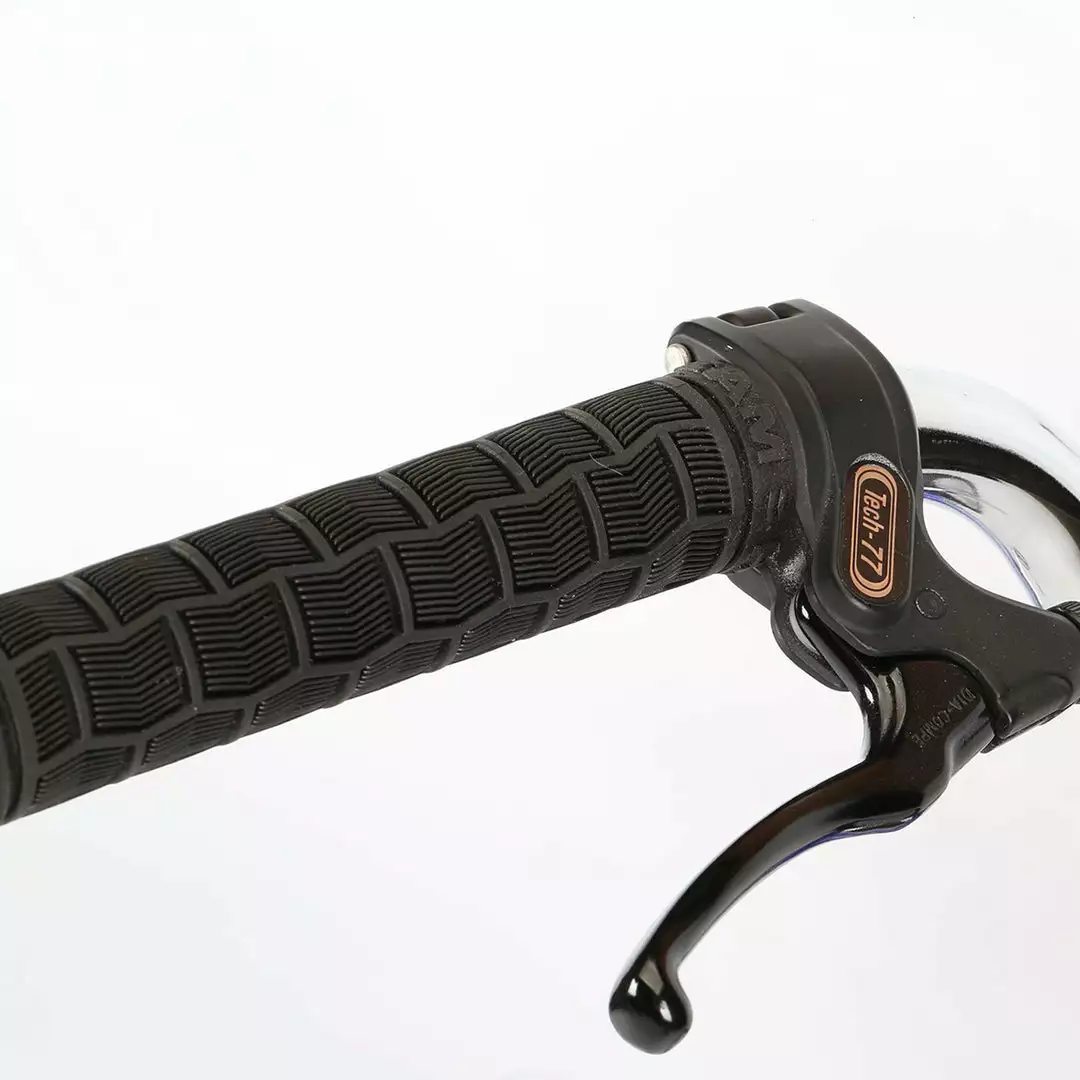

• Dia-Compe “Hombre” 990 rear brakes with Tech-77 lever

SPECIFICATIONS

• FRAME: Full Crmo, internal HT & Mid BB – 20.5″ or 21″ TT
• FORK: Full Crmo with 1 piece CNC steer tube & tapered legs
• COLORS: White, Y2K Blue, Gloss Black
• WEIGHT: 28lbs
• CRANKS: 3 pc Crmo 8 spline 175mm w/ Mid sealed bearing BB
• BOTTOM BRACKET: Mid sealed bearing BB
• GEARING: Haro 28T CNC alloy bolt drive. 9T driver with sealed bearing
• PEDALS: Haro “1978” plastic
• TIRES: Haro La Mesa 20×2.40 F/R
• HUBS: Front: 36H Lineage high flange sealed w/ 3/8″ straight axle Rear: 36H Lineage high flange sealed w/14mm axle & 9T driver
• RIMS: Haro Sata 36H Alloy double wall
• BRAKE: Dia-Compe AD 990 alloy U-brake rear only
• BRAKE LEVER: Dia-Compe Tech 77 alloy lever
• ROTOR: Ende rotor
• GRIPS: Haro Team Grip flangeless
• HANDLE BAR: Crmo 8.75″ rise

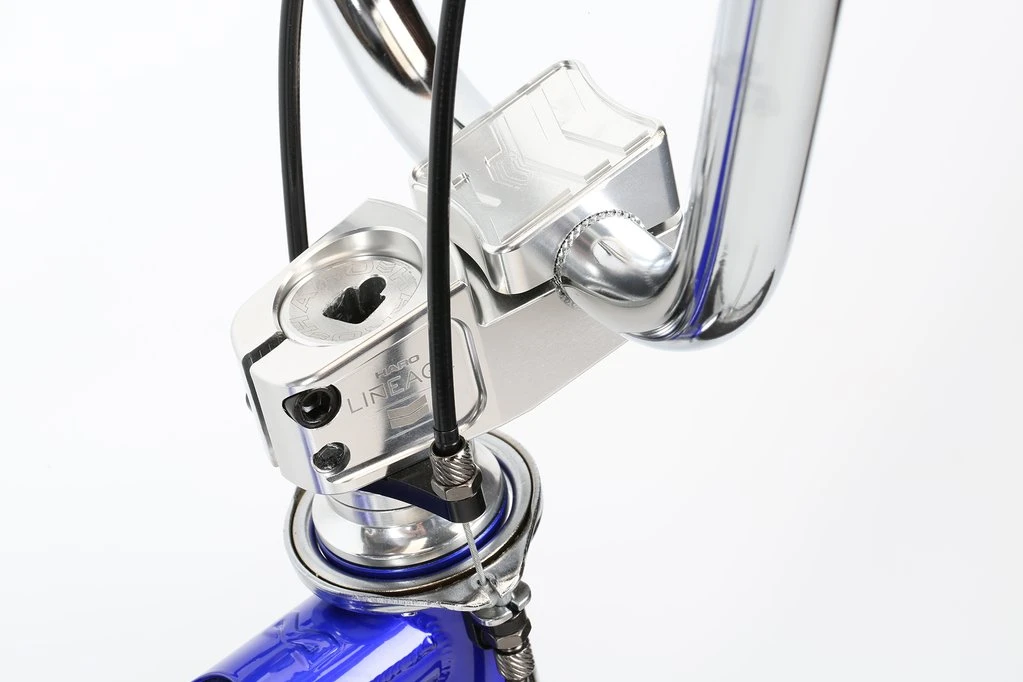

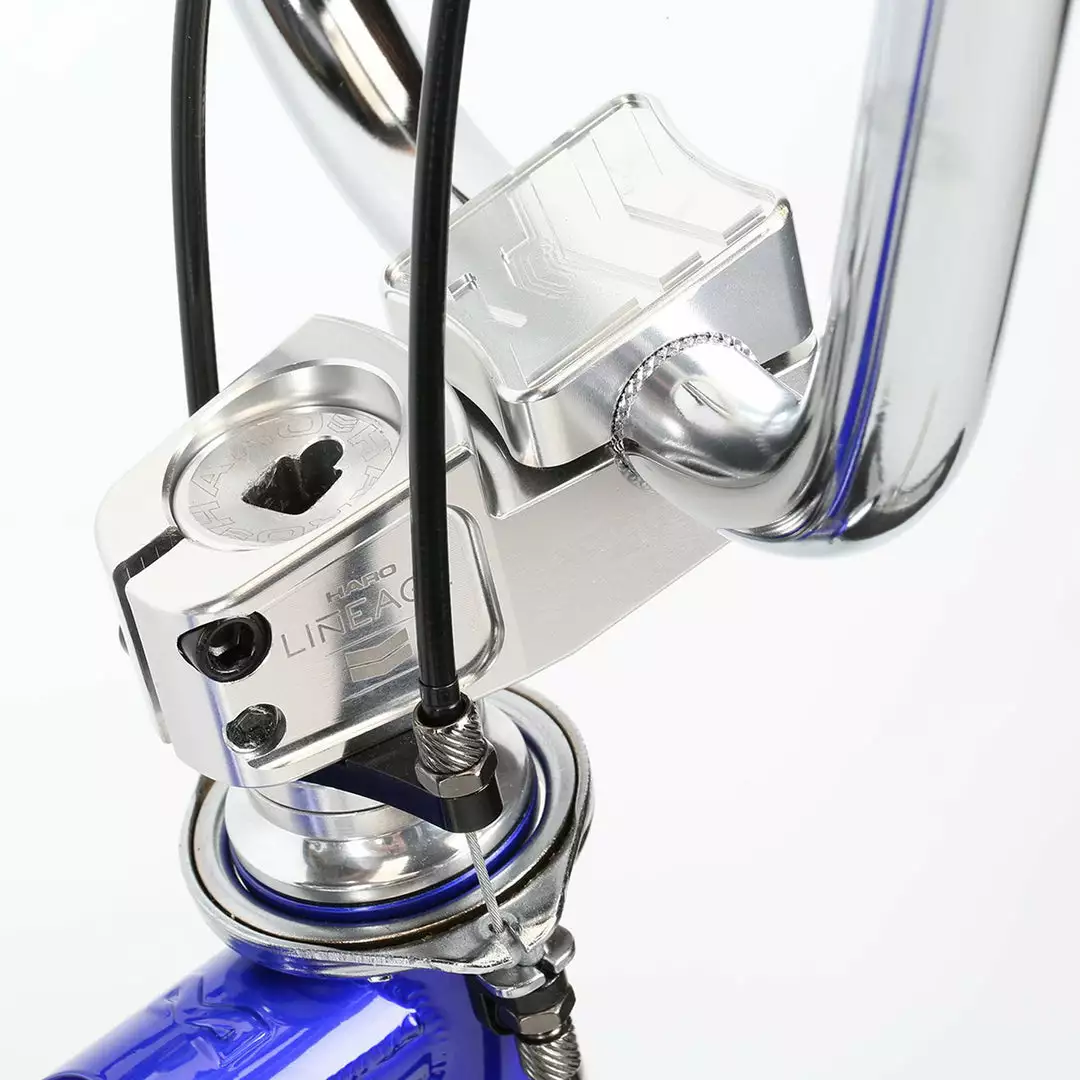

• STEM: Lineage Hevron CNC Alloy top load stem

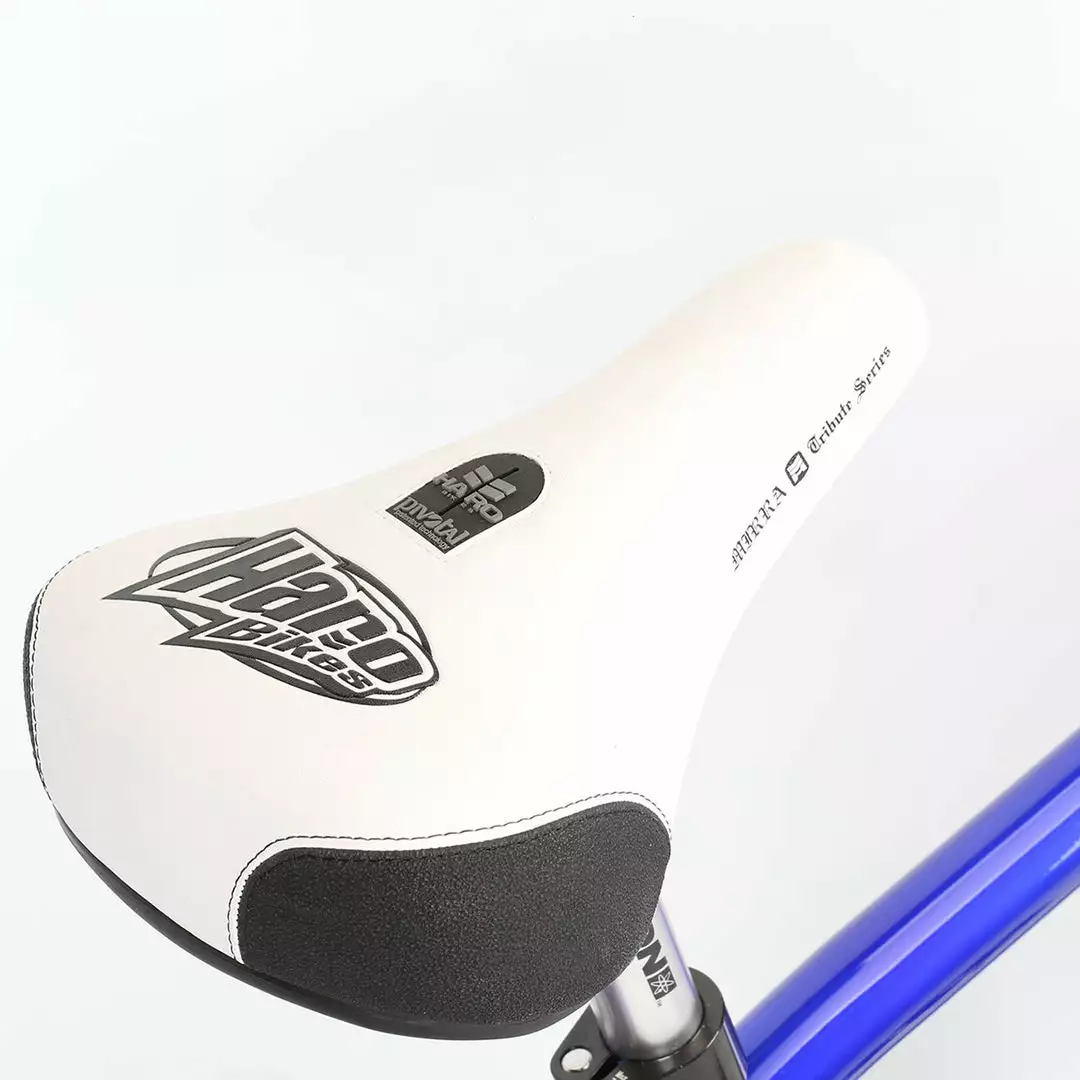

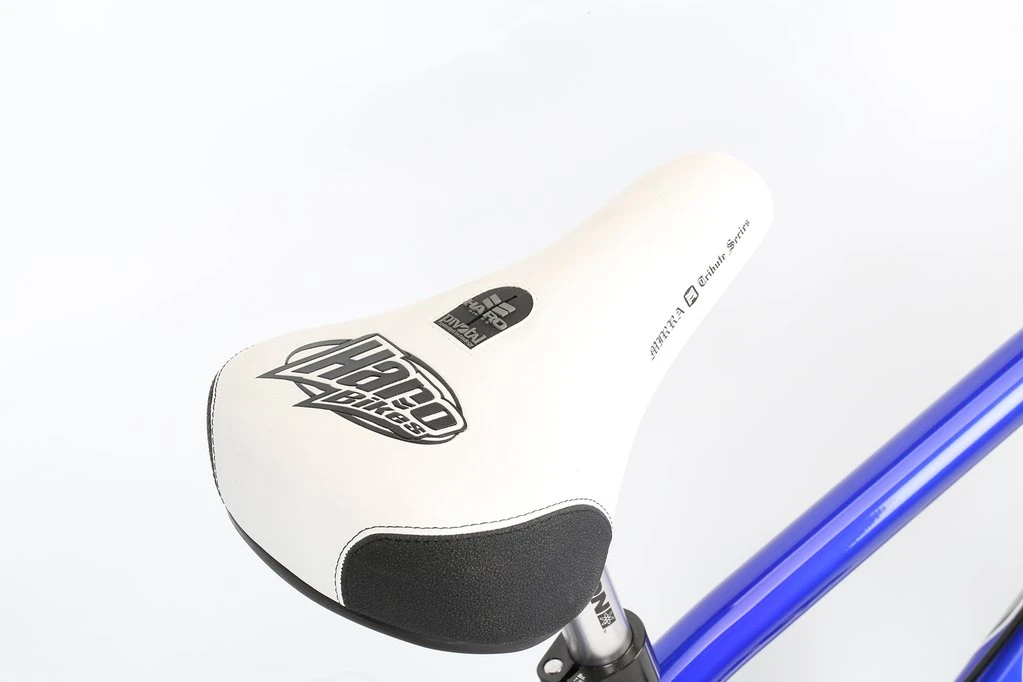

• SEAT: Mirra saddle padded Pivotal seat
• SEAT POST: Alloy Pivotal post
• PEGS: CNC alloy pegs x 4

GEOMETRY & SIZING

Size: 20.5

1. Head Angle: 75°
2. Seat Angle: 71.5°
3. Top Tube: 20.5 (520 mm)
4. Seat Tube: 0 (mm)
5. Chainstay: 13.9 (352 mm)
6. BB Height: 11.5 (293 mm)
7. Stand Over: 21.5 (546 mm)

Size: 21

1. Head Angle: 75°
2. Seat Angle: 71.5°
3. Top Tube: 21 (533 mm)
4. Seat Tube: 0 (mm)
5. Chainstay: 13.9 (352 mm)
6. BB Height: 11.5 (293 mm)
7. Stand Over: 21.5 (546 mm)

SIZING GUIDELINES

Haro Mirra Pro Tribute Sizing Guideline

Size	Age	Rider’s Height
Size: 16″ WHEEL	Age: 5 – 7	Rider’s Height: 3’6″ – 3’10”
Size: 18″ WHEEL	Age: 6 – 8	Rider’s Height: 3’10” – 4’2″
Size: 18.5″ TOP TUBE 20″ WHEEL	Age: 7 – 9	Rider’s Height: 4’3″ – 4’8″
Size: 19.5″ TOP TUBE 20″ WHEEL	Age: 10 – 12	Rider’s Height: 4’5″ – 4’10”
Size: 20.5″ TOP TUBE 20″ WHEEL	Age: 13+	Rider’s Height: 5’3″ – 5’9″
Size: 20.75″ TOP TUBE 20″ WHEEL	Age: 13+	Rider’s Height: 5’4″ – 5’9″
Size: 21″ TOP TUBE 20″ WHEEL	Age: 13+	Rider’s Height: 5’9″ – 6′
Size: 24″ WHEEL	Age: 13+	Rider’s Height: 5’9″ – 6′
