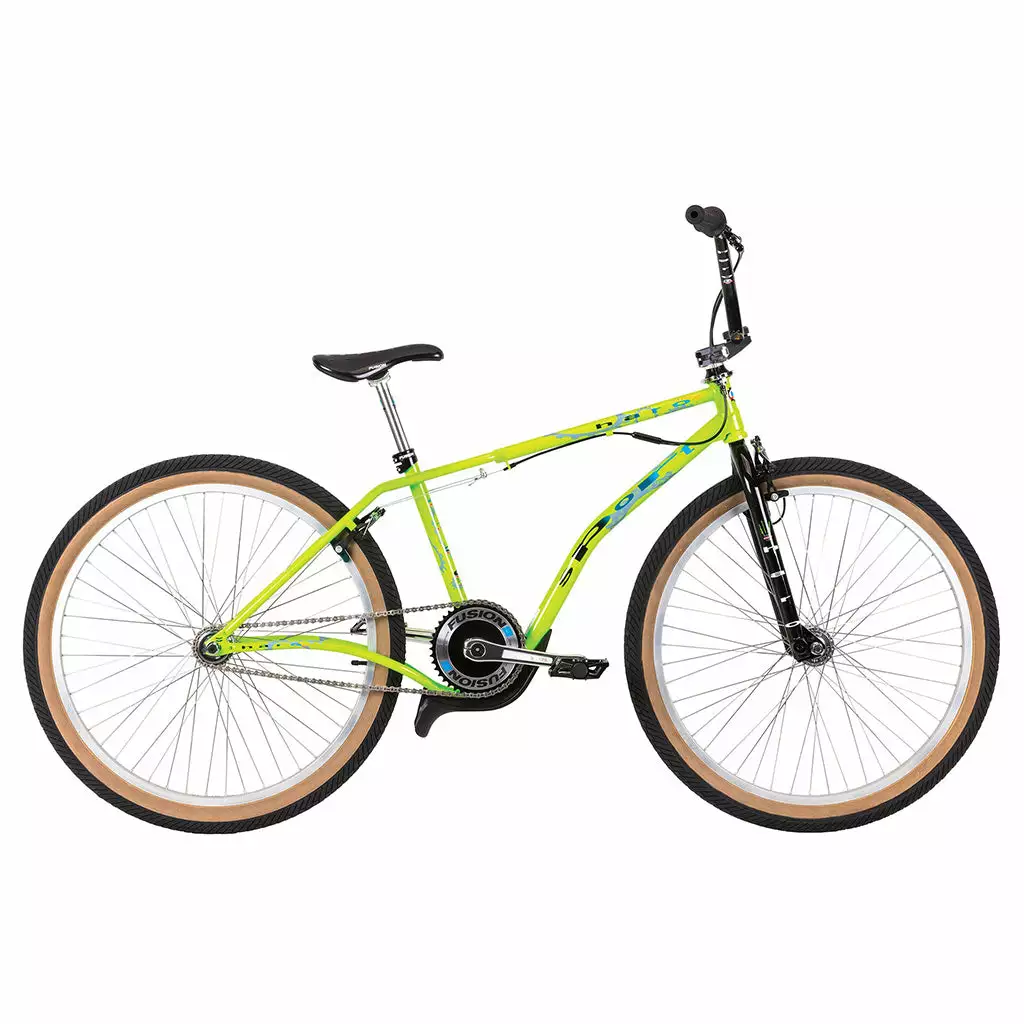

Haro Lineage Sport Bashguard 26″ BMX Freestyle Bike-Neon Green

The Haro Lineage Sport Bashguard 26” BMX Freestyle Bike-Neon Green is a look to the past with its tires firmly planted in the present. Imagine the incredible bikes from the golden age but made with today’s technology and manufacturing perfection. From the alloy gyro with Teflon bearing to the four-piece kneesaver bars and the throwback pedals you will be the envy of all the land. The bike doesn’t just look pretty, it is in fact about as high end as you can get with a complete freestyle bike.

FEATURES

• 100% chromoly Lineage Sport 26″ frame with platform, Mid BB shell, integrated head tube and 1988 style vintage platform dropouts
• 100% chromoly 26″ fork with internal threaded steer tube, tapered legs, 1991 style vintage dropouts, 990 brake mounts with internal brake cable routing
• 100% heat treated and butted chromoly Lineage Kneesaver bars 8.5″ with Haro Lineage CNC alloy top load stem
• Lineage heat treated 3-piece alloy 175mm cranks with Haro Fusion Disc 41T CNC alloy bolt drive sprocket and sealed Mid BB
• 41/17 gearing
• Fully sealed wheels with Lineage high flange hubs and double-wall alloy rims with satin finish
• Kenda Kranium tires 26 x 2.21″ front and rear
• Haro Lineage padded Pivotal stealth seat with alloy Lineage Pivotal fluted post
• Haro Fusion alloy pedals
• CNC alloy gyro with Teflon bearing
• Haro Team grips
• KMC K710SL super light chain
• Dia-Compe “Hombre” FS996 brakes with Tech 77 levers front and rear
• Haro Lineage alloy seat post clamp

SPECIFICATION

• FRAME: Lineage Sport Bashguard 26″ frame – 22.5″ full crmo; internal h/t crmo – with removable rotor tab mounting holes; removable brake mounts.
• FORK: Haro Fork with 990 mounts and internal cable routing; 28mm offset; 3/8″ axle; cr-mo steerer; tapered fluted legs
• WEIGHT: 34.6 lbs
• CRANKS: Haro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle
• BOTTOM BRACKET: Sealed MID 22mm BB
• SPROCKET: Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2″ x 1/8″ x 41t ; solid ring w/ machined teeth, included sprocket adapter
• GEARING: 25/9
• PEDALS: Haro Fusion; alloy pedal body; crmo axle
• CHAIN: KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite
• TIRES: Kinda Kranium tire; 26×2.25; 60 max psi
• FRONT HUB: 48h alloy hub body; 3/8″x100wx155l; crmo 155mm straight axle; 2 sealed bearings
• REAR HUB: Haro Lineage sealed bearings; 17t Freewheel; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts
• RIMS: Haro Lineage 26×1.75″; 48h; (w200) (double wall welded joint)
• BRAKE: Dia-Compe fs996 “hombre” u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts

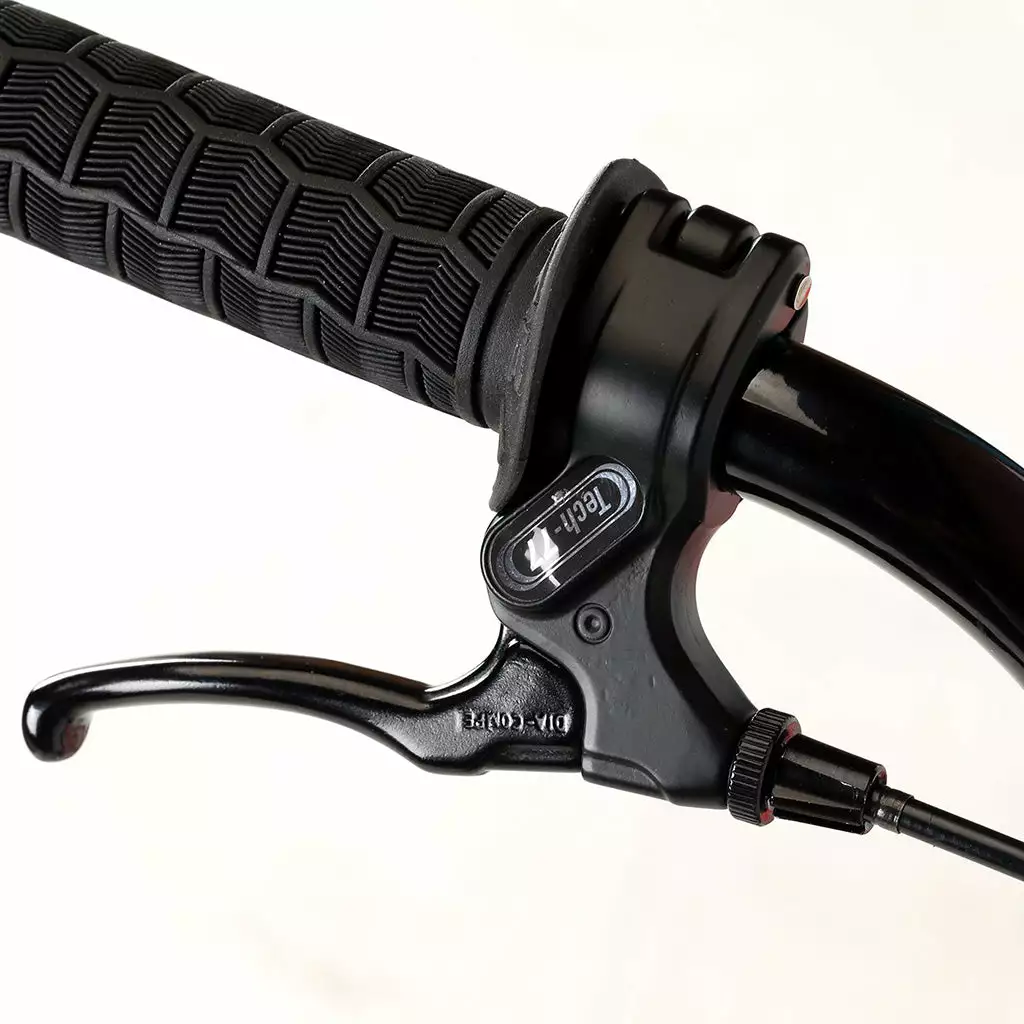

• BRAKE LEVER: Dia-Compe “tech-77” lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever
• ROTOR: Teflon bearing gyro – full cnc 6061 t6 included a-plate
• GRIPS: Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft).

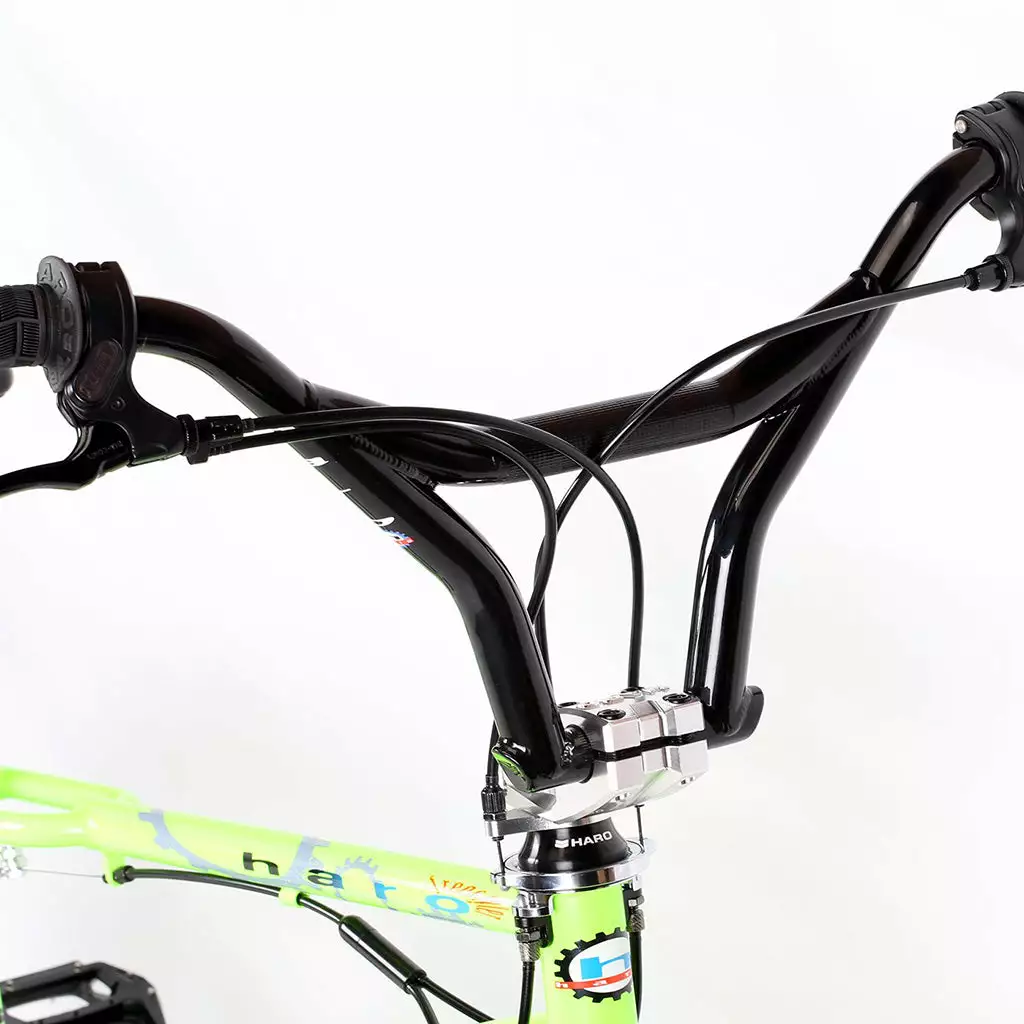

• HANDLEBAR: Lineage kneesaver bar 8.5″; 100% heat treated; multi-butted

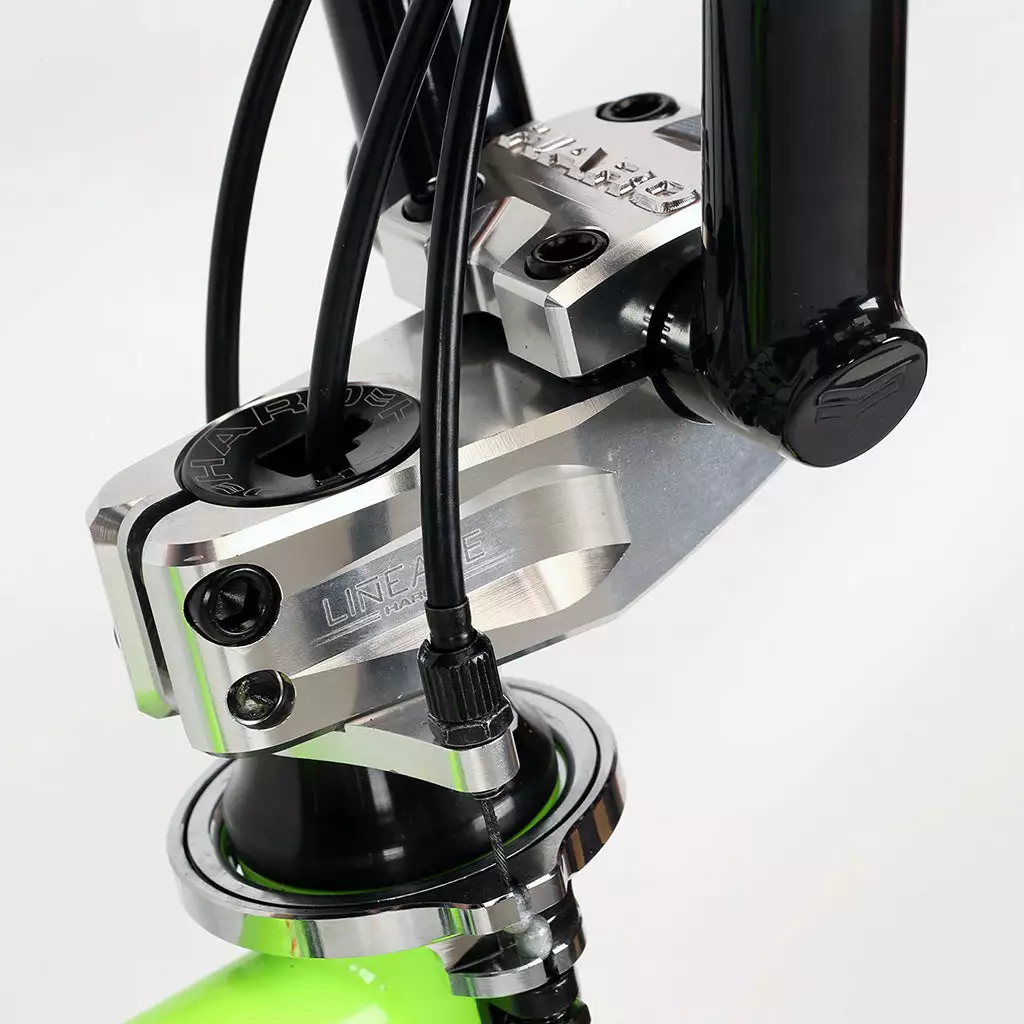

• STEM: Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm
• HEADSET: Sealed Integrated, 1 1/8″

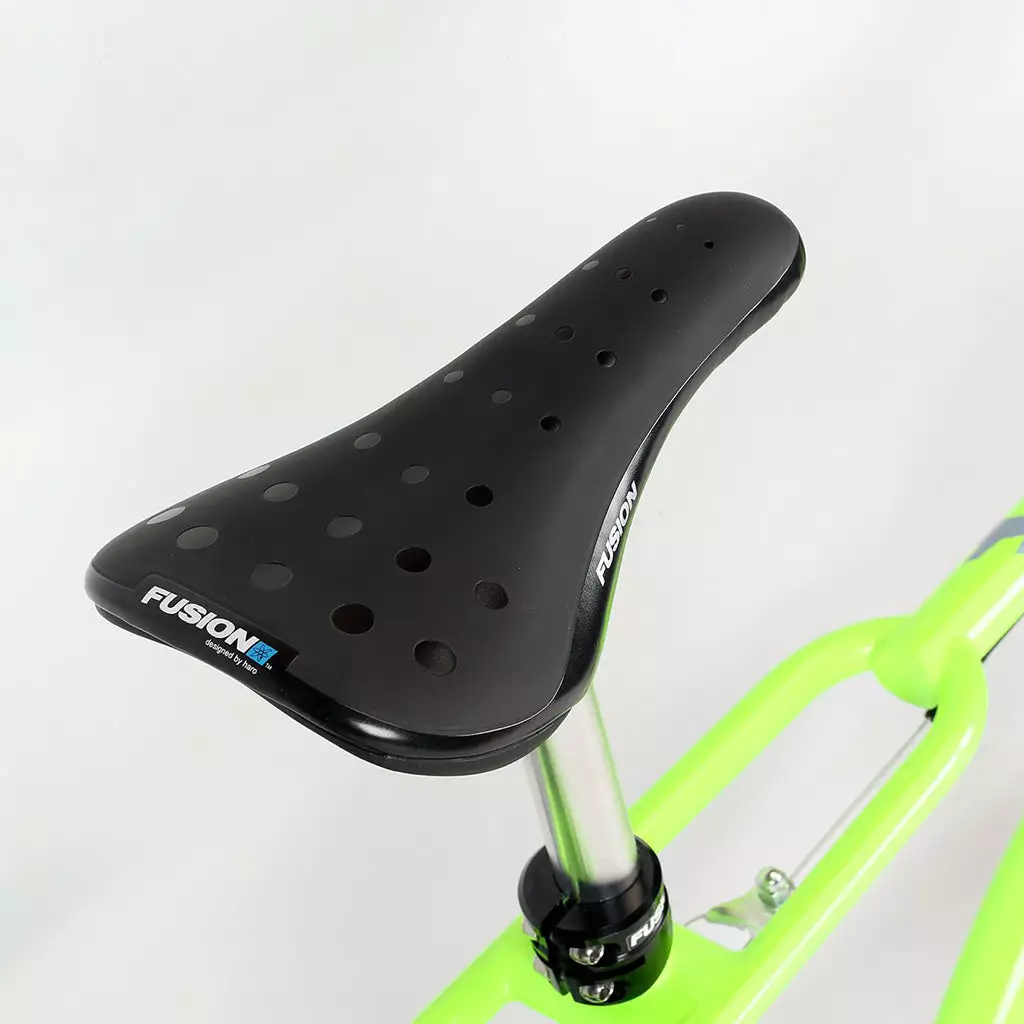

• SEAT: Haro Fusion slim stealth pivotal seat
• SEAT POST: Haro Fusion stealth pivotal seat post; 25.4 x 300mm
• SEAT POST CLAMP: Haro Fusion twintorc clamp; alloy 6061
• PEGS: 6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs

GEOMETRY

• SIZE: 22.5
• HEAD ANGLE: 73°
• SEAT ANGLE: 69°
• TOP TUBE: 21 (571.5 mm)
• SEAT TUBE: 10.2 (368 mm)
• CHAINSTAY: 13.7 (461 mm)
• BB HEIGHT: 11.5 (293 mm)
• STAND OVER: 21.5 (546 mm)
