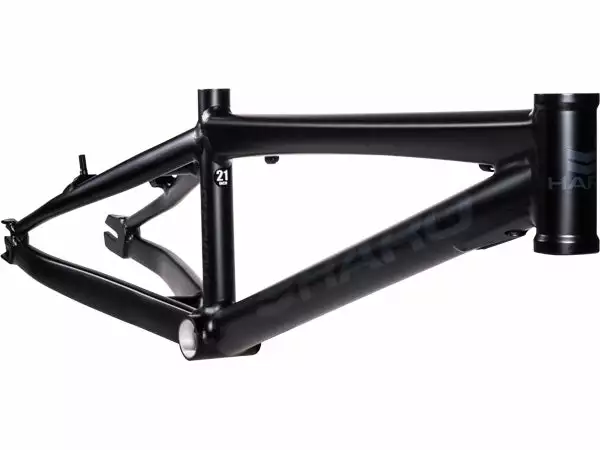

Haro Blackout BMX Race Frame-Matte Black-Pro XL Plus

The Haro Blackout frame features 7000 series aluminum and air formed tubing.

FEATURES

• 7000 series aluminum
• Triple butted downtube
• Air formed triple butted top tube

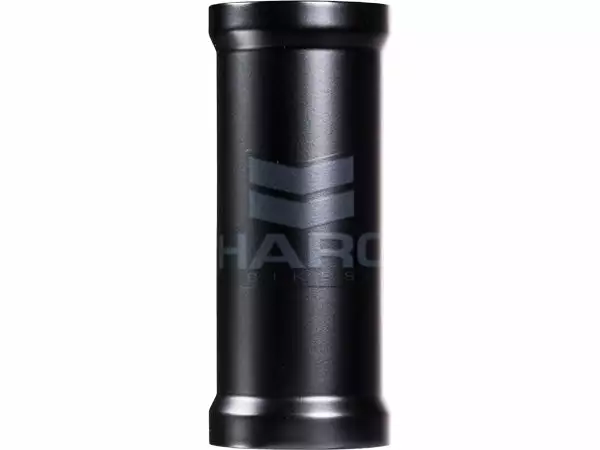

• Integrated head tube

SPECIFICATION

• USE: Race
• MATERIAL: 7000 aluminum
• HEADSET STYLE: Integrated
• BRAKE MOUNTS: V-Brake
• BB SHELL: Euro

GEOMETRY

Haro Blackout BMX Race Frame-Matte Black-Pro XL Plus Geometry Chart

SIZE	TT	CS	HS	HA	SA	SC	SP	WEIGHT
SIZE: PRO	TT: 20.75″	CS: 14.75″	HS: 1 1/8″	HA: 74°	SA: 72°	SC: 1 1/4″ (31.8mm)	SP: 27.2mm	WEIGHT: 3lbs (6.1oz)
SIZE: PRO XL	TT: 21″	CS: 15.2″	HS: 1 1/8″	HA: 74°	SA: 72°	SC: 1 1/4″ (31.8mm)	SP: 27.2mm	WEIGHT: 3lbs (6.1oz)
SIZE: PRO XL+	TT: 21.25″	CS: 15.2″	HS: 1 1/8″	HA: 74°	SA: 72°	SC: 1 1/4″ (31.8mm)	SP: 27.2mm	WEIGHT: 3lbs (7oz)
SIZE: PRO XXL	TT: 21.5″	CS: 15.2″	HS: 1 1/8″	HA: 74°	SA: 72°	SC: 1 1/4″ (31.8mm)	SP: 27.2mm	WEIGHT: 3lbs (7.4oz)
