Sale!

Haro Annex Si-Metallic White RACE BIKES

Original price was: $249.95.Current price is: $92.99.

SKU: haro-3527033126984 Categories: BIKES, RACE BIKES Tags: 26380828744out-of-stock, Bmx Bikes Complete, Bmx-race, Bmx-race-bikes, Discontinued, FACEBOOK ISSUE, Freeship, Haro

Elevate Your Shopping Experience
The quality solution for all your needs.
Safeguard Your Shopping Experience
Your needs, our top priority.

Description
Reviews (0)

PRODUCT DETAILS

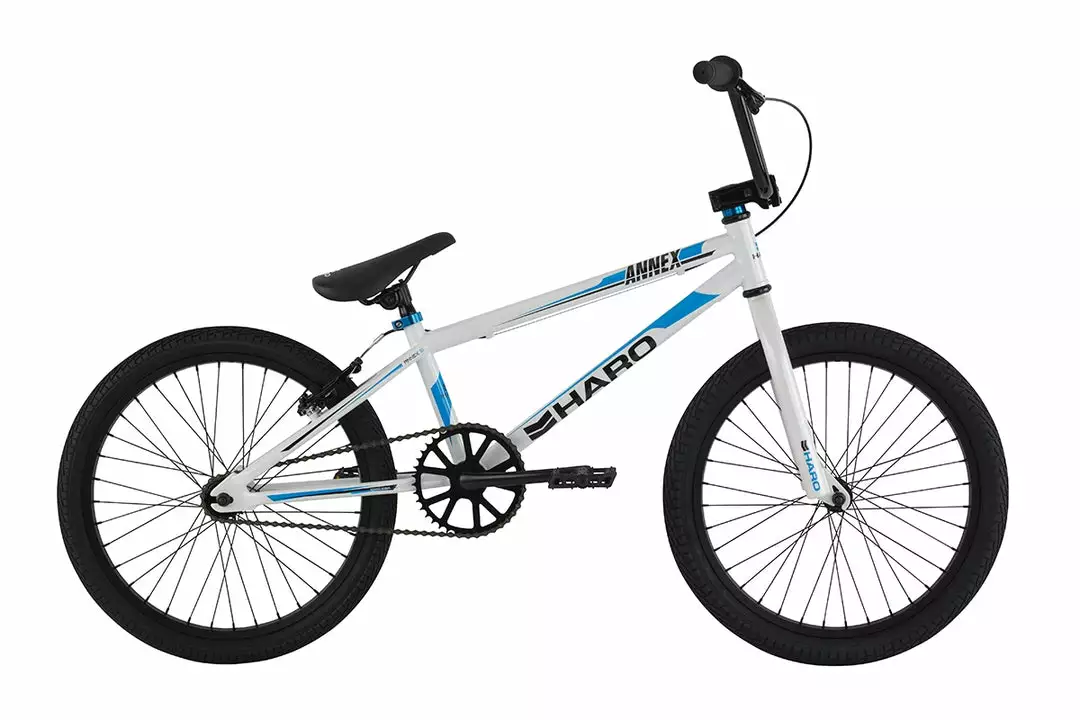

The 2016 Haro Annex Si complete BMX race bike is the perfect neighborhood bike or starter race bike for new riders on a tight budget.

DECAL/NAME PLATE	SM WATER TRANSFER DECAL
FRAME	KSK #FRB0061; H/T 403834 HI-TEN; T/T: 31.81.2 HI-TEN; S/T: 28.61.4 HI-TEN; D/T 34.91.2T HI-TEN; S/S 191.2T HI-TEN; C/S 191.2 HI-TEN; BB: 57.551.5*68L HI-TEN; END: 6.0T HITEN; V-BRAKE PIVOTS ON S/S; HARO CHEVRON LOGO STAMPED ON DROPOUTS
FORK	KSK #FKB030161; 20″ BMX; 1-1/8″ THREADLESS 100% HI-TEN STEEL TIG PULSE, 31.8 DIAMETER LEGS NO-TAPER; RAW FINISH; 25mm OFFSET
HEAD SET	#FP-H801S; AHEADSET 1-1/8″ THREADLESS TOP CAP W/STAR NUT
HEADSET SPACERS	MH-561A; 18mm; 13mm
TOP CAP	#FP-HW-20; FLAT TOP CAP W/STAR NUT,W/O 梅花华司; NO LOGO
SPROCKET/SPIDER	CHUAN WEI; HARO CW-1350 STAMPED STEEL SPROCKET; 1/21/8 40T BLACK; NO LOGO.
CRANK SET	SS-902; 165mm ; NO LOGO
BB-SET	SS-905; ONE SIDE SHIELD; NO LOGO
HANDLEBAR	#HB-B201 7.5″ BAR; 635X190X130mm; 22.2 DIAMETER X 1.8t HI-TEN; NO STICKER OR LOGO
STEM	HARO 2014 OE FRONT-LOAD STEM; #ITC-XC967; MELT FORGED; 52MM EXT; 22.2MM BAR BORE; 32MM STACK HEIGHT; 28.6MM STEER TUBE BORE; HARO LOGO ON FACE PLATE – LOGO SURFACE MACHINED AFTER ED OR PAINT
GRIP	VELO GRIP; MODEL #VLG 410; 130MM LENGTH; WITH FLANGE (LOW); 25 DUROMETER (SOFT)
H/BAR END PLUG	N/A
F/HUB	KT-122F STEEL; 3/8″X14GX36HX100X145MM AXLE, LOOSE BALL; W/O LOGO
R/HUB	KT-116R STEEL; 3/8″*14GX36HX110X155MM AXLE, NUTTED, LOOSE BALL; W/O LOGO
RIMS	#T5; 20″ X 1.5″; 36H A/V
SPOKES	14G*36H UCP W/ 12MM STEEL NIPPLE
FRONT TIRE/TUBE/STRIP	KENDA KONTACT #K841; 20X1.95; ALL BLACK; TUBE 20″1.95 A/V BK; RIM STRIP 20″16mm
REAR TIRE/TUBE/STRIP	KENDA KONTACT #K841; 20X1.75; ALL BLACK; TUBE 20″1.75 A/V BK; RIM STRIP 20″16mm
F/BRAKE
R/BRAKE	PROMAX MODEL #MV-295L; V-BRAKE; ARM LENGTH 95MM; 60MM ANGLE ADJUSTMENT PADS 260MW; BLACK; BLACK HARDWARE
BRAKE LEVER	PROMAX MODEL #XL-378; CAST ALUMINUM LEVER AND BRACKET; 2 FINGER LEVER; BLACK BRACKET; BLACK LEVER; BLACK HARDWARE; BLACK CABLE BARRELL ADJUSTER
BRAKE CABLE/CASING	TEKTRO 2P CASING/SLICK TYPE INNER CABLE/MACHINED END CAPS
ROTOR
FREEWHEEL	LIDA #A8K-16; 1/2″ X 1/8″ X 16T; BROWN
CHAIN	410A; 1/2″1/8″86 LINKS
CHAINGUARD	C-068V; 20″ BMX PLASTIC SMOKE W/BLK CLAMP; 長度錯誤
SADDLE	VELO SADDLE #VL-7083; 0-1 STITCH PATTERN; VINYL TOP WITH EMBOSSED LOGO; FRONT AND REAR PLASTIC BUMPERS; 8MM HI-TEN STEEL RAILS; INCLUDE SEAT CLAMP/GUTS
SEAT POST	SP-501S; DIAM: 25.4*250mm NO LOGO
SEAT CLAMP	MX-28; HARO SOHC 28.6mm; NO LOGO
PEDALS	#B123; PLASTIC PEDAL BODY W/ CRMO 1/2″ AXLE; W/ CPSC REFLECTORS
PEGS
REFLECTORS	RR-316 BS REFLECTOR F/R WHEELS; RR-180-BTW FOR FRONT H/BAR, RR-180-BTR FOR REAR SEAT POST
MISC
TRAINNING WHEEL
PAD SET	N/A
F/REF. BRKT	B-10/B-3 FRONT FOR HANDLEBAR CROSS BAR , REAR FOR SEAT POST
R/REF. BRKT	B-10/B-3 FRONT FOR HANDLEBAR CROSS BAR , REAR FOR SEAT POST
F. AXLE SAFETY RET	INCLUDED W/FRONT HUB
BOLTS	N/A
