Sale!

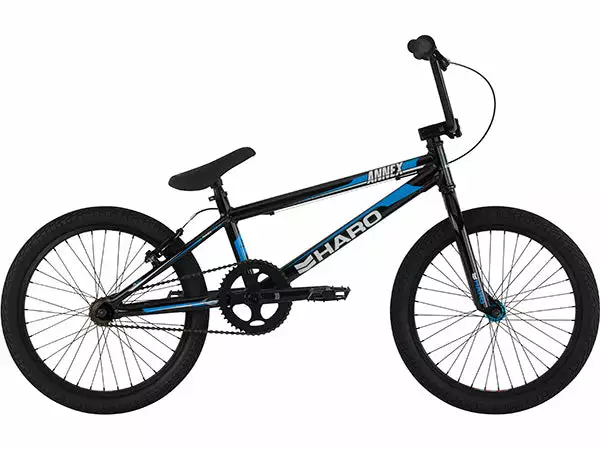

Haro Annex Race Bike-Pro XL-Gloss Black

Original price was: $399.95.Current price is: $91.99.

SKU: haro-3525737283656 Categories: BIKES, RACE BIKES Tags: 26380828744out-of-stock, Bmx Bikes Complete, Bmx-race, Bmx-race-bikes, Discontinued, FACEBOOK ISSUE, Haro, Pro-proxl-proxxl

Elevate Your Shopping Experience
The quality solution for all your needs.
Safeguard Your Shopping Experience
Your needs, our top priority.

Description
Reviews (0)

PRODUCT DETAILS

DECAL/NAME PLATE	SM WATER TRANSFER DECAL
FRAME	FRAME DRAWING #KSK-FRB0059260; 21″ T/T; Alloy tubes, v-brake style brake mounts on seat stays, flat (2D) rear dropout for 3/8″ axle – NEW SMALLER SHAPE, THREADED EURO BB, no internal head tube; 27.2 Seat Tube ID.
FORK	KSK FORK DRAWING #FKB110 20″161282314*100W/oPivot,”#4″LG; THREADLESS 1-1/8″ 100% CRMO, 31.8 x 1.4T NON-TAPERED LEG; STEERER LENGTH 161MM;3/8″ DROPOUT SLOT
HEAD SET	#VP-A71; AHEADSET 1-1/8″ THREADLESS，9PCS
HEADSET SPACERS	2 X 5MM ALLOY BLACK ANODIZED SPACER
TOP CAP/STAR NUT	#FP-HW-20; FLAT TOP CAP W/STAR NUT,W/O 梅花华司; NO LOGO
SPROCKET/SPIDER	CHUAN WEI MODEL #CW-1488M-44T; 5MMx44T ALLOY CHAINRING; SAND BLAST ANODIZED
CRANK SET	#BFC-21A; 3-PC 175MM; HI-TEN FORGED HEAD AND PEDAL BOSSES; 11,9/16″ HOLE; HARO CHEVRON LOGO
BB-SET	CHUAN WEI MODEL #AX02-EBA; 19MM CR-MO SPINDLE- 8 SPLINE INTERFACE; 4 EURO SEALED BEARINGS; ALLOY CUP AND CONE WASHERS; INCLUDE BEARING SPACER, SPROCKET ADAPTER AND WASHERS, SPINDLE BOLTS
HANDLEBAR	EVG PROMAX #HB-B201 (W6850); HARO 8″ OE HANDLEBAR; STEEL BAR; 8″ RISE x 27″ WIDE; REVISED CROSSBAR 19MM*1.4T
STEM	HARO 2014 OE FRONT-LOAD STEM; #ITC-XC967; MELT FORGED; 52MM EXT; 22.2MM BAR BORE; 32MM STACK HEIGHT; 28.6MM STEER TUBE BORE; HARO LOGO ON FACE PLATE – LOGO SURFACE MACHINED AFTER ED OR PAINT
GRIP	VELO GRIP; MODEL #VLG 410; 130MM LENGTH; WITH FLANGE (LOW); 25 DUROMETER (SOFT)
H/BAR END PLUG	N/A
F/HUB	KT HUB; MODEL #KT-516F; 36H LOW FLANGE ALLOY SHELL; 3/8″ X 140MM LENGTH AXLE; LOOSE BALL
R/HUB	KT HUB; MODEL #KT-5V4R; 36H LOW FLANGE ALLOY SHELL; 3/8″ X 155MM LENGTH AXLE; LOOSE BALL; THREAD BC 1.37
FRONT RIM	#AS26; SINGLE WALL PIN JOINT RIM; 20″ * 1.75″*36H; ALL BLACK ANODIZED NO EYELETS
REAR RIM	#AS26; SINGLE WALL PIN JOINT RIM; 20″ * 1.75″*36H; ALL BLACK ANODIZED NO EYELETS
SPOKES	14 GAUGE STEEL BLACK; 12MM BLACKNIPPLE; LACED 3 CROSS
FRONT TIRE/TUBE/STRIP	KENDA KONTACT #K841; 20X2.25; ALL BLACK; TUBE 20″2.25 A/V BK; RIM STRIP 20″16mm
REAR TIRE/TUBE/STRIP	KENDA KONTACT #K841; 20X1.95; ALL BLACK; TUBE 20″1.95 A/V BK; RIM STRIP 20″16mm
F/BRAKE	N/A
R/BRAKE	PROMAX MODEL #MV-295L; V-BRAKE; ARM LENGTH 95MM; 60MM ANGLE ADJUSTMENT PADS 260MW; BLACK; BLACK HARDWARE
BRAKE LEVER	PROMAX MODEL #XL-378; CAST ALUMINUM LEVER AND BRACKET; 2 FINGER LEVER; BLACK BRACKET; BLACK LEVER; BLACK HARDWARE; BLACK CABLE BARRELL ADJUSTER
BRAKE CABLE/CASING	PROMAX 2P CASING/SLICK TYPE INNER CABLE
ROTOR	N/A
FREEWHEEL	A8K-16, 1/2″ X 1/8″ X 16T BROWN
CHAIN	KMC Z410A BROWN / BROWN; 1/2X1/8X88L
CHAINGUARD	#CN-068N; 20″ BMX CH PLASTIC W/CLAMP
SADDLE	VELO SADDLE #VL-7122; BLACK, W/4MM PADDING, ANODIZED BLACK ALLOY POST 27.2 * 200MM W/POST LOCK
SEAT POST	ANODIZED BLACK ALLOY POST 27.2 * 200MM W/POST LOCK ,W/O LOGO (INCLUDED WITH SEAT)
SEAT CLAMP	ProMax MX38-RT 31.8MM; SAND BLAST BLACK W/ NO LOGO
PEDALS	VP-565 Aluminum; Ball Bearing; 9/16″; NO LOGO
CHAIN TENSIONER	N/A
PEGS	N/A
REFLECTORS	RR 180 + RR 570; AS REQUIRED TO MEET CPSC REQUIREMENT; WHITE WHEEL; WHITE FORWARD FACING; RED REAR FACING FOR USA. OTHER COUNTRY REQUIREMENTS MAY DIFFER AND SHOULD BE FOLLOWED FOR EACH COUNTRY
MISC	N/A
F/REF. BRKT	TO MATCH YUNG FANG B-10 FOR HANDLEBAR CROSS BAR
R/REF. BRKT	TO MATCH YUNG FANG B-4 FOR 30.6 SEAT POST
F. AXLE SAFETY RET	BLACK
BOLTS
