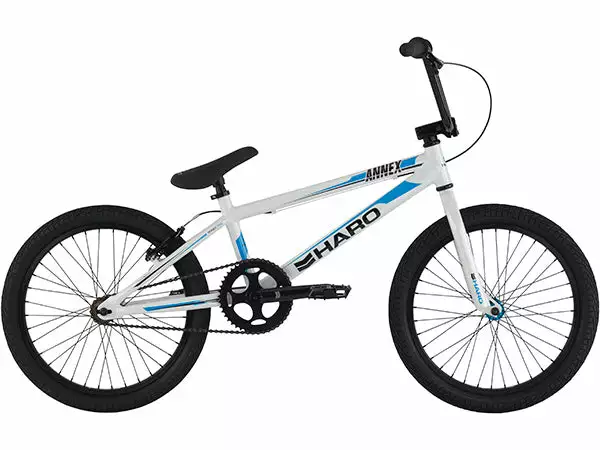

Haro Annex Race Bike-Pro-Metallic White

Top Tube

 20.5″

Head Angle

74°

Seat Angle

72°

BB Height

11.5″

Chainstay

14.37″

Frame

 FRAME DRAWING #FRB0058260; 20.5″ T/T; Alloy tubes, v-brake style brake mounts on seat stays, flat (2D) rear dropout for 3/8″ axle – NEW SMALLER SHAPE, THREADED EURO BB, no internal head tube; 27.2 Seat Tube ID.

Fork

 KSK FORK DRAWING #FKB110 20″161*282*314*100W/oPivot,”#4″LG; THREADLESS 1-1/8″ 100% CRMO, 31.8 x 1.4T NON-TAPERED LEG; STEERER LENGTH 161MM;3/8″ DROPOUT SLOT

Colors

 Metallic White

Headset

 #VP-A71;  AHEADSET 1-1/8″ THREADLESS，9PCS

Stem

 HARO 2014 OE FRONT-LOAD STEM; #ITC-XC967; MELT FORGED; 52MM EXT; 22.2MM BAR BORE; 32MM STACK HEIGHT; 28.6MM STEER TUBE BORE; HARO LOGO ON FACE PLATE – LOGO SURFACE MACHINED AFTER ED OR PAINT

Handlebar

 EVG PROMAX #HB-B201 (W6850); HARO 8″ OE HANDLEBAR; STEEL BAR; 8″ RISE x 27″ WIDE; REVISED CROSSBAR 19MM*1.4T

Grips

 VELO GRIP; MODEL #VLG 410; 130MM LENGTH; WITH FLANGE (LOW); 25 DUROMETER (SOFT)

Seat

 VELO SADDLE #VL-7122; BLACK, W/4MM PADDING, ANODIZED BLACK ALLOY POST 27.2 * 200MM W/POST LOCK

Seat Post

 ANODIZED BLACK ALLOY POST 27.2 * 200MM W/POST LOCK ,W/O LOGO (INCLUDED WITH SEAT)

Seat Post Clamp

 ProMax  MX38-RT 31.8MM; SAND BLAST BLACK W/ NO LOGO

Rims

 #AS26; SINGLE WALL PIN JOINT RIM; 20″ * 1.75″*36H; ALL BLACK ANODIZED NO EYELETS

Front Hub

 KT HUB; MODEL #KT-516F; 36H LOW FLANGE ALLOY SHELL; 3/8″ X 140MM LENGTH AXLE; LOOSE BALL

Rear Hub

 KT HUB; MODEL #KT-5V4R; 36H LOW FLANGE ALLOY SHELL; 3/8″ X 155MM LENGTH AXLE; LOOSE BALL; THREAD BC 1.37

Spokes

 14 GAUGE STEEL BLACK; 12MM BLACKNIPPLE; LACED 3 CROSS

Tires

 KENDA KONTACT #K841; 20X2.25; ALL BLACK; TUBE 20″*2.25 A/V BK; RIM STRIP 20″*16mm

Crankset

 #BFC-21A; 3-PC 175MM; HI-TEN FORGED HEAD AND PEDAL BOSSES; 11,9/16″ HOLE; HARO CHEVRON LOGO

Bottom Bracket

 CHUAN WEI MODEL #AX02-EBA; 19MM CR-MO SPINDLE- 8 SPLINE INTERFACE; 4 EURO SEALED BEARINGS; ALLOY CUP AND CONE WASHERS; INCLUDE BEARING SPACER, SPROCKET ADAPTER AND WASHERS, SPINDLE BOLTS

Pedals

 VP-565 Aluminum; Ball Bearing; 9/16″; NO LOGO

Brake

 PROMAX MODEL #MV-295L; V-BRAKE; ARM LENGTH 95MM; 60MM ANGLE ADJUSTMENT PADS 260MW; BLACK; BLACK HARDWARE

Brake Lever

 PROMAX MODEL #XL-378; CAST ALUMINUM LEVER AND BRACKET; 2 FINGER LEVER; BLACK BRACKET; BLACK LEVER; BLACK HARDWARE; BLACK CABLE BARRELL ADJUSTER

Chain

 KMC Z410A BROWN / BROWN; 1/2X1/8X88L

Gearing

 CHUAN WEI MODEL #CW-1488M-44T; 5MMx44T ALLOY CHAINRING; SAND BLAST ANODIZED
