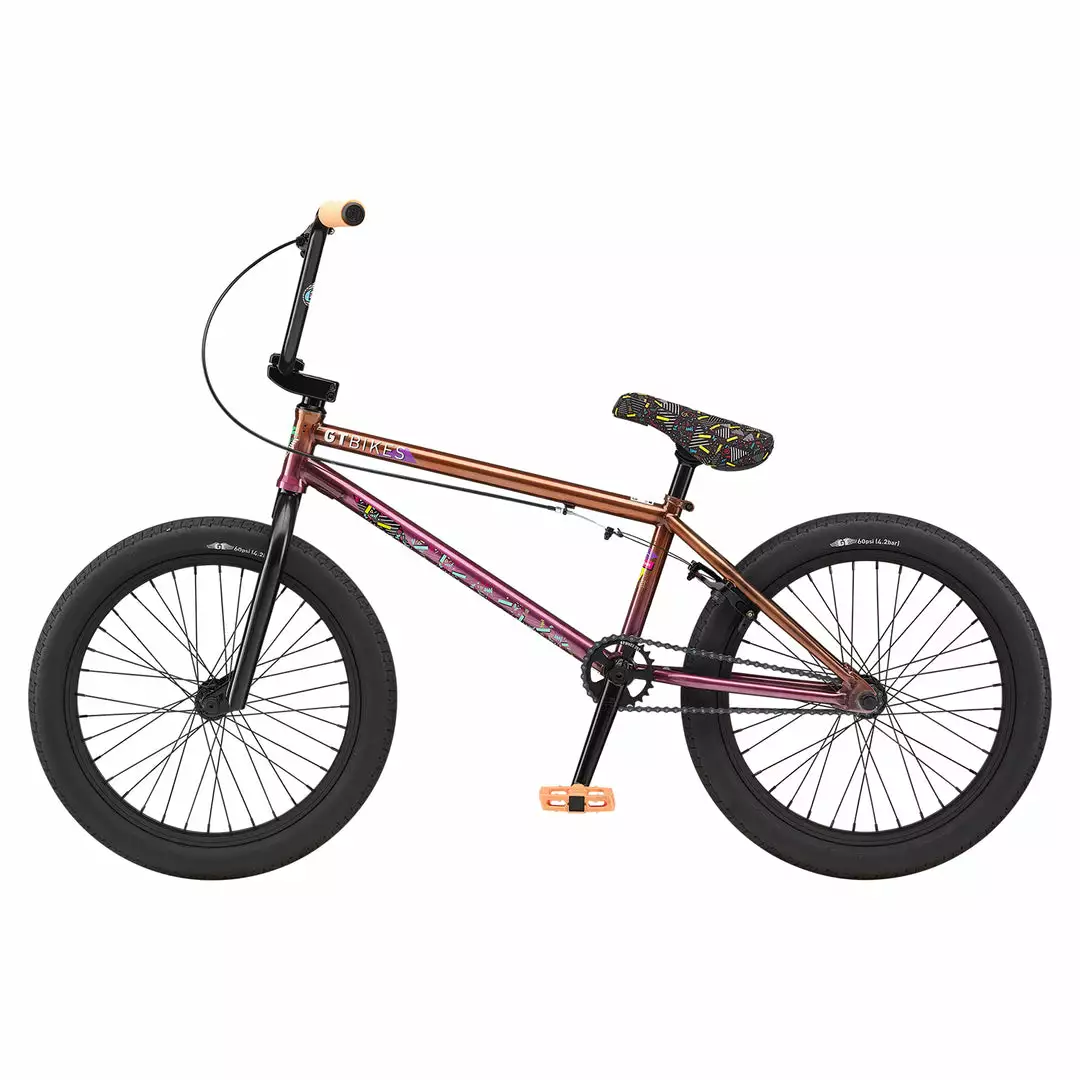

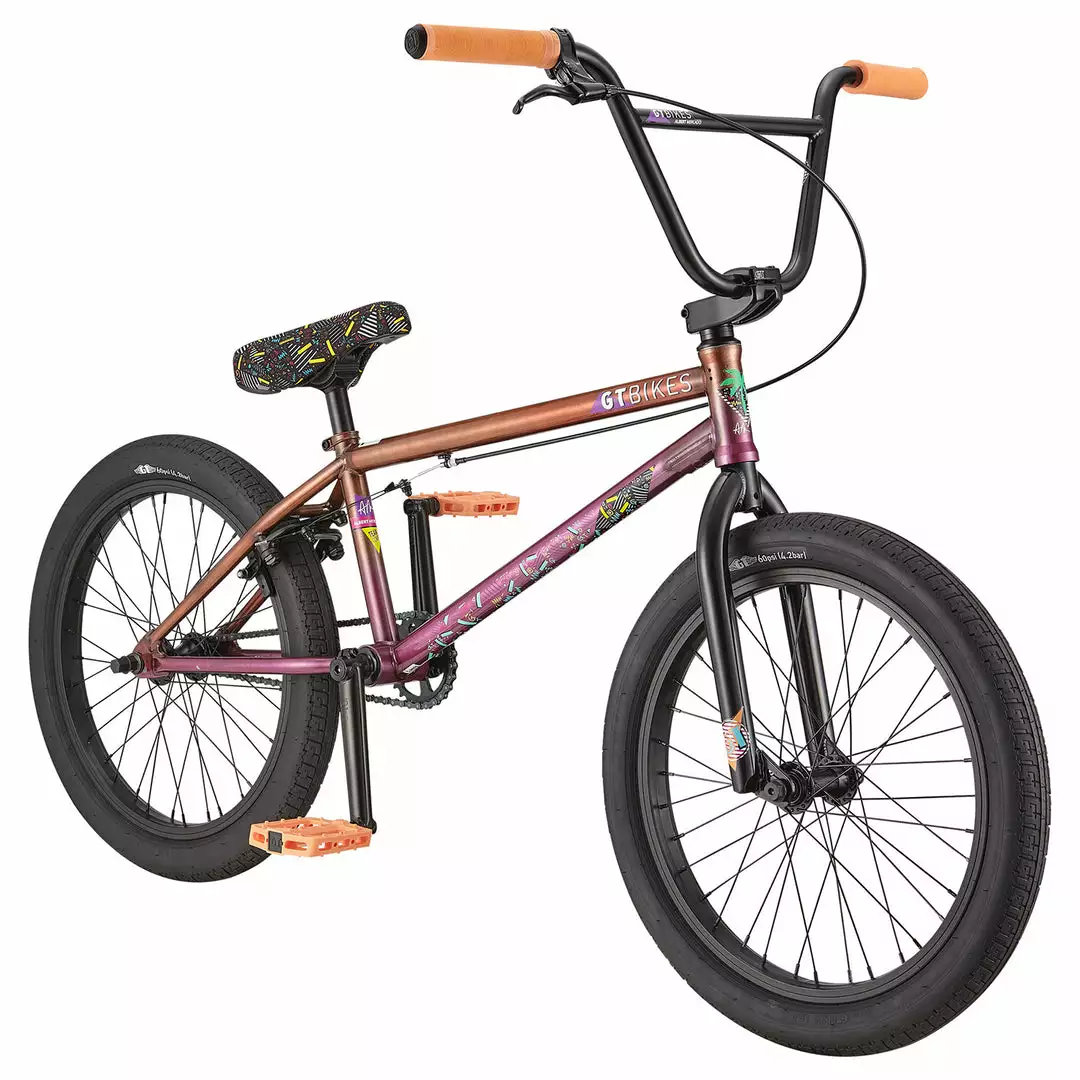

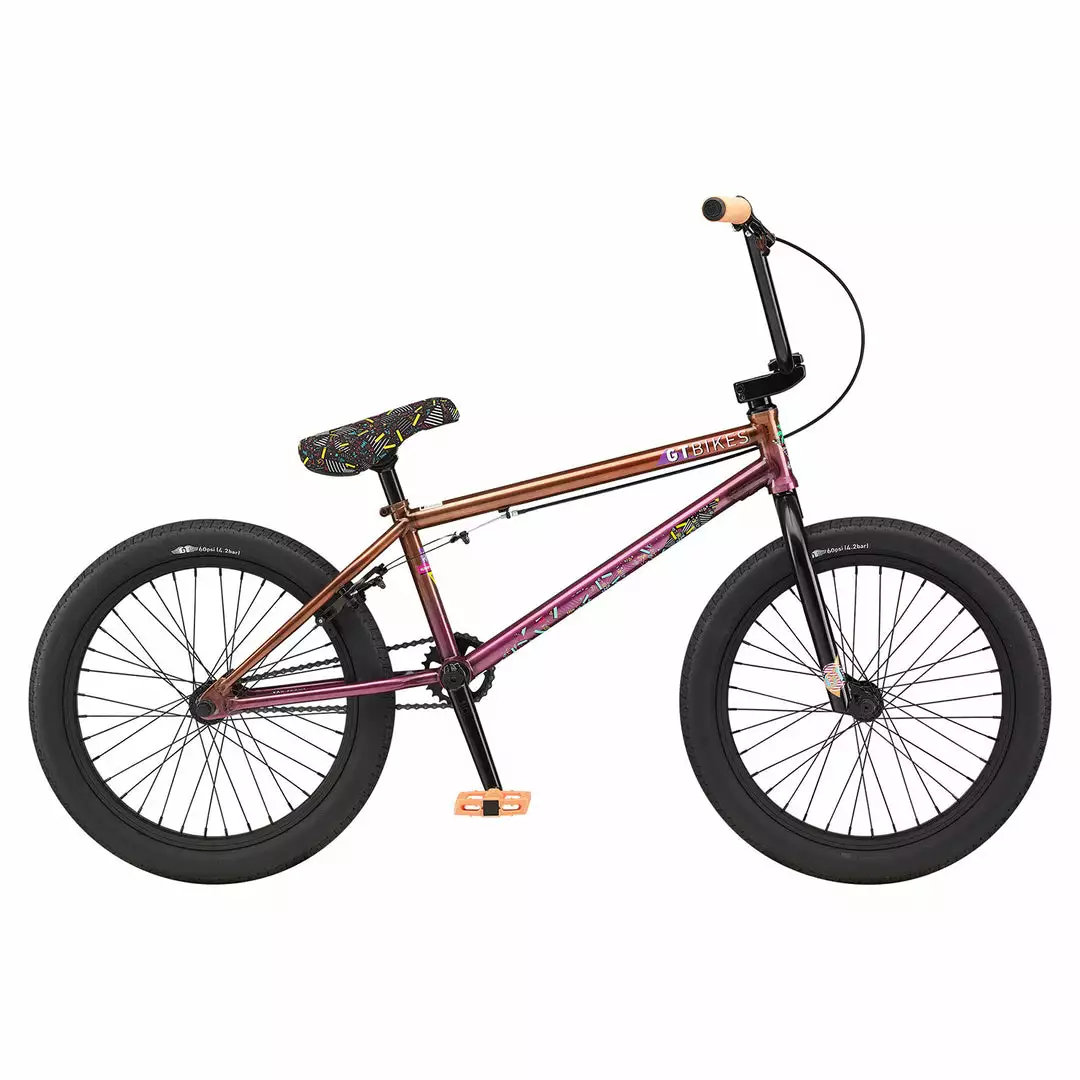

GT Team Comp Mercado 20.75″TT BMX Bike-Peach BIKES

Taking inspiration from the pro team, the Team Comp models are spec’d to push the limits even further. Equipped with a Cr-Mo front triangle and chainstay frame and Cr-Mo 1pc threaded steerer tube fork. Rolling on durable double wall rims front and rear, and a female axle sealed front hub, allowing you to session with confidence.

FEATURES

• 2pc GT Bars
• Mercado New Wave Pivotal
• New Wave Frame Graphics

SPECIFICATIONS

• SIZES: 20.75″
• FRAME: Cr-Mo Front Tri (T/T, D/T, S/T), & Chainstays, DT Gusset, MID BB , Seat Stay U-Brake, Integrated 1-1/8″ H/T w/ Removable Rotor Tabs
• FORK: Cr-Mo 1pc. Threaded Steerer & Tapered Legs, 31mm OffSet, 3/8″ Axle Dropouts
• CHAIN: KMC Z410
• CRANK: GT Power Series Cr-Mo 3pc., 170mm Arms, 19mm x 8T Cr-Mo Spindle, GT 5mm 25T Alloy Chainwheel
• BOTTOM BRACKET: MID Sealed Bearing
• PEDALS: GT Low Profile FS Platform Design
• COG SET: 9T 1pc. Driver
• RIMS: Alloy Double Wall, 36h
• TIRES: GT LP-5 20 x 2.35″
• FRONT HUB: Alloy Body, Sealed Bearings, 36h, 3/8″ x 17mm Female Bolt
• REAR HUB: Alloy Body, 5pcs Sealed Bearings, Cr-Mo 14mm x 165mm Axle, 9T Cassette, 36h, 17mm Nut
• SPOKES: Stainless Steel, 14g
• BRAKES: Aluminum U-Brake w/ Soft Compound Pad
• FRONT BRAKE: Aluminum U-Brake w/ Soft Compound Pad
• REAR BRAKE: Aluminum U-Brake w/ Soft Compound Pad
• BRAKE LEVERS: Alloy Hinged U-type
• HANDLEBAR: GT Freestyle 2pc. 100% Cr-Mo, 9″H x 29″W, 3° Up, 11° Back
• STEM: GT Top Load, 1-1/8″, Cold Forged Cap, 32mm Rise, 50mm
• GRIPS: GT Super Soft 155mm Single Compound w/o Flange w/ GT Removable Plug
• HEADSET: 1 1/8″ Integrated Design, 45X45 Degree Sealed Bearings
• SADDLE: GT Pivotal Padded
• SEAT POST: Alloy Pivotal 25.4 x 200mm

GEOMETRY

1. SEAT TUBE LENGTH: 10
2. TOP TUBE ACTUAL: 20.75
3. HEAD TUBE ANGLE: 75°
4. SEAT TUBE ANGLE: 71°
5. SEAT TUBE LENGTH: 4.5
6. WHEELBASE: 36.2
7. FRONT CENTER: 22.6
8. CHAIN STAY LENGTH: 13.7
9. BB DROP: -1.8
10. BB HEIGHT: 12.0
11. FORK RAKE: 1.2
12. SEAT POST DIAMETER: 25.4mm
13. AXLE TO CROWN: 12.6
