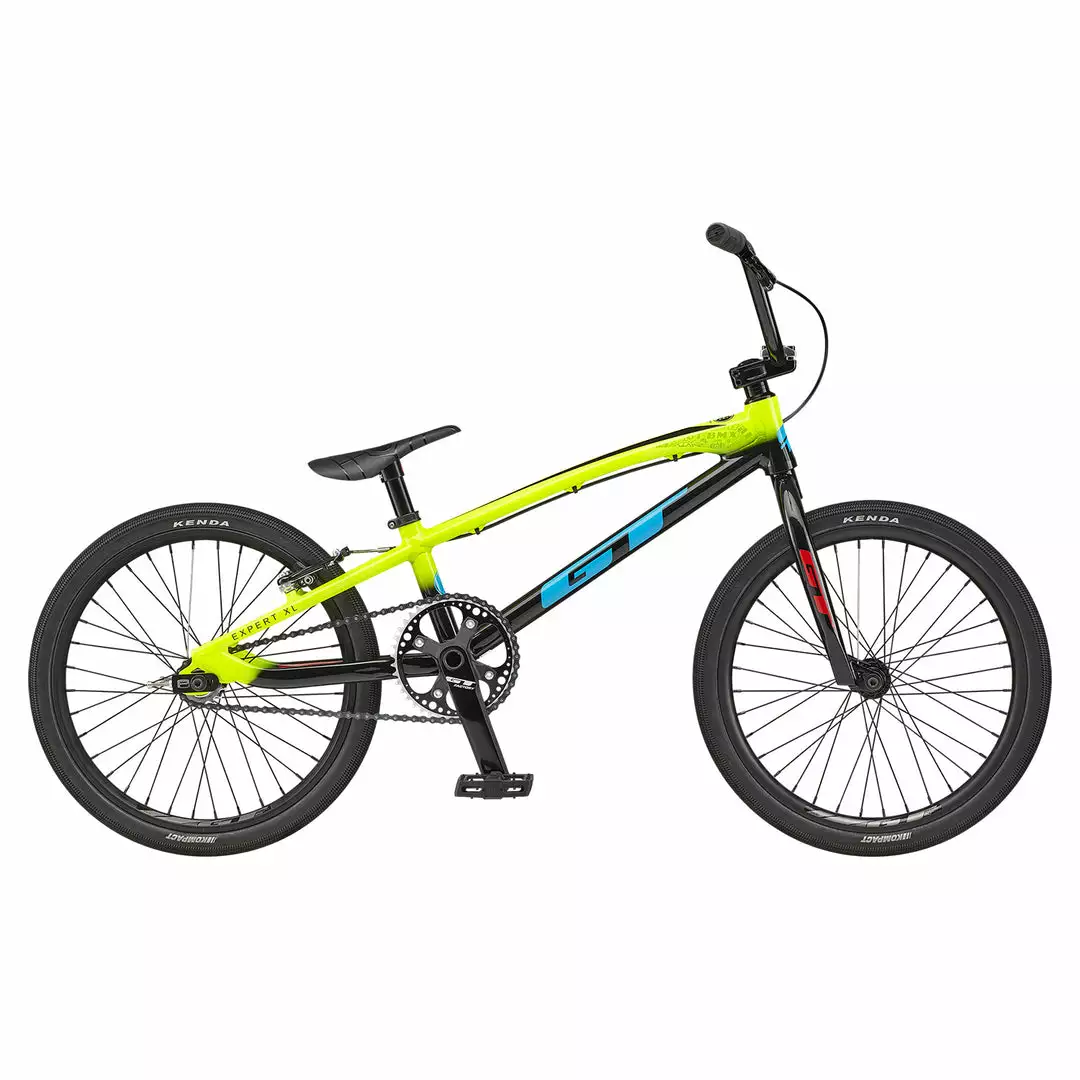

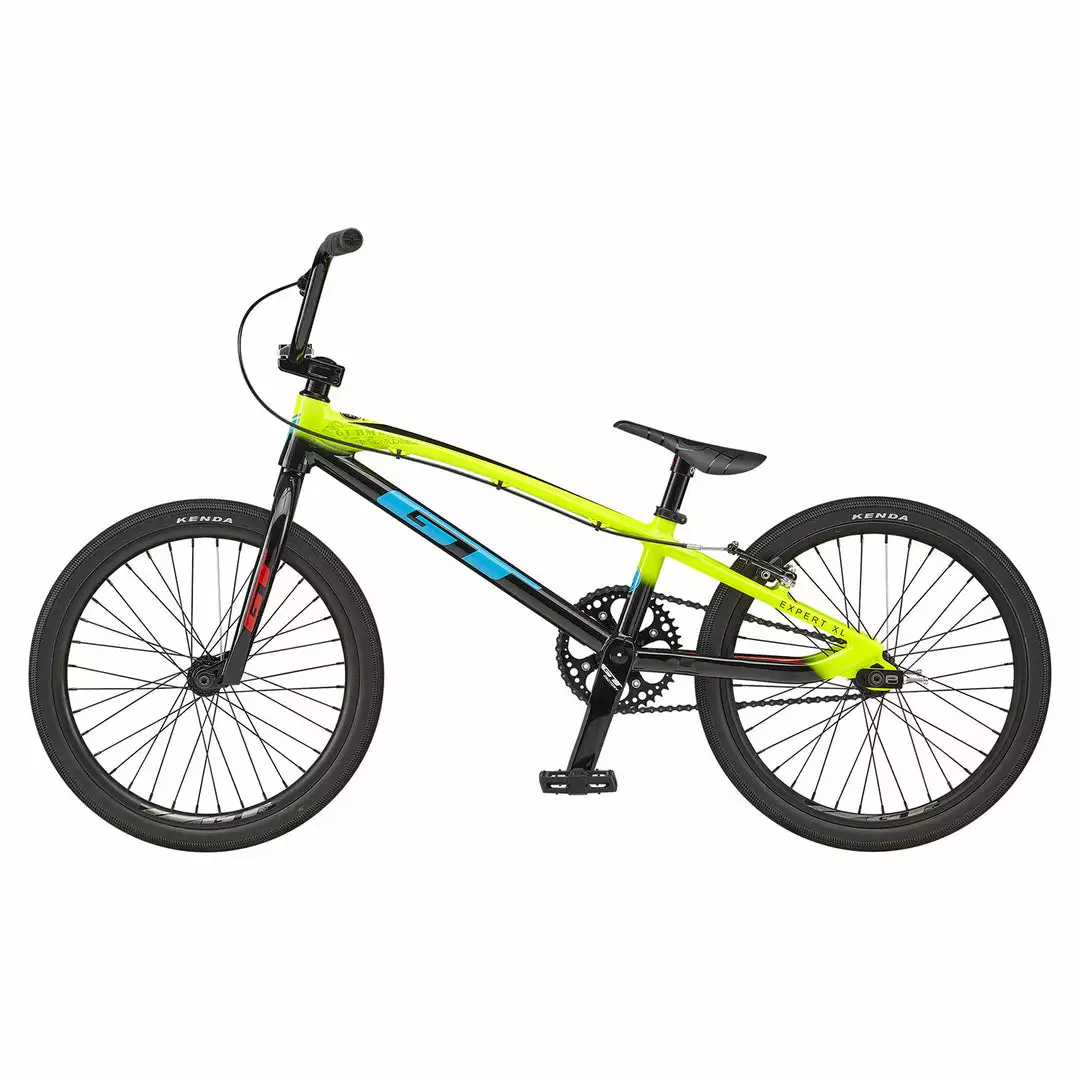

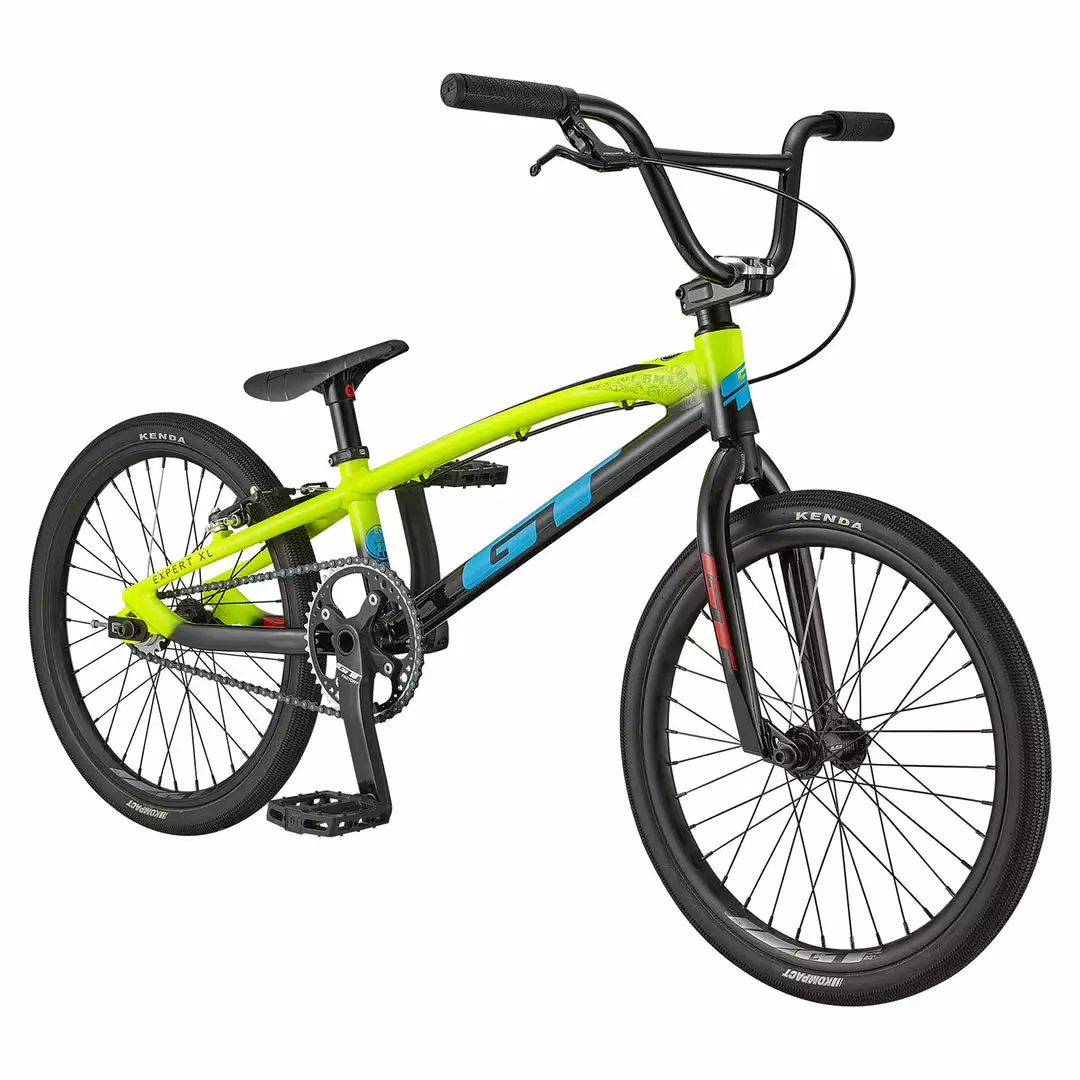

GT Speed Series Expert XL BMX Race Bike-Nuclear Yellow RACE BIKES

Inspired by the Speed Series Pro models and featuring reverse rear dropouts for quick gear changes. Each model size is purpose-designed and spec’d to be lightweight, offering maximum performance to meet each racer’s needs. Ideal for riders 5’2″-5’8″.

FEATURES

• GT Pro Race Cr-Mo Fork with 1-1/8” Steerer Tube 20mm Dropout
• GT SpeedSeries Elite Race Frame with Speed Metal Tubes
• BB86 Bottom Bracket

SPECIFICATIONS

• SIZES: EXPERT XL
• FRAME: GT Speed Series MK7 Junior Race Design, 6061-T6 AL, Alloy Formed and Butted Speed Metal Tubes, Reverse Dropouts, Euro BB, 1-1/8″ Integrated H/T
• FORK: GT BMX Pro Race, 100% Cr-Mo 1 1/8″ Steerer, Tapered Legs, 305mm A/C, 3/8″ Dropouts
• CHAIN: KMC Z1 Narrow, 3/32″
• CRANK: GT Forged Alloy 2pc., 170mm Arms, 24mm Hollow/ Cr-Mo Spindle, 42T AL CNC Chain Ring, Alloy Chain Ring Bolts
• BOTTOM BRACKET: Euro Sealed Bearing
• PEDALS: GT Low Profile FS Platform Design
• COG SET: 16T Cog
• RIMS: Alloy Double Wall, 36h
• TIRES: Kenda Kompact Pro Race, 20 x 1-1/8″
• FRONT HUB: GT Speed Series, Alloy CNC Body, Sealed Bearings, 28h, 3/8″ Female Allen Bolts
• REAR HUB: GT Speed Series Cassette, Alloy CNC body, 5 Sealed Bearings, 3 Pawl Cassette, 36h, 3/8″ Allen Bolts
• SPOKES: Stainless Steel, 14g
• BRAKES: Promax MV-87, 85mm Cold Forged AL Arms, Mini V-Type
• FRONT BRAKE: Promax MV-87, 85mm Cold Forged AL Arms, Mini V-Type
• REAR BRAKE: Promax MV-87, 85mm Cold Forged AL Arms, Mini V-Type
• BRAKE LEVERS: Alloy V-type
• HANDLEBAR: GT Speed Cr-Mo 6.5″H x 26″W, 8° Sweep, 4° Up, Taper Cross Bar
• STEM: GT Top Load, 1″, 40mm
• GRIPS: GT Statement
• HEADSET: 1 1/8″ Integrated Design, 45X45 Degree Sealed Bearings
• SADDLE: BOX Echelon
• SEAT POST: Integrated

GEOMETRY

• A. SEAT TUBE LENGTH: 8
• B. TOP TUBE ACTUAL: 20
• C. HEAD TUBE ANGLE: 73°
• D. SEAT TUBE ANGLE: 70°
• E. HEAD TUBE LENGTH: 4
• F. WHEELBASE: 35.8
• G. FRONT CENTER: 22.4
• H. CHAIN STAY LENGTH: 13.62
• I. BB DROP: -1.5
• J. BB HEIGHT: 11.5
• K. FORK RAKE: 1.3
• L. SEAT POST DIAMETER: 27.2mm
• M. AXLE TO CROWN: 12.1
