FREESTYLE BIKES Sunday EX 20.75″TT BMX Bike-Frost Green Erik Elstran Signature

The 2020 EX is a bike that is difficult to match. Erik Elstran’s signature model pushes the envelope with a tough, pro-level, Odyssey/Sunday parts package and frame design upgrades like the EX’s removable braking hardware mean business, even when your approach to riding is all about having fun – just like Erik’s.

HIGHLIGHTS

• 100% Chromoly Frame, Fork, and 4-pc Bars
• Sunday Seeley Signature Grips
• FSA Conical Headset
• Sunday Sabretooth v2 25t Sprocket
• Sunday Saker 3-PC Cranks, 165mm
• Odyssey Path Pro 2.40″ OEM Tires
• Odyssey Clutch v2 Freecoaster
• Sealed Front and Rear Hubs

*SPECIFICATIONS

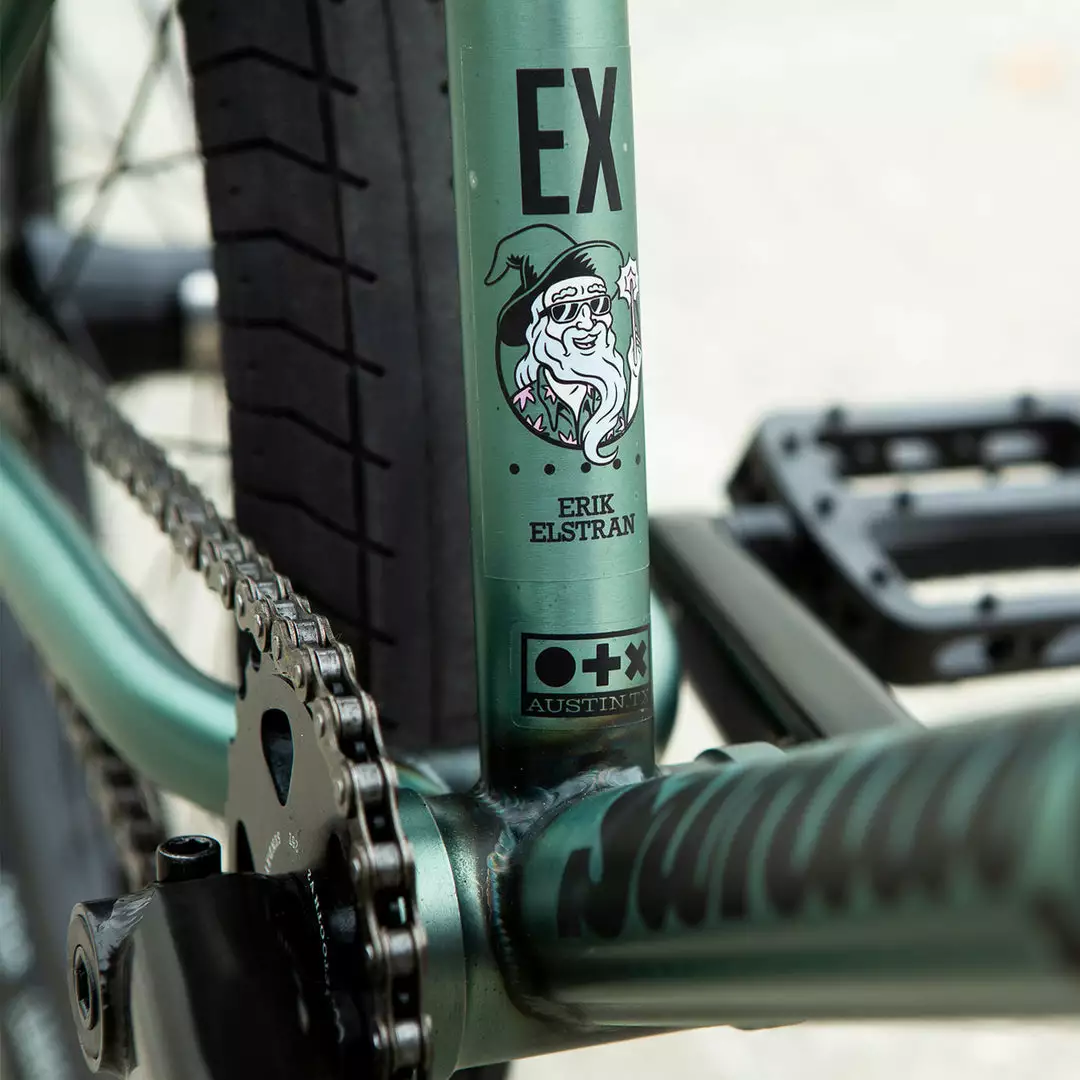

• Frame: 20.75″ TT, 100% chromoly frame with wave DT, w/ removable brake hardware
• Fork: 20″, 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offset
• Handlebar: Sunday, 9 x 29″, 12° backsweep, 3° upsweep, 100% chromoly, 4-piece

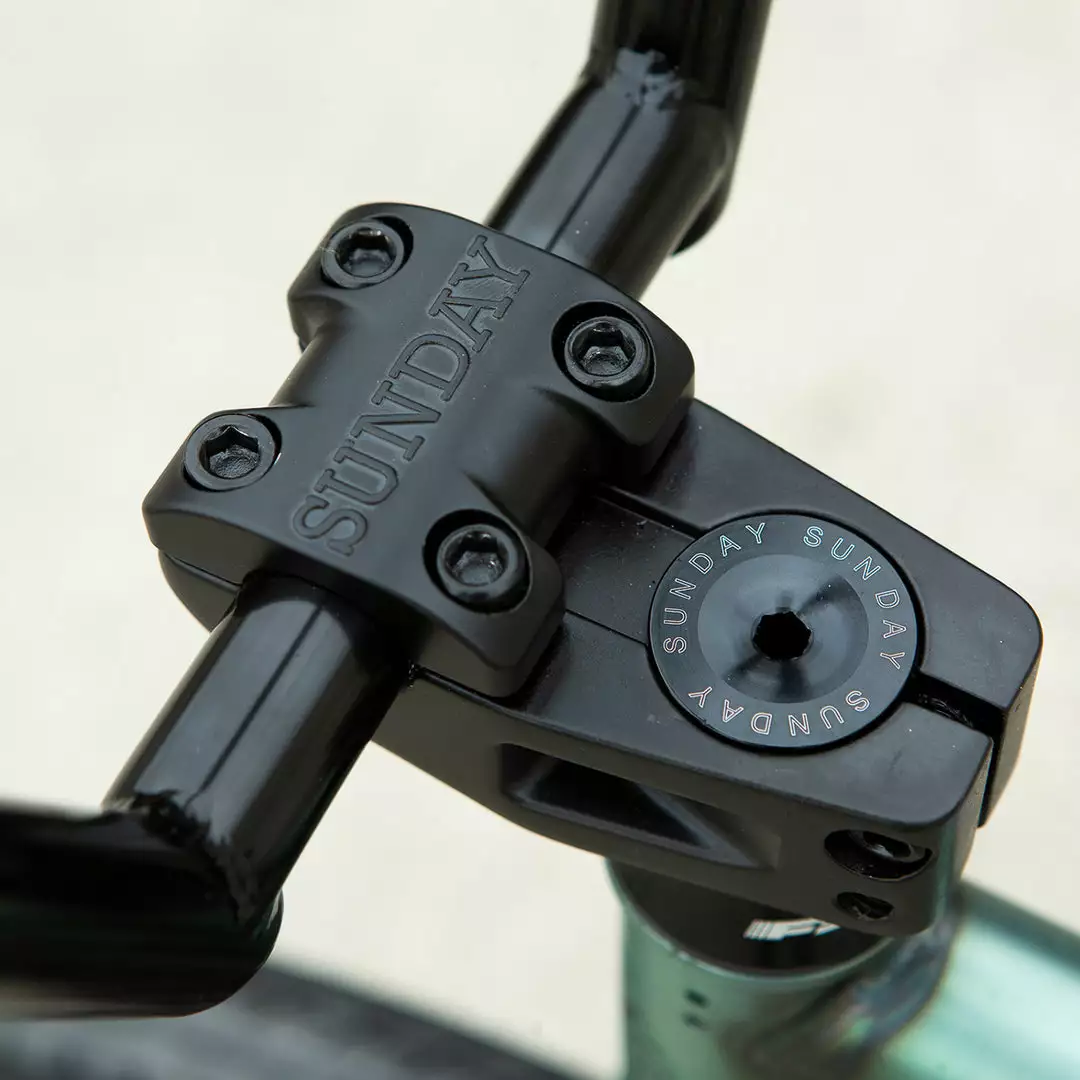

• Stem: Sunday Freeze front load, 48mm

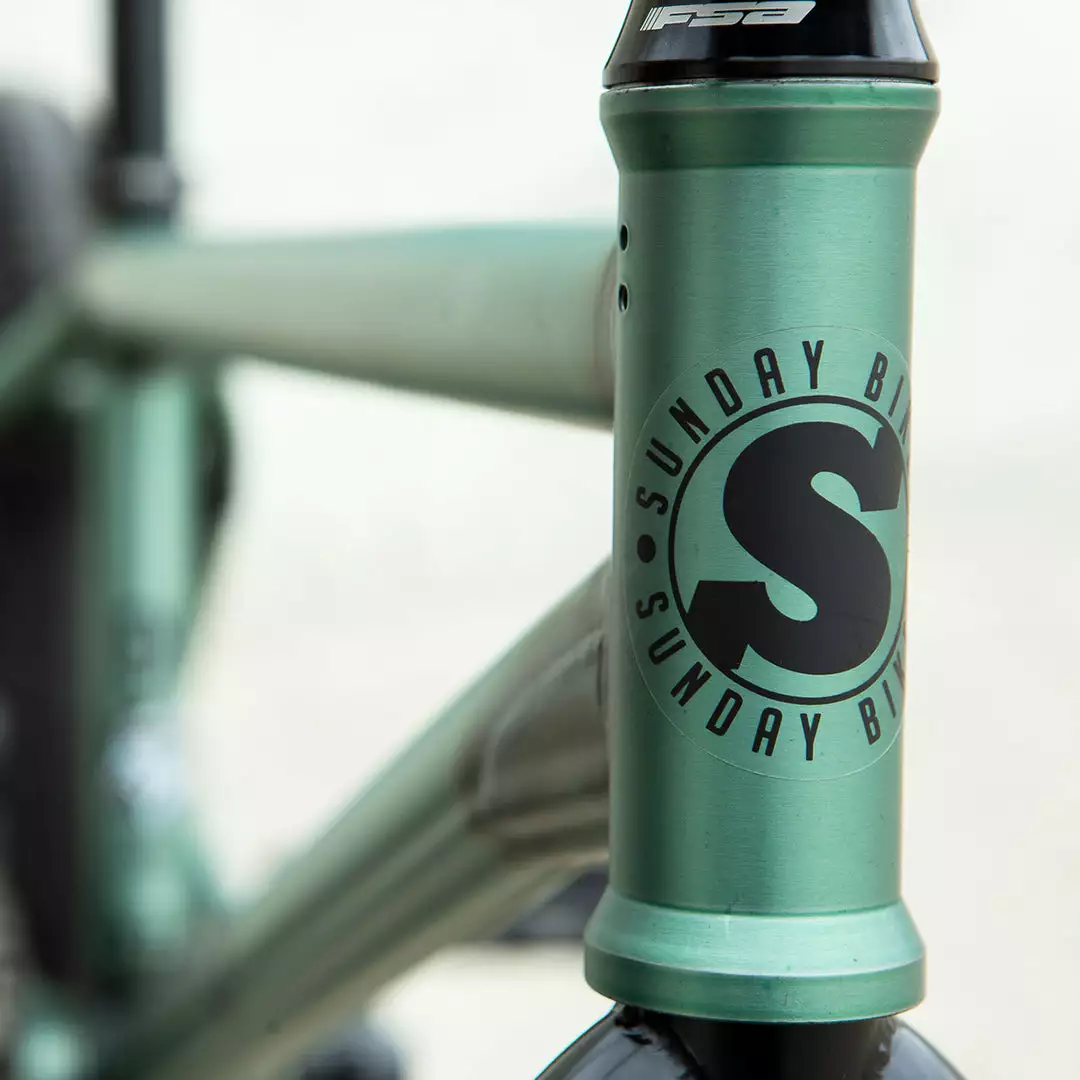

• Headset: FSA integrated conical, 1-1/8″
• Alloy Cap: Sunday M16, aluminum
• Brake Lever: Odyssey Springfield

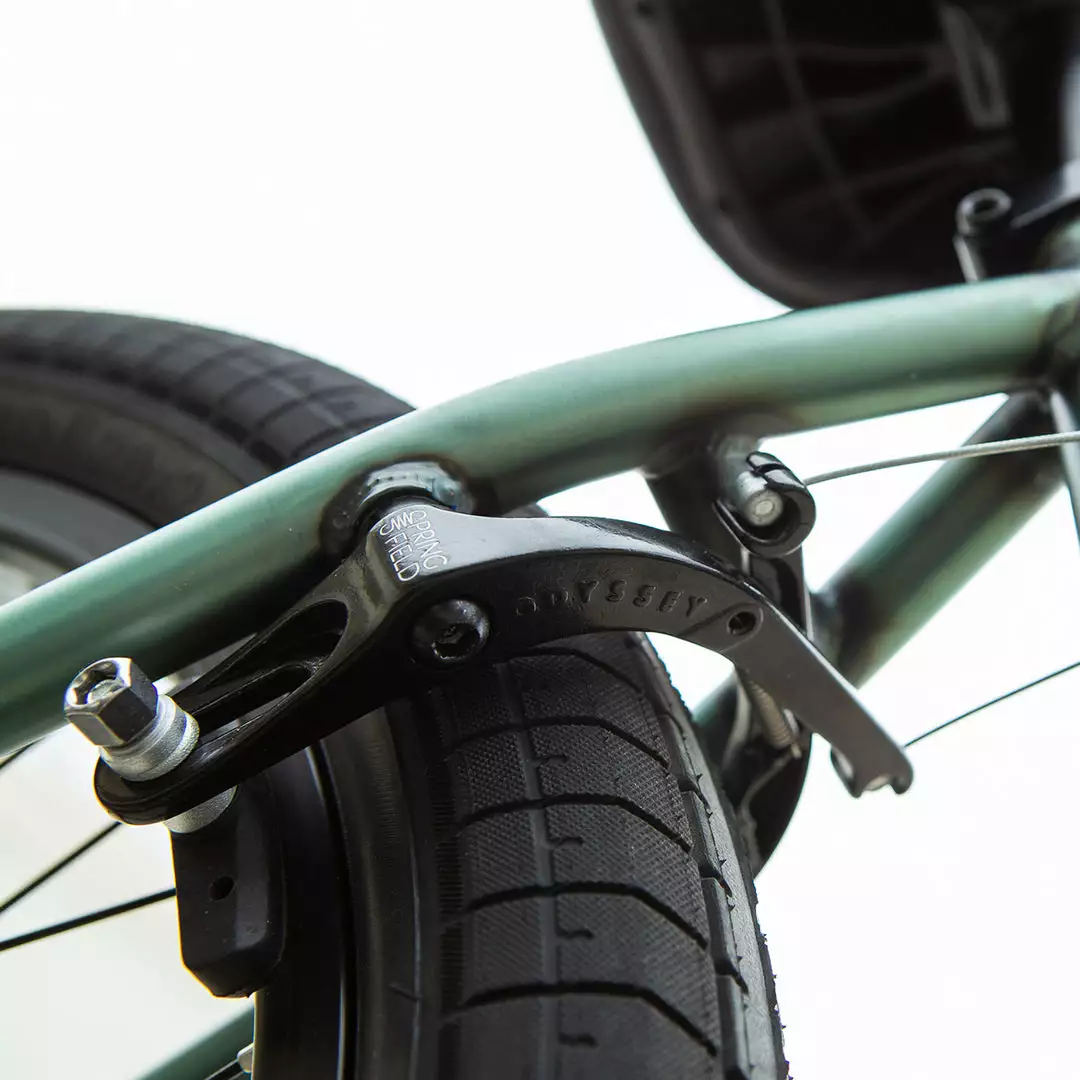

• Brakes: Odyssey Springfield U-brake
• Brake Cable: Odyssey Quik Slic

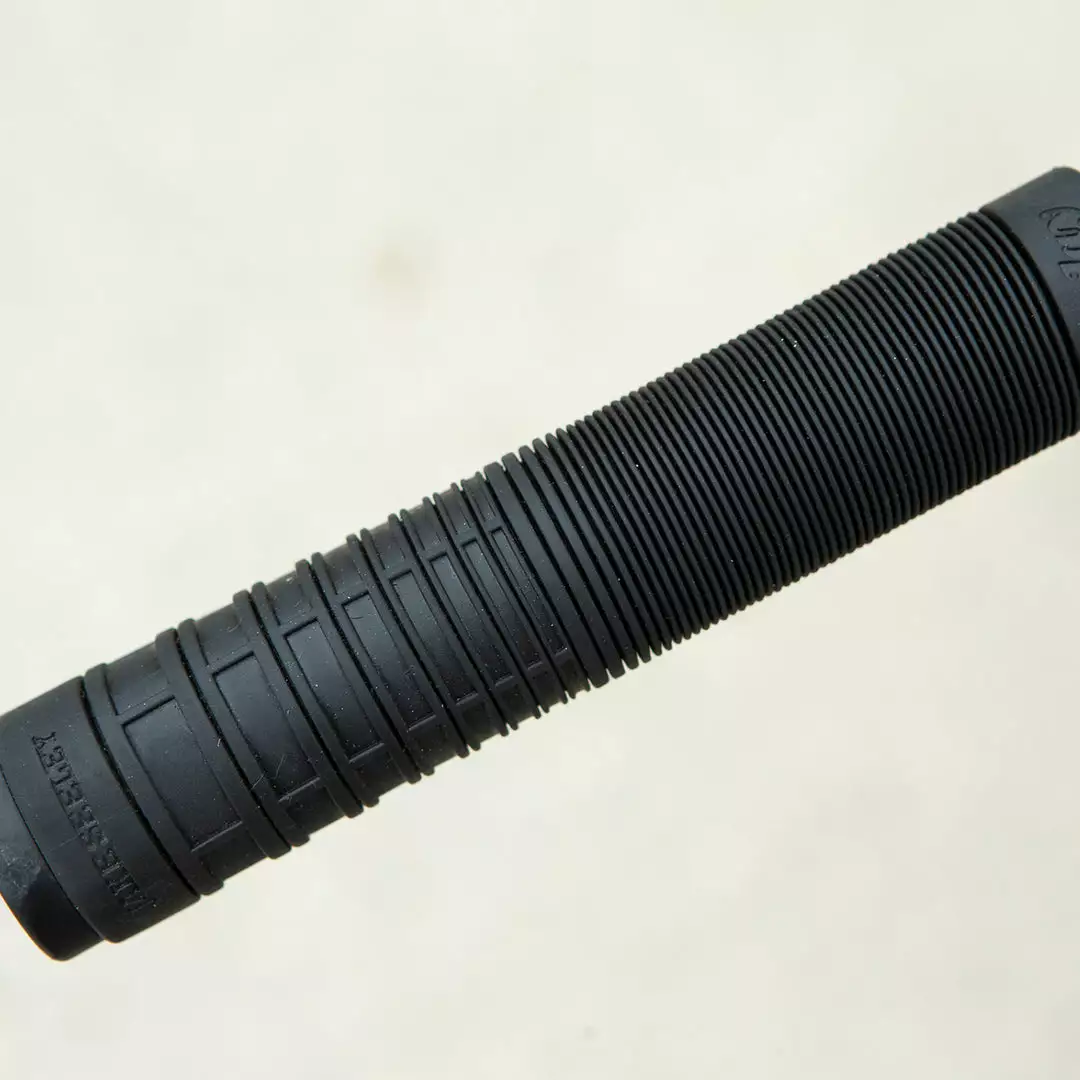

• Grips: Sunday Jake Seeley

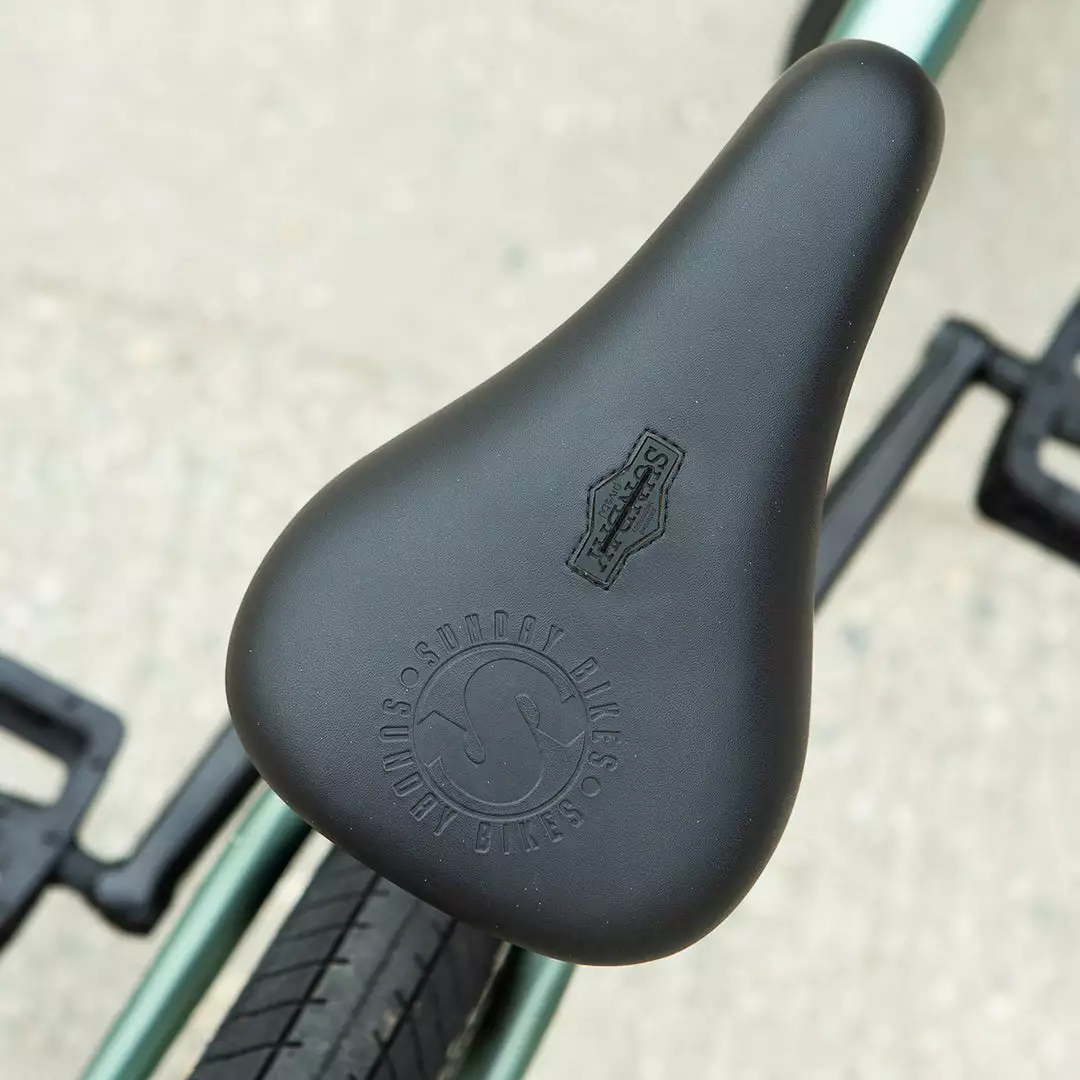

• Seat: Sunday Badge, Pivotal
• Seat Post: Sunday Pivotal
• Seat Clamp: Sunday
• Sprocket: Sunday Sabertooth V2, 25T, steel
• Cranks: Sunday Saker, 165mm
• BB Parts: Sealed, Mid, 19mm
• Pedals: Odyssey Twisted PC Pro

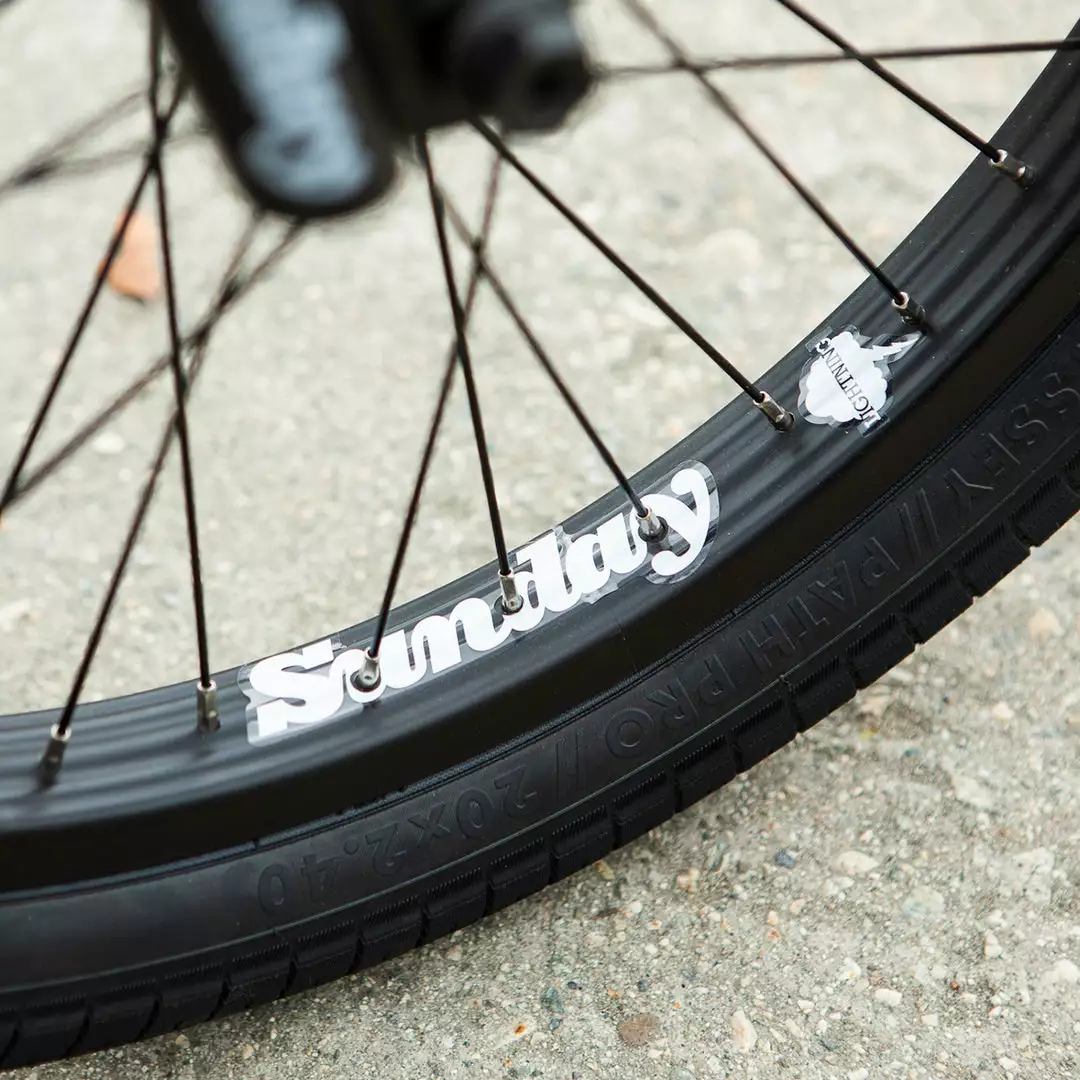

• Rims: Sunday Lightning, 20″, 36H
• Front Hub: Sunday, 36H, low-flange, sealed , 3/8″ female axle
• Rear Hub: Odyssey Clutch V2 FC, 36H, 14mm female axle w/ 9T driver, RHD or LHD, non-drive PC guard
• Spokes: 14g steel, black
• Tires: Odyssey Path Pro OEM, 20 x 2.4″ (F & R)
• Chain: KMC Z1 wide

*Specs subject to change without notice.

GEOMETRY

• Top Tube Length: 20.75″
• Head Tube Angle: 75°
• Seat Tube Angle: 71°
• Chainstay Length: 13.2-13.5”
• Bottom Bracket Height: 11.5″
• Standover: 9″
• Rise: 9″
• Width: 29″
• Backsweep: 12°
• Upsweep: 3°
• With Brakes: 25.75lbs
