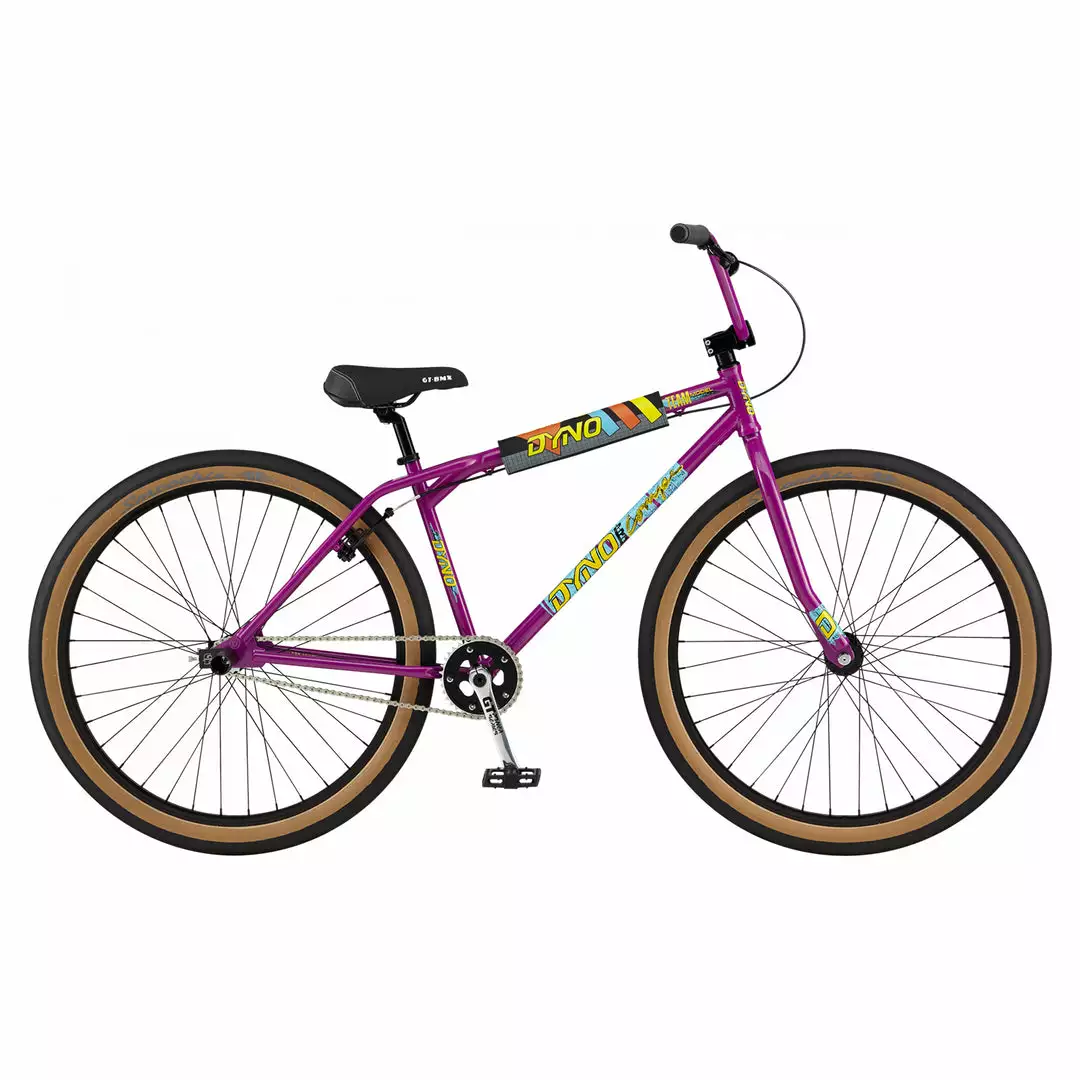

FREESTYLE BIKES GT Dyno Compe Pro Heritage Limited Edition 29″ BMX Bike-Raspberry

Thirty-two years in the making…the Dyno you’ve always wanted with all of the quality of today.

SPECIFICATIONS

• FRAME: Dyno 87′ Pro Compe Design, Full Cr-Mo, DT Gusset, MID BB, Inverted Seat Stay V-Brake, Integrated 1-1/8″ H/T w/ Removable Rotor Tabs, 2.5″ Tire Clearance
• FORK: Dyno 87′ Pro Compe Design, 100% Cr-Mo 2pc. Steerer, 3/8″ Axle Dropouts
• CHAIN: KMC Z1 Wide
• CRANK: GT Power Series Alloy 3pc., 175mm Arms, 22mm Square Cr-Mo Spindle, GT 5mm 36T 86′ Performer Design Alloy Chainwheel
• BOTTOM BRACKET: MID Sealed Bearing
• PEDALS: GT Low Profile FS Platform Design
• COG SET: 16T Cog
• RIMS: Alloy Double Wall, 36h
• TIRES: GT Smoothie 29 x 2.5″
• FRONT HUB: GT Superlace High, Alloy CNC Body, Sealed Bearings, 36h, 3/8″ x 17mm Female Bolt
• REAR HUB: GT Superlace High Cassette, Alloy CNC body, 5 Sealed Bearings, 3 Pawl Cassette, 36h, 3/8″ x 17mm Female Bolts
• SPOKES: Stainless Steel, 14g
• BRAKES: Promax P-1 Aluminum V-Brake w/ Soft Compound Pad
• BRAKE LEVERS: Alloy V-type
• HANDLEBAR: Dyno Pretzel Cheat Code 2pc. 100% Cr-Mo, 7.875″H x 31.5″W, 5°Up, 9° Back
• STEM: GT Mallet 100% CNC Front Load, 1-1/8″, 19mm Rise, 43mm
• GRIPS: GT Super Soft 155mm Single Compound w/o Flange w/ GT Removable Plug
• HEADSET: 1 1/8″ Integrated Design, 45X45 Degree Sealed Bearings
• SADDLE: GT Cheat Code Railed
• SEAT POST: Alloy Micro Adjust 25.4 x 300mm
• SPEC EXTRAS: Alloy Knurled Pegs, 3-Piece Pad Set

GEOMETRY

• A. SEAT TUBE LENGTH: 16.5
• C. TOP TUBE ACTUAL: 23.5
• D. HEAD TUBE ANGLE: 71°
• E. SEAT TUBE ANGLE: 72°
• H. WHEELBASE: 43.74
• I. FRONT CENTER: 25.9
• J. CHAIN STAY LENGTH: 17.4
• K. BB DROP: 1.6
• L. BB HEIGHT: 13.27
• M. FORK RAKE: 1.26
