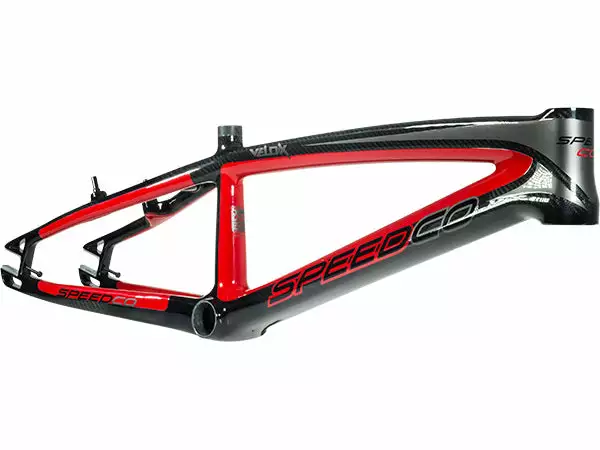

FRAMES Speedco Velox Carbon Frame-Glossy Red

The Speedco Velox Carbon BMX Race Frame is the lightest frame on the market. It’s made of Toray T700 carbon fiber, which is the strongest carbon available. The rigidity and responsiveness of the Velox carbon is unmatched. On Pro and larger sizes, the down-tube is 53mm wide at the head tube junction, and it tapers to 73mm at the bottom bracket which is wider than the shell of most frames on the market. The asymmetrical chain-stay is 73mm behind the BB, and the combination of the two are the main ingredients in a responsive frame built to holeshot; the rest is up to you.

  JUNIOR SPEC:

Top tube: Junior (18.5″)

Head tube angle: 73 degrees
BB Height:: 10.6″
Rear center: 13.5″
Seat tube angle: 70 degrees
Head tube spec: 1-1/8″ (can use 1 1/8″ and 1″ forks; for 1″ fork, please use step-down headset)
Seat tube spec: 22.2mm
BB spec: Euro



EXPERT & EXPERT XL SPEC:

Top tube: Expert (19.25″), Expert XL (20″)
Head tube angle: 73 degrees
BB Height:: 11″
Rear center: 14″
Seat tube angle: 70 degrees
Head tube spec: 1-1/8″ (can use 1 1/8″ and 1″ forks; for 1″ fork, please use step-down headset)
Seat tube spec: 22.2mm
BB spec: Euro



PRO, PRO XL and PRO XXL

Top tube: Pro (20.5), Pro XL (21), Pro XXL (21.75)
Head tube angle: 74 degrees
BB height: 11.5″
Rear center: 14.75″
Seat tube angle: 72 degrees

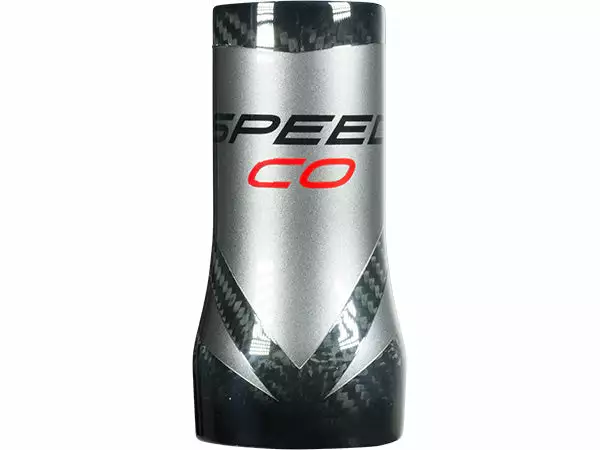

Head tube spec: Tapered 1-1/8″ – 1.5″
Seat tube spec: 27.2mm
BB Spec: BB86 press-fit
Internal Cable

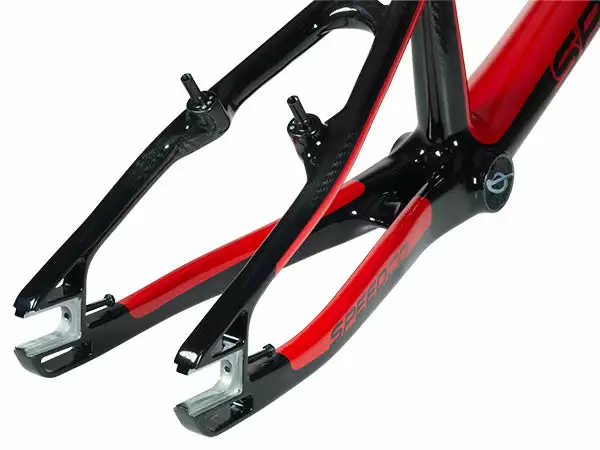

10/15mm dropout



Weights:

Junior: 2.23

Expert: 2.25

Expert XL: 2.27

Pro 2.6lbs

Pro XL 2.65 lbs

Pro XXL 2.75 lbs



NOTE:  DON’T FORGET TO PURCHASE HEADSET AND BOTTOM BRACKET. Refer to the info above if you aren’t 100% sure which sizes you need.
