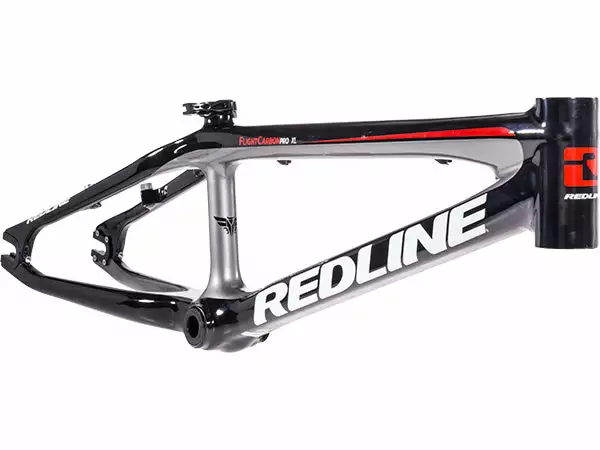

FRAMES Redline 2014 Flight Team Carbon BMX Frame-Black/Gray

The Redline Flight Carbon BMX race frame excels on the track due to the use of lightweight RCT (Redline Carbon Technology) Frame material which provides weight savings and performance gains for elite level riding. New Redline convertible dropouts allow the use of a 15mm thru-axle or standard 3/8″. New Integrated chain tensioners and press-fit BB-86 bottom bracket and Quick release post clamp included.

FEATURES

• Lightweight RCT (Redline Carbon Technology) frame material

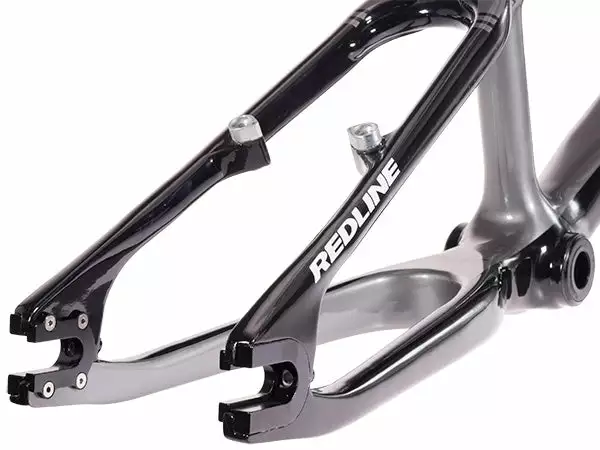

• Redline convertible dropouts for 3/8″ or 15mm axles.
• Integrated chain Tensioner
• Press-fit BB86 bottom bracket shell

SPECIFICATIONS

• USE: Race
• MATERIAL: R6 aluminum
• HEADSET STYLE: 1-1/8″ Integrated (45°/45°)
• BRAKE MOUNTS: V-Brake
• BB SHELL: BB86 (requires a BB86 bottom bracket – for use with 24mm spindles)

GEOMETRY

Redline 2014 Flight Team Carbon BMX Frame-Black/Gray Geometry Chart

SIZE	TT	CS	HS	HA	SA	SC	SP	WEIGHT
SIZE: PRO XL	TT: 21″	CS: 15.3″	HS: 1-1/8″(45°/45°)	HA: 74°	SA: 70°	SC: 1 1/4″ (31.8mm)	SP: 26.8mm	WEIGHT: 3lbs
SIZE: PRO XXL	TT: 21.7″	CS: 15.3″	HS: 1-1/8″(45°/45°)	HA: 74°	SA: 70°	SC: 1 1/4″ (31.8mm)	SP: 26.8mm	WEIGHT: 3lbs
