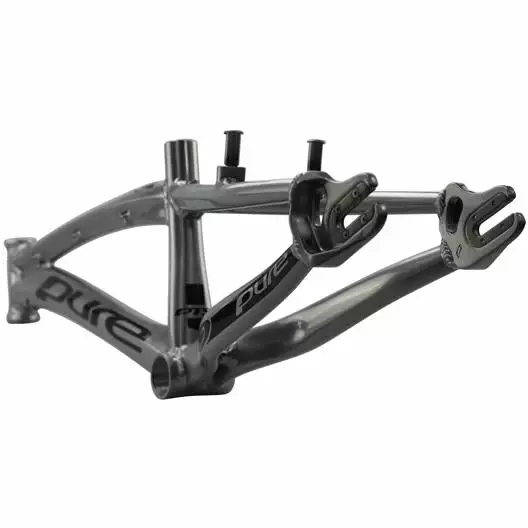

FRAMES PURE V5 BMX Race Frame-Chrome Rainbow
Original price was: $429.00.$93.99Current price is: $93.99.
- Elevate Your Shopping Experience
- The quality solution for all your needs.
- Safeguard Your Shopping Experience
- Your needs, our top priority.
Product Details:
The Pure Bicycles V5 aluminum race frames continue to push BMX technology forward. The V5 frames are made from the highest quality of 6061 hydroformed aluminum in the industry. The tube set was designed specifically for the V5 to reduce power loss and flex so that every bit of energy passes through the frame and into forwarding motion.
Â
Key Features:
*CNC Machined head tube, bottom bracket shell and 3D dropouts
*Hydroformed 6061 tubing
*Shortened seat tube for improved geometry and mobility
*Stainless steel insets in dropouts to increase the dropout life span
*Geometry designed to balance frame properly for increased performance
*Hard gloss powder coating finishing
*Durable decals that are removable for customizing color options
*Includes chain adjusters
Â
Available in Junior 20″ through Pro XXXL 20″ as well as a Pro XL 24″ and Pro XXL 24″
Â

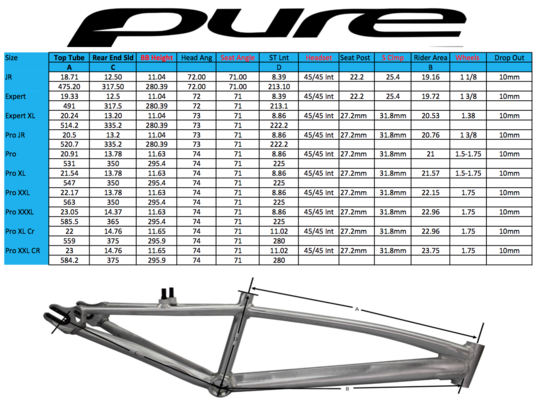

Sizing Specs:
JUNIOR:
Top Tube: 18.71″ | Rear: 12.5″ | BB Height: 11.04″ | Rider Area: 19.25″ | Head Tube: 72° | Seat Tube: 71°
Post: 22.2mm | Seat Clamp: 25.4mm | Headset: 1″ press fit | Brakes: V-Brake mounts | Bottom Bracket: Euro
EXPERT:
Top Tube: 19.33″ | Rear: 12.5″ | BB Height: 11.04″ | Rider Area: 19.7″ | Head Tube: 72° | Seat Tube: 71°
Post: 22.2mm | Seat Clamp: 25.4mm | Headset: 1″ press fit | Brakes: V-Brake mounts | Bottom Bracket: Euro
EXPERT XL:
Top Tube: 20.24″ | Rear: 12.99″ | BB Height: 11.04″ | Rider Area: 20.6″ | Head Tube: 72° | Seat Tube: 71°
Post: 27.2mm | Seat Clamp: 31.8mm | Headset: 1-1/8″ Integrated | Brakes: V-Brake mounts | Bottom Bracket: Euro
PRO JUNIOR:
Top Tube: 20.5″ | Rear: 13.2″ | BB Height: 11.04″ | Rider Area: 20.7″ | Head Tube: 73° | Seat Tube: 71°
Post: 27.2mm | Seat Clamp: 31.8mm | Headset: 1-1/8″ Integrated | Brakes: V-Brake mounts | Bottom Bracket: Euro
PRO:
Top Tube: 20.91″ | Rear: 13.43″ | BB Height: 11.63″ | Rider Area: 21.4″ | Head Tube: 74° | Seat Tube: 71°
Post: 27.2mm | Seat Clamp: 31.8mm | Headset: 1-1/8″ Integrated | Brakes: V-Brake mounts | Bottom Bracket: Euro
PRO XL:
Top Tube: 21.54″ | Rear: 13.78″ | BB Height: 11.63″ | Rider Area: 21.75″ | Head Tube: 74° | Seat Tube: 71°
Post: 27.2mm | Seat Clamp: 31.8mm | Headset: 1-1/8″ Integrated | Brakes: V-Brake mounts | Bottom Bracket: Euro
PRO XXL:
Top Tube: 22.17″ | Rear: 13.78″ | BB Height: 11.63″ | Rider Area: 22.5″ | Head Tube: 74° | Seat Tube: 71°
Post: 27.2mm | Seat Clamp: 31.8mm | Headset: 1-1/8″ Integrated | Brakes: V-Brake mounts | Bottom Bracket: Euro
PRO XXXL:
Top Tube: 23.05″ | Rear: 14.37″ | BB Height: 11.63″ | Rider Area: 23″ | Head Tube: 74° | Seat Tube: 71°
Post: 27.2mm | Seat Clamp: 31.8mm | Headset: 1-1/8″ Integrated | Brakes: V-Brake mounts | Bottom Bracket: Euro
PRO XL 24″:
Top Tube: 22″ | Rear: 14.76″ | BB Height: 11.65″ | Rider Area: 22.75″ | Head Tube: 74° | Seat Tube: 71°
Post: 27.2mm | Seat Clamp: 31.8mm | Headset: 1-1/8″ Integrated | Brakes: V-Brake mounts | Bottom Bracket: Euro
PRO XXL 24″:
Top Tube: 23″ | Rear: 14.76″ | BB Height: 11.65″ | Rider Area: 23.6″ | Head Tube: 74° | Seat Tube: 71°
Post: 27.2mm | Seat Clamp: 31.8mm | Headset: 1-1/8″ Integrated | Brakes: V-Brake mounts | Bottom Bracket: Euro
//
| Frame Size | Junior, Expert, Expert XL, Pro Junior, Pro, Pro XL, Pro XXL, Pro XXXL, Pro XL 24", Pro XXL 24" |
|---|
