FRAMES Prophecy 2017 Scud Evo Frame-Matte Black/Orange

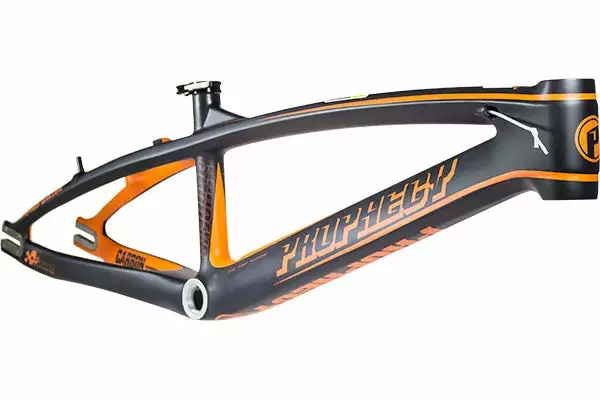

Prophecy BMX Scud Evo Matt black & Orange edition frame: So what’s new on this frame?
Prophecy is using the same process of fabrication than the previous one but with new carbon 3K layers on all the frame, new paint design 60% matt, internal cable routing and black seat clamp with a quick release made by CNC developed for carbon frames.
Lighter with a weight:
24″ CRUISER, PRO, PRO XL & PROXXL: 2,98 lbs (47,62oz, +/-10%).
JUNIOR & EXPERT XL: 2,54 lbs (40,57oz, +/-10%).

Carbon frame sizes of pure technology!
Prophecy BMX carbon frames are one of the lightest & fastest BMX designs ever offered.
The carbon Prophecy BMX frame efficiently transfers the rider’s energy to the ground with at the same time a better comfort compared to any other alloy or steel frames.
You will get as well a greater power transfer for faster gate starts and more-precise handling when jumping, turning…
The Prophecy BMX carbon frame will keep this efficiency during all its life when a 3,96 lbs (63,36oz) and lighter alloy frame will be efficient few months only.

Our carbon frame technology:

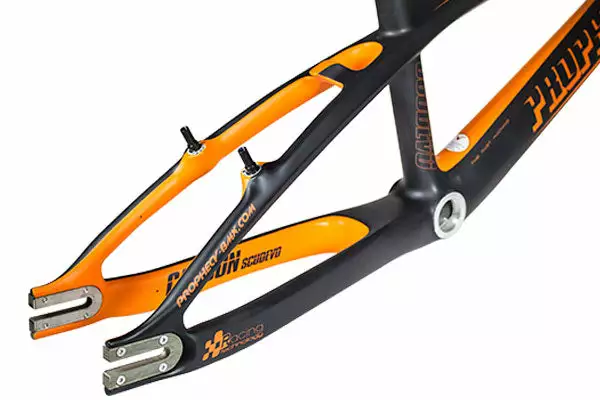

“Monocoque” frame: We are still using the same technology with a one-piece front triangle we call “Monocoque”. Both chainstays and seat stays are as well in one piece to increase the rigidity.

Hand made: The Prophecy BMX racing frame is 100% hand made. They place all carbon layers one by one accordingly a placement chart defined in advance by our engineers and exclusive to our product to give to the rider the right stiffness, resistance and comfort with an incredible weight!

Quality control: They do many quality controls at each stage of the fabrication process to control the weight and avoid mistakes.
All frame sizes are also previously tested beside the human rider test inside our laboratory’s machines:
BB pedal fatigue test during 100,000 cycles with 1,200 Newton
Head tube horizontal force test during 50,000 cycle with 1200N
Vibration test during 30,000 cycles with 54kg on seat tube, 42kg on BB, and 20kg on head tube.
Vertical fatigue test during 50,000 cycles at 1,200N Carbon used: Many kinds of carbon fibers in the market could make a carbon BMX frame, and all fibers get different properties and qualities. Prophecy BMX’s engineers use TR50 carbon fiber, which is the one who gets the highest strength properties compare to all other standard ones. This guarantees perfect product strength, with our special Epoxy Resin used from Korea that we have selected. The choice of the Epoxy is very important as well because it makes the stability of the product, increases stiffness and strength in different areas of the frames to improve impact resistance, near the BB and head tube. And to maximize 100% the efficiency of our carbon fiber and Epoxy resin, we have developed a frame in 3D ergonomic designed to give to the riders not only stiffness and lightweight but as well more comfort to help the rider transfer all his power and energy to the ground.

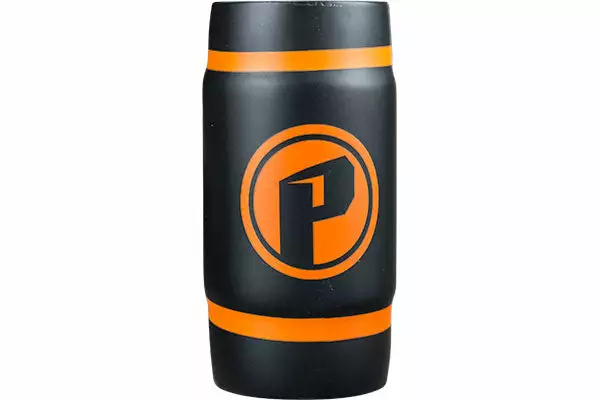

Headset semi integrated 44mm internal diameter.
Seat post diameter: 27,2mm (25,4mm for JUNIOR and EXPERT XL FRAME)



Frame Geometry
