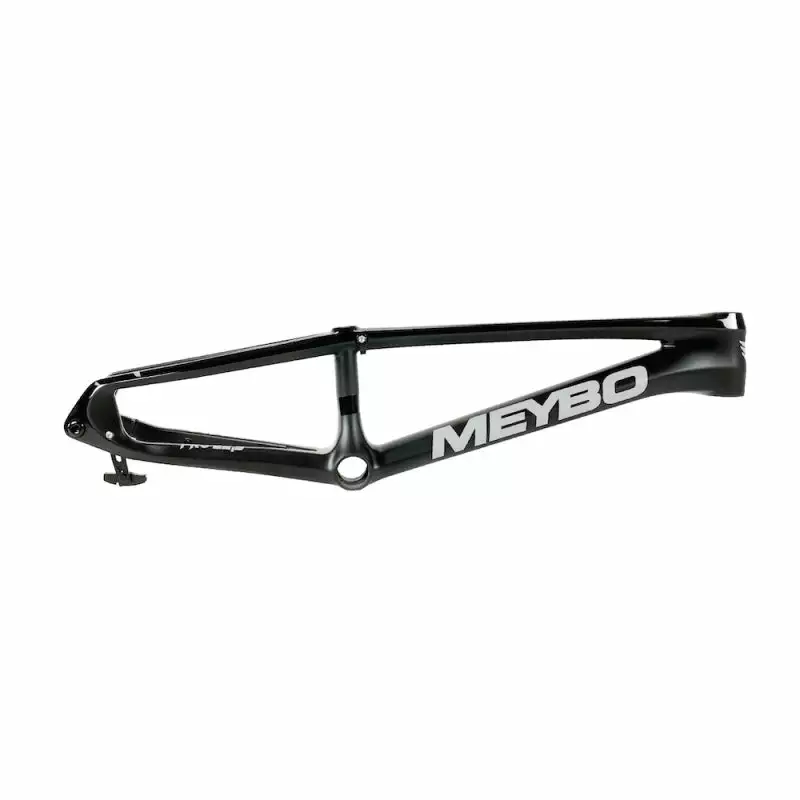

FRAMES Meybo HSX Carbon BMX Race Frame-UD/Black/Grey

The Meybo HSX Carbon BMX Race Frame-Matte UD-Shiny Black-Matte Grey is built for ultimate speed and the updated carbon features mean improved handling as well. This HSX frame is made from Uni-Directional (UD) carbon formed tubes which provides increased stiffness and even more speed, making it the fastest in the Meybo range . Equipped with Meybo’s solid chainstay with fixed 15mm rear drop-outs for consistent chainstay length and quick and easy wheel mounting. This frame is compatible with flat mount disc brakes and is officially approved by former World Champ, Twan van Gendt.

FEATURES

• UD Carbon Formed Tubes;
• 30% more stiffness, instant faster;

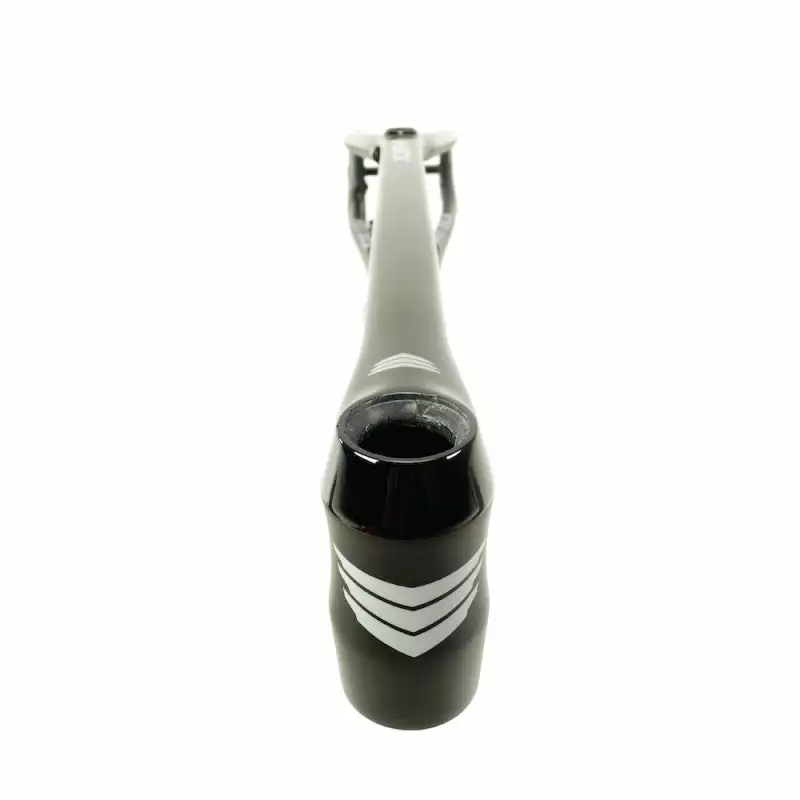

• 1.5 tapered headtube;
• Wide BB368 EVO bracket (Pro 21,5 and up) for optimal stiffness (For 24 and 30mm spindle cranks) BB86 For 24mm Cranks in Expert and Expert XL;
• For Flat mount disc brake system;
• Meybo solid chainstay with fixed 15mm rear drop outs;
• Ensure you always the same Chainstay length whatever gear you run!
• Easy, fast and straight mounting of your rear wheel!
• Brake line through the frame;

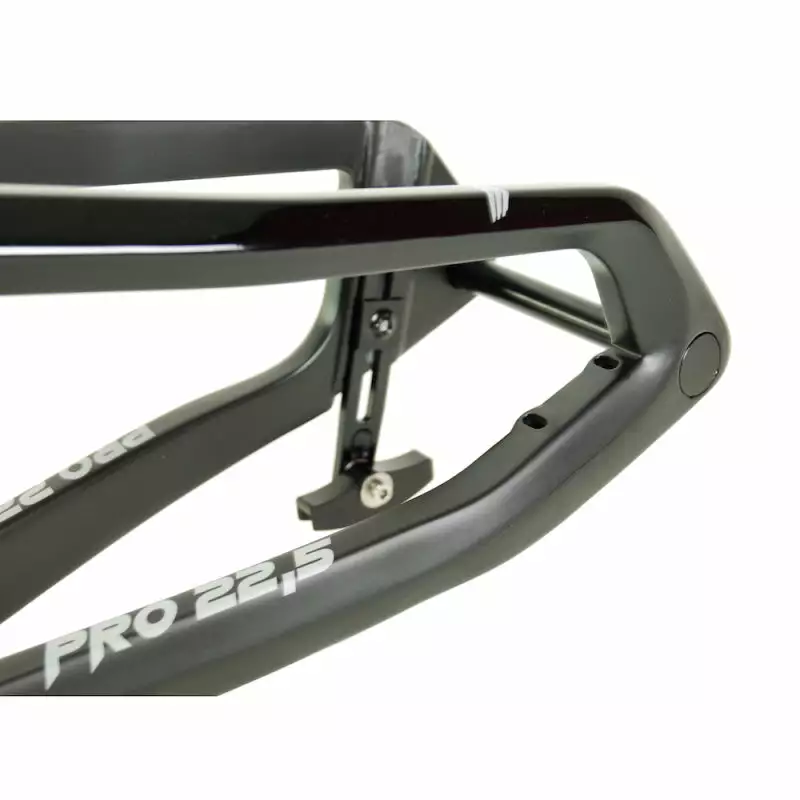

• Meybo chain tensioner system;

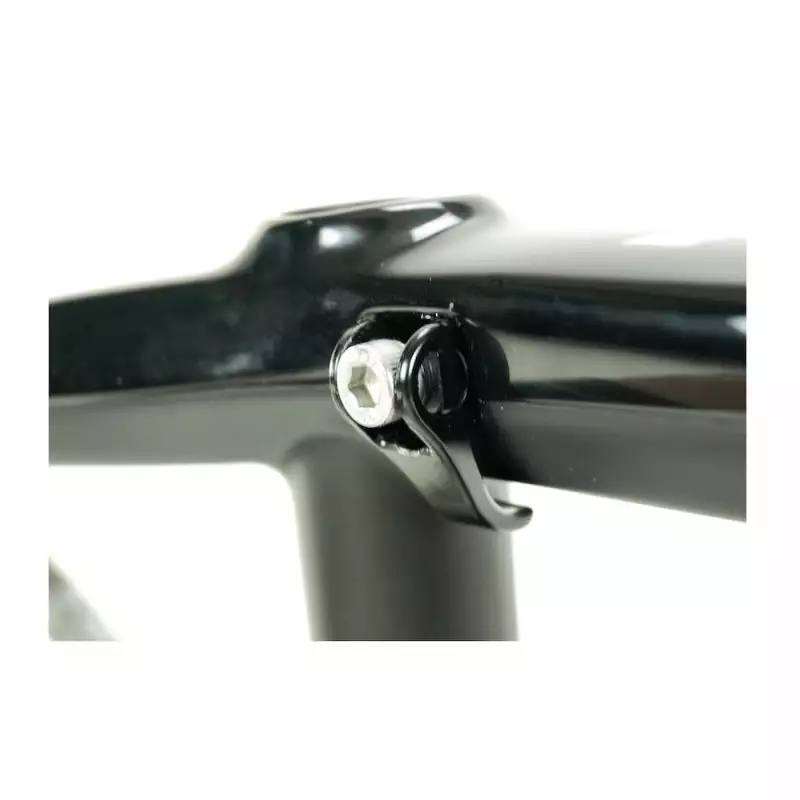

• Meybo integrated seatclamp system;
• 7005 CNC 15mm rear axle;
• Frame derailleur ready;
• Can be run with OS wheels;

GEOMETRY

Meybo HSX Carbon BMX Race Frame-Matte UD-Shiny Black-Matte Grey Geometry Chart

SIZE	TOP TUBE RIDER AREA	DOWN TUBE	FIXED CHAINSTAY	HEAD TUBE ANGLE	SEAT POST ANGLE	HEAD TUBE SIZE FULL INTEGRATED	SEAT POST SIZE	DROPOUT	BRACKET	DISC BRAKE ONLY
SIZE: Expert	TOP TUBE RIDER AREA: 500 mm	DOWN TUBE: 520 mm	FIXED CHAINSTAY: 340 mm	HEAD TUBE ANGLE: 73.5°	SEAT POST ANGLE: 71.0°	HEAD TUBE SIZE FULL INTEGRATED: 1 1/8″	SEAT POST SIZE: 25.4 mm	DROPOUT: 15 mm	BRACKET: BB68	DISC BRAKE ONLY: Yes, 120 mm
SIZE: Expert XL	TOP TUBE RIDER AREA: 525 mm	DOWN TUBE: 542 mm	FIXED CHAINSTAY: 345 mm	HEAD TUBE ANGLE: 73.5°	SEAT POST ANGLE: 71.0°	HEAD TUBE SIZE FULL INTEGRATED: 1 1/8″	SEAT POST SIZE: 25.4 mm	DROPOUT: 15 mm	BRACKET: BB68	DISC BRAKE ONLY: Yes, 120 mm
SIZE: Pro 21	TOP TUBE RIDER AREA: 535 mm	DOWN TUBE: 547 mm	FIXED CHAINSTAY: 369 mm	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE SIZE FULL INTEGRATED: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB368 EVO	DISC BRAKE ONLY: Yes, 120 mm
SIZE: Pro 21.5	TOP TUBE RIDER AREA: 545 mm	DOWN TUBE: 556 mm	FIXED CHAINSTAY: 380 mm	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE SIZE FULL INTEGRATED: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB368 EVO	DISC BRAKE ONLY: Yes, 120 mm
SIZE: Pro 22	TOP TUBE RIDER AREA: 557 mm	DOWN TUBE: 567 mm	FIXED CHAINSTAY: 380 mm	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE SIZE FULL INTEGRATED: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB368 EVO	DISC BRAKE ONLY: Yes, 120 mm
SIZE: Pro 22.5	TOP TUBE RIDER AREA: 570 mm	DOWN TUBE: 578 mm	FIXED CHAINSTAY: 393 mm	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE SIZE FULL INTEGRATED: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB368 EVO	DISC BRAKE ONLY: Yes, 120 mm
SIZE: Pro 23	TOP TUBE RIDER AREA: 581 mm	DOWN TUBE: 589 mm	FIXED CHAINSTAY: 396 mm	HEAD TUBE ANGLE: 74.3°	SEAT POST ANGLE: 71.0°	HEAD TUBE SIZE FULL INTEGRATED: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB368 EVO	DISC BRAKE ONLY: Yes, 120 mm
SIZE: Cruiser	TOP TUBE RIDER AREA: 564 mm	DOWN TUBE: 595 mm	FIXED CHAINSTAY: 393 mm	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 70.5°	HEAD TUBE SIZE FULL INTEGRATED: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB368 EVO	DISC BRAKE ONLY: Yes, 120 mm

IMAGE NOTE: The image shown is for reference only. You will be getting the size that you order when you purchase.
