FRAMES Meybo HSX BMX Race Frame-Silver

Approved by World Champions such as Laura Smulders, Niek Kimmann, and Twan van Gendt, the Meybo HSX BMX Race Frame-Silver is constructed using 6061 T6 Aluminum tubing, giving you unreal power transmission, and the perfect balance of stiffness and handling. This frame will help you reach your full race potential. Utilizing the Meybo chainstay and tensioner system, you can run your desired gear knowing you’ll have a consistent chainstay length every time. Available in several colors and a wide variety of sizes, pick yours up today and we may be adding you to the list of Champions at the top of this description.

FEATURES

• 6061 T-6 multiple butted hydroformed tubing;
• 1.5 tapered headtube;
• Wide BB shell for optimal stiffness;
• Disc brake directly mounted on the frame;
• Meybo solid chainstay with fixed 15mm rear drop outs;
• Ensure you always the same Chainstay length whatever gear you run!
• Easy, fast and straight mounting of your rear wheel!
• Meybo chain tensioner system;
• 7005 CNC 15mm rear axle;

GEOMETRY

Meybo HSX BMX Race Frame-Silver Geometry Chart

SIZE	TOP TUBE RIDER AREA	DOWN TUBE	CHAINSTAY	HEAD TUBE ANGLE	SEAT POST ANGLE	HEAD TUBE	SEAT POST SIZE	DROPOUT	BRACKET	DISC BRAKE	WEIGHT
SIZE: Expert	TOP TUBE RIDER AREA: 19.69″	DOWN TUBE: 19.92″	CHAINSTAY: 13.39″	HEAD TUBE ANGLE: 73.5°	SEAT POST ANGLE: 71.0°	HEAD TUBE: 1 1/8″	SEAT POST SIZE: 25.4 mm	DROPOUT: 15 mm	BRACKET: Euro	DISC BRAKE: Postmount	WEIGHT: 1237 g
SIZE: Expert XL	TOP TUBE RIDER AREA: 20.67″	DOWN TUBE: 20.87″	CHAINSTAY: 13.58″	HEAD TUBE ANGLE: 73.5°	SEAT POST ANGLE: 71.0°	HEAD TUBE: 1 1/8″	SEAT POST SIZE: 25.4 mm	DROPOUT: 15 mm	BRACKET: Euro	DISC BRAKE: Postmount	WEIGHT: 1263 g
SIZE: Pro 21	TOP TUBE RIDER AREA: 21″	DOWN TUBE: 21.02″	CHAINSTAY: 14.53″	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB30	DISC BRAKE: Postmount	WEIGHT: 1590 g
SIZE: Pro 21.5	TOP TUBE RIDER AREA: 21.5″	DOWN TUBE: 21.38″	CHAINSTAY: 14.96″	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB30	DISC BRAKE: Postmount	WEIGHT: 1603 g
SIZE: Pro 22	TOP TUBE RIDER AREA: 22″	DOWN TUBE: 21.85″	CHAINSTAY: 15.20″	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB30	DISC BRAKE: Postmount	WEIGHT: 1630 g
SIZE: Pro 22.5	TOP TUBE RIDER AREA: 22.5″	DOWN TUBE: 22.28″	CHAINSTAY: 15.47″	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB30	DISC BRAKE: Postmount	WEIGHT: 1635 g
SIZE: Pro 23	TOP TUBE RIDER AREA: 23″	DOWN TUBE: 22.80″	CHAINSTAY: 15.71″	HEAD TUBE ANGLE: 74.3°	SEAT POST ANGLE: 71.0°	HEAD TUBE: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB30	DISC BRAKE: Postmount	WEIGHT: 1659 g
SIZE: Cruiser	TOP TUBE RIDER AREA: 22.20″	DOWN TUBE: 22.72″	CHAINSTAY: 15.47″	HEAD TUBE ANGLE: 74.0°	SEAT POST ANGLE: 71.0°	HEAD TUBE: Tap 1 1/8″ – 1.5″	SEAT POST SIZE: 27.2 mm	DROPOUT: 15 mm	BRACKET: BB30	DISC BRAKE: Postmount	WEIGHT: 1665 g

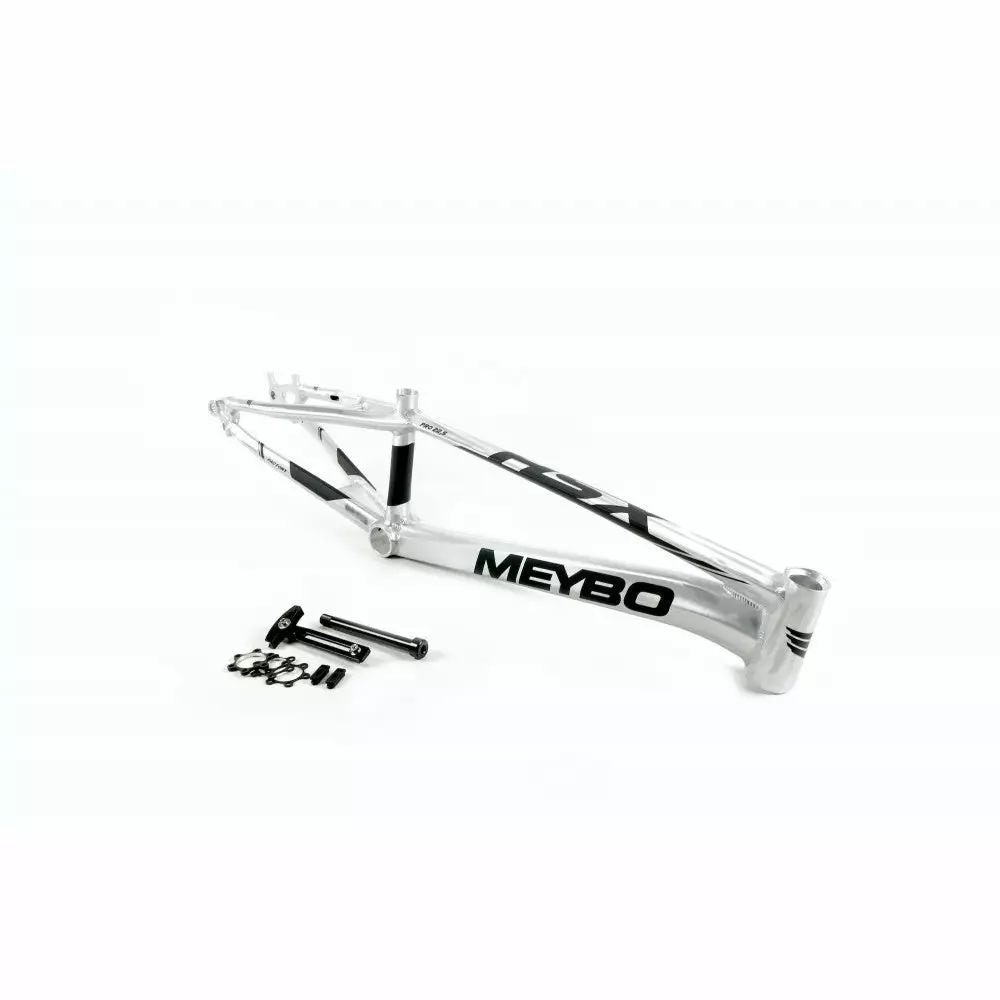

IMAGE NOTE: The image shown is the Pro L 22.5” size. You will be getting the size that you order when you purchase.
