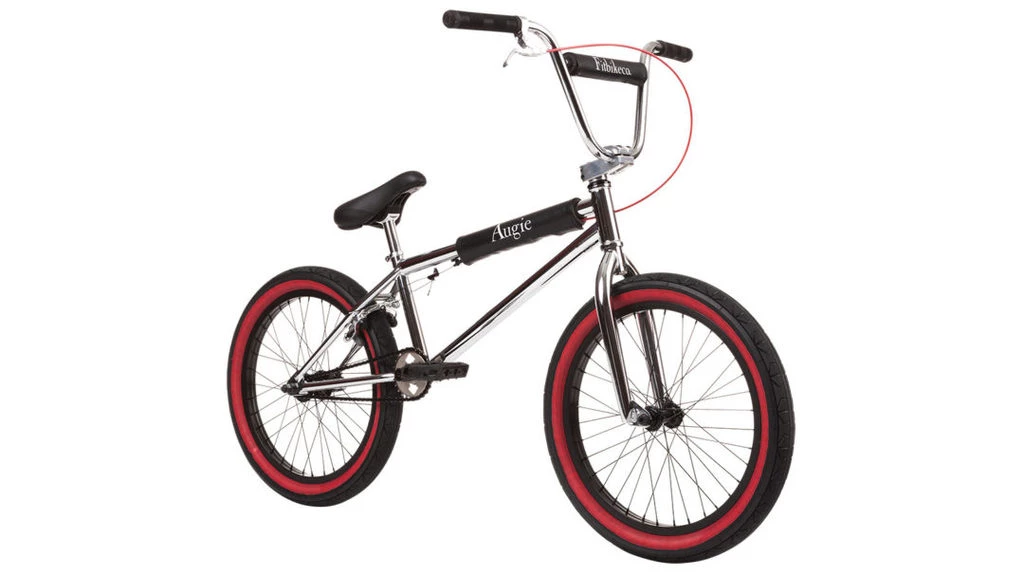

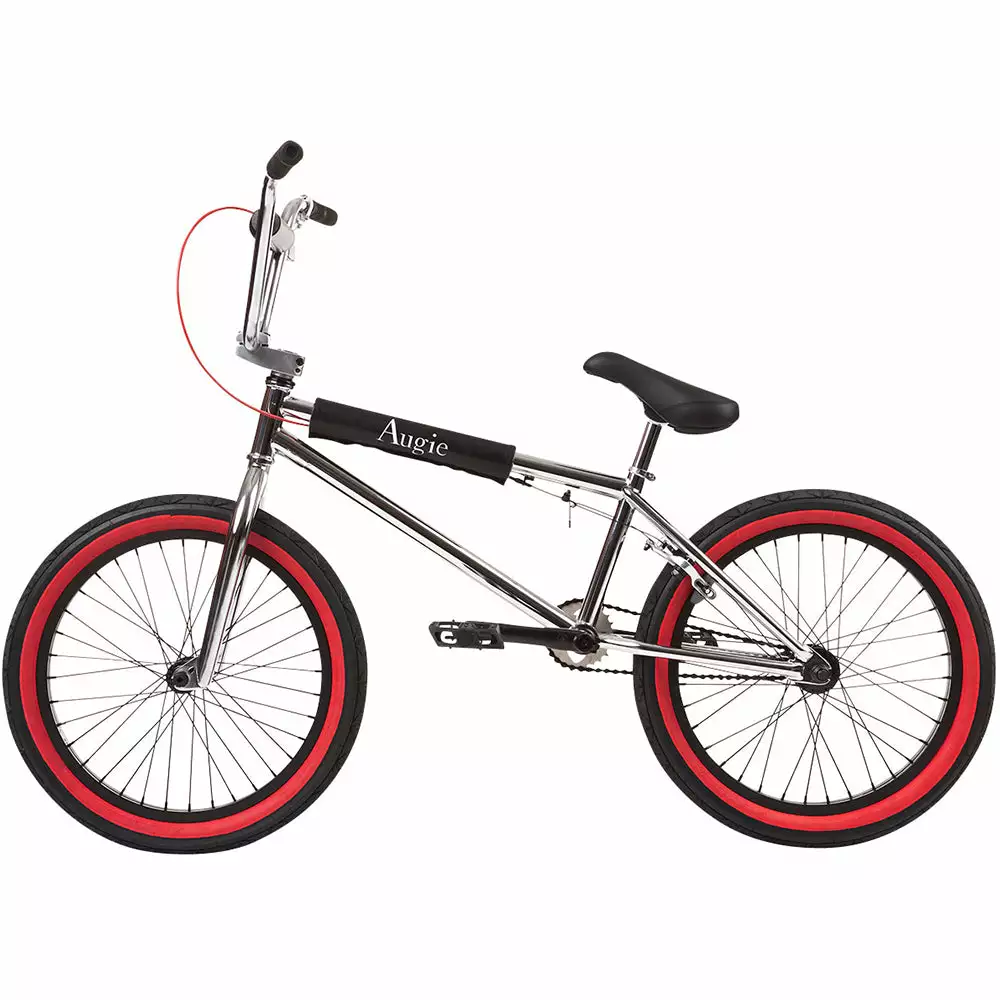

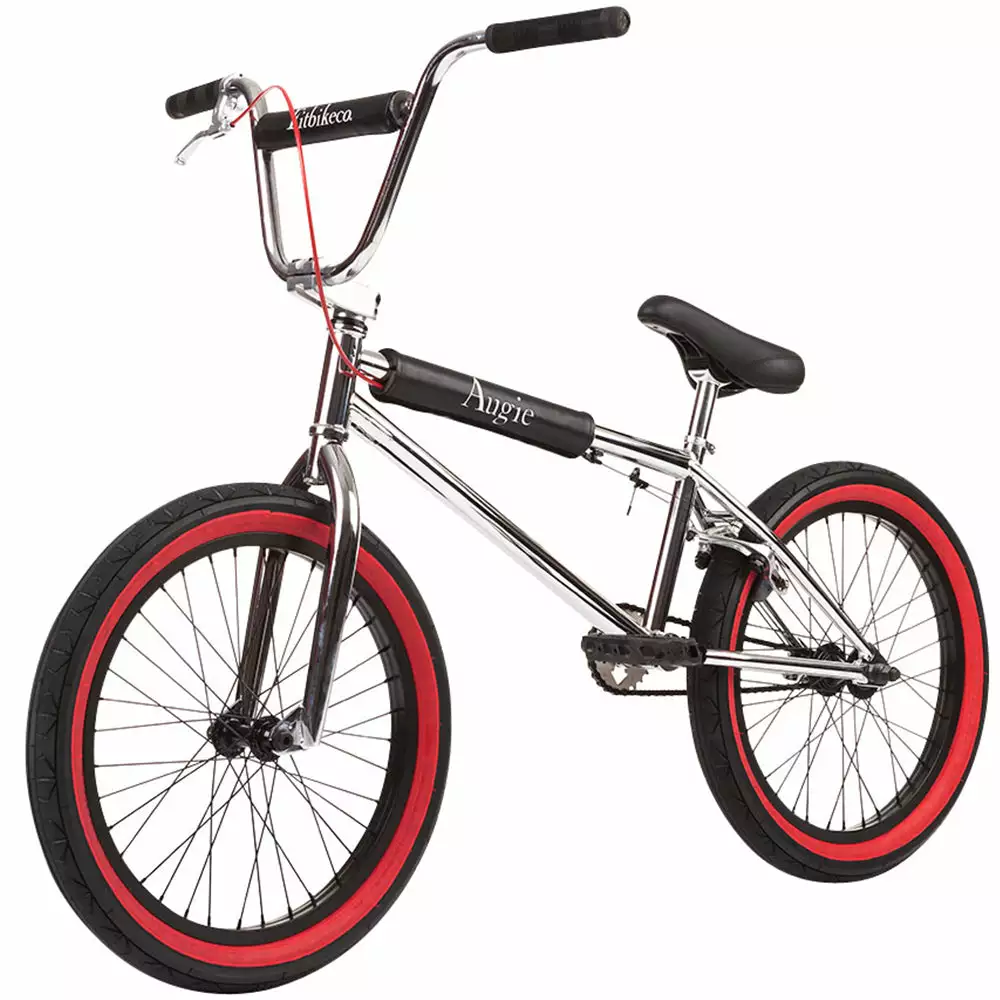

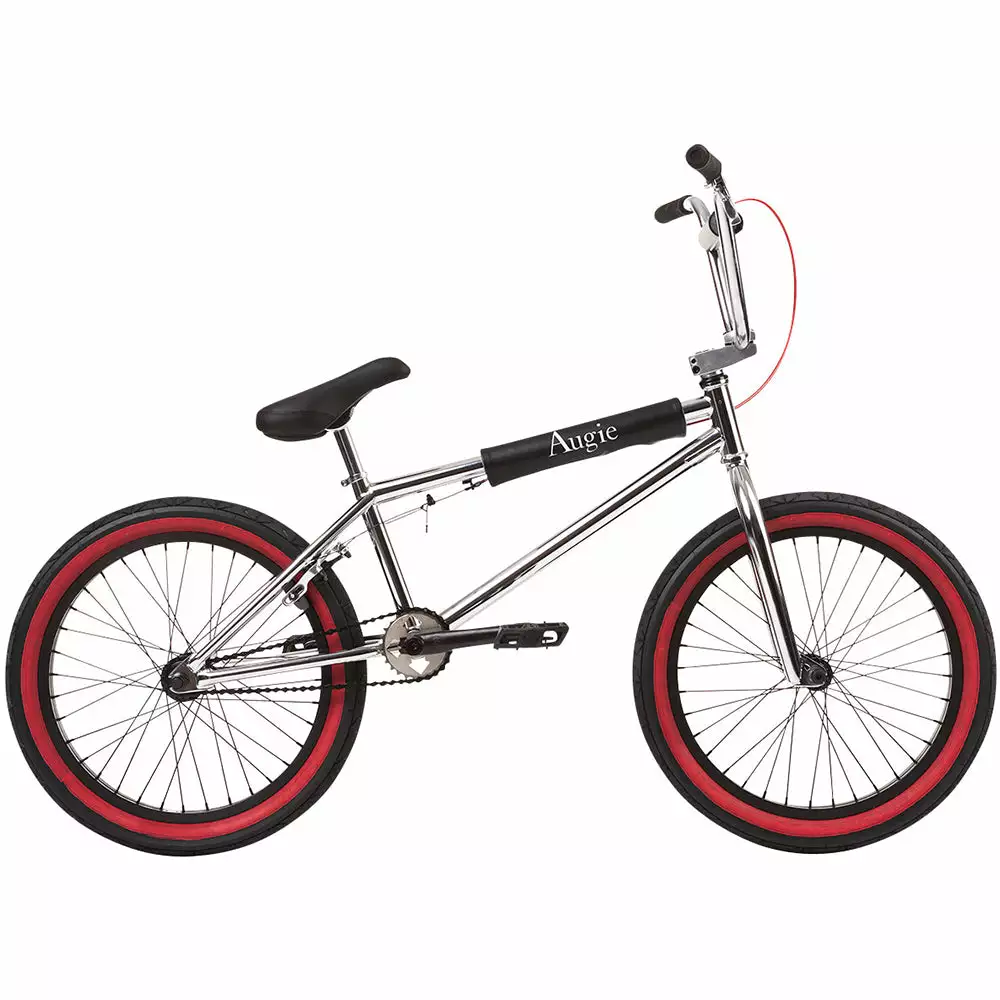

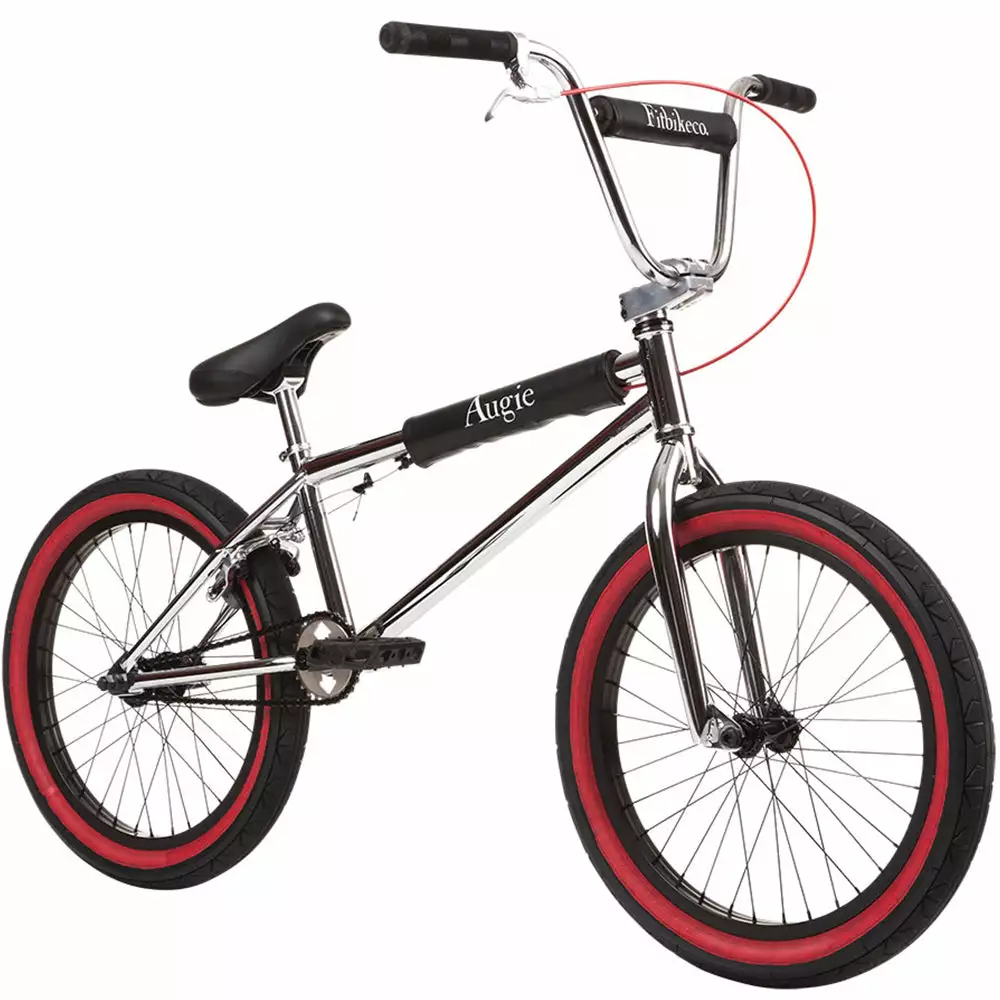

Fit Augie RHD 20.75″TT BMX Bike-Chrome

SPECIFICATION

• FRAME: Full Cro-Mo
• FORK: Full Cro-Mo 25mm Offset
• HANDLEBAR: 9.25” X 29” 2-PC Cro-Mo
• STEM: FIT FORGED Top Load 50mm
• HEADSET: Integrated
• GRIPS: FIT Longtech No Flange
• BRAKES: Thread-On 990 Mounts
• REAR BRAKE: 990 U-Brake
• BRAKE LEVER: Hinged
• BRAKE CABLE: Straight
• GEARING: 25/9 RHD or LHD
• CRANKS: FIT Indented Cro-Mo 165mm
• BOTTOM BRACKET: Mid – Sealed Bearing
• SPROCKET: FIT Tri 25T
• PEDALS: FIT MAC PC
• CHAIN: KMC S1
• FRONT HUB: 3/8” Sealed Female Axle
• REAR HUB: 14mm Cassette RHD / LHD
• RIMS: FIT S1W 36H Single Wall
• TIRES: FIT F/U 2.4”
• SEAT: FIT BARSTOOL Pivotal
• SEATPOST: Pivotal 200mm
• SEAT CLAMP: Integrated
• MISC: Augie / FIT Pad Set / RHD or LHD
• WEIGHT: 26.5 LB / 12.02 KG

GEOMETRY

• Top Tube: 20.75″
• Rear End: 13.11″
• Head Tube: 75.5°
• Seat Tube: 71°
• BB Height: 11.8″
• Standover: 8.80″
