Crupi 2019 Catalina Cruiser Frame-Glassy Black/White FRAMES

Original price was: $455.95.Current price is: $95.99.

SKU: crupi-4343147790408 Category: FRAMES Tags: 26380828744out-of-stock, BMX Parts, Bmx-frames, Crupi, Discontinued, Discountable, Frames

Elevate Your Shopping Experience
The quality solution for all your needs.
Safeguard Your Shopping Experience
Your needs, our top priority.

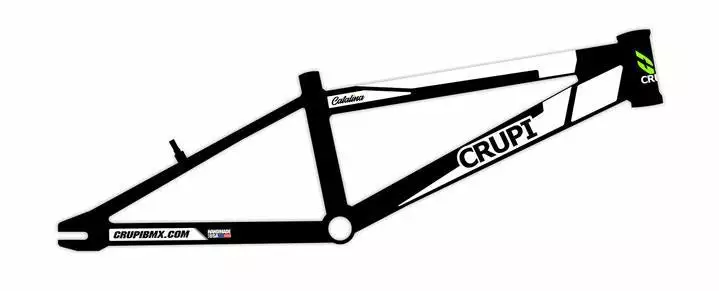

Introducing the 2019 Catalina Race Frame! Complete with the newly redesigned race graphics.

This frame is super light with all the right geometry and specs to let even the littlest of ones perform to their best ability. Designed for riders 4’2″ and smaller, there are part options that will allow you to make this bike a little smaller or even bigger until it is time to move up in frame size.

This all American made frame is constructed of high grade 6061-T6 Aluminum and features a butted top and down tube. These butted tubes maintain our frames strength and stiffness at the headset and bottom bracket while cutting down on weight. Undeniable race proven reliability!


Micro	Mini	Junior	Expert	Expert XL
Rider Size	4′ 2″ & smaller	4′ 3″- 4′ 5″	4′ 5″- 4′ 7″	4′ 7″- 5′ 1″	5′ 1″ – 5′ 5″
Top Tube Length	16.75″	17.75	18.50	19.50	20.25
Rider Area	17.75″	18.50	19.25	19.75	20.75
Head Angle	70	72	72	72	73
Head Tube Size	1″ Integrated	1″ Integrated	1″ Integrated	1″ Integrated	1-1/8″ Integrated
Seat Tube Angle	70	68	68	68	68
Seat Tube Length	7	8.25	8.25	8.25	9.5
Seat Tube Size	22.2mm	22.2mm	22.2mm	22.2mm	22.2mm
Seat Clamp Size	25.4mm	25.4mm	25.4mm	25.4mm	25.4mm
Bottom Bracket Height	10.50	11.00	11.00	11.00	11.00
Min/Max Rear Length	11.5″ – 13″	12.5″ – 14″	12.5″ – 14″	12.5″ – 14″	13″ – 14.5″
Wheels	20 x 1-1/8″	20 x 1-1/8″	20 x 1-1/8″	20 x 1-1/8″	20 x 1-3/8″
Frame Weight	2.04lbs	2.06lbs	2.07lbs	2.07lbs	3.01lbs

	Expert XXL	Pro	Pro XL	Pro 2X	Pro 3X
Rider Size	5′ 3″ +	5′ 3″ +	5′ 5″ +	6′ +	6’3″ +
Top Tube Length	20.50	20.50	21.25″	22.00	22.75
Rider Area	21.625	21.25	22.00	22.25	22.75
Head Angle	74	74	74	74	74
Head Tube Size	1-1/8″ Integrated	1-1/8″ Integrated	1-1/8″ Integrated	1-1/8″ Integrated	1-1/8″ Integrated
Seat Tube Angle	71	71	71	71	71
Seat Tube Length	9.5	9.5	9.5	9.5	9.5
Seat Tube Size	22.2mm	26.8mm	26.8mm	26.8mm	26.8mm
Seat Clamp Size	25.4mm	31.8mm	31.8mm	31.8mm	31.8mm
Bottom Bracket Height	11.60	11.60	11.60	11.60	11.60
Min/Max Rear Length	13″ – 14.5″	13.5″ – 15.25″	14.25″ – 15.75″	14.25″ – 15.75″	14.25″ – 15.75″
Wheels	20 x 1-3/8″	20 x 1.50/1.75	20 x 1.75	20 x 1.75	20 x 1.75
Frame Weight	3.02lbs	3.08lbs	3.09lbs	3.11lbs	3.12lbs

	Mini Cruiser	Jr Cruiser	Ex Cruiser	Ex XL Cruiser	Pro Cruiser	XL Cruiser
Rider Size	4′ 3″- 4′ 5″	4′ 5″- 4′ 7″	4′ 7″- 5′ 1″	5′ 1″ – 5′ 5″	5′ 4″ +	6′ +
Top Tube Length	17.75	18.50	19.625″	20.625″	21.25	22.75
Rider Area	20.25	21.00	21.375	22.50	22.50	23.50
Head Angle	71	72.5	72.5	73	74	74
Head Tube Size	1″ Integrated	1″ Integrated	1″ Integrated	1-1/8″ Integrated	1-1/8″ Integrated	1-1/8″ Integrated
Seat Tube Length	8.875	8.875	8.875	9.5	11.25	11.25
Seat Tube Angle	70	71	71	73	71	71
Seat Tube Size	22.2mm	22.2mm	22.2mm	22.2mm	26.8mm	26.8mm
Seat Clamp Size	25.4mm	25.4mm	25.4mm	25.4mm	31.8mm	31.8mm
Bottom Bracket Height	10.75	11.00	11.50	11.50	12.00	12.00
Min/Max Rear Length	14″ – 15.5″	14″ – 15.5″	14″ – 15.5″	14.5″ – 16″	15″ – 16.5″	15″ – 16.5″
Wheels	24 x 1-1/8″	24 x 1-1/8″	24 x 1-1/8″	24 x 1-3/8″	24 x 1.50/1.75	24 x 1.75
Frame Weight	2.08lbs	2.09lbs	2.09lbs	3.02lbs	3.09lbs	3.10lbs

* Measurments done by hand & can vary. Rider area is based on down tube length
