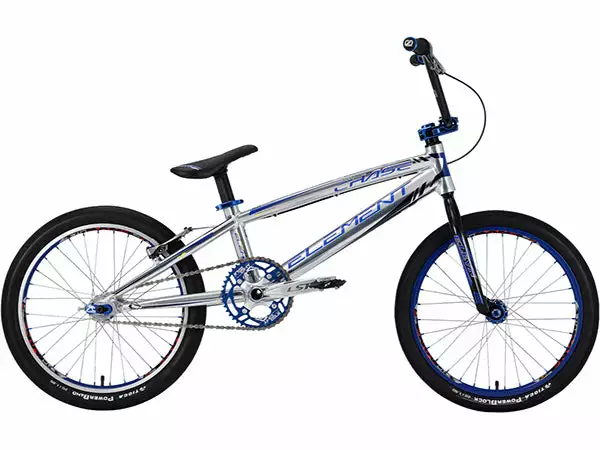

CHASE BICYCLES RACE BIKES Chase Element Pro XXL BMX Bike-Polish

The Chase Element was an instant hit as it had the perfect blend of hi-end parts on a innovative hydroformed frame, giving riders the best value for their money in a complete bike. But the 2016 Chase Element has set a new stage for high performance BMX racing bicycles. Using input and feed back from the worlds best racers on the Chase Factory Pro team, we have improved the 2016 Chase Element complete bikes.
Chase is excited to incorporate an Aero System seat tube & seat post on the new bikes. The new design helps aerodynamics, lightens up the overall weight of the bike, and stiffens the frame.

WEIGHT : 21.05 LBS / 9,55 KG WITHOUT PEDAL

RIDER SIZE : 5’9″ – 6’3″ / 1M75 – 1M90

KEY FEATURES

FRAME : Chase Element Pro XXL 21.5″ 7005 T6 Alloy
FORK : Eleven 20mm Tapered, Butted, Heat Treated
HEADSET : FSA Impact Integrated
CHAINRING : Insight 44 teeth 4 Bolts
CRANKSET : Excess LSP 2 Piece Crank 180mm Hollow Alloy Arm
WHEELS : Chase Element 20mm Thru Axle Front Hub, Element 10mm Cassette Hub, 16T, 6 pawls, 90 points Of Engagement with Sun Envy Rims 36H 20×1.75″
TIRES : Tioga PowerBand 20×1.85″ Front & PowerBlock 20×1.60″ Rear
BRAKES : Shimano Deore LX
SEAT : Chase SST (Streamline Seat Tube)

Frame Size	TT	CS min	LR	AF	SA	HT	SPL	BBH	Wheels
Expert	20″ 508 mm	13.5″ 342.9 mm	1.5″ 38.1 mm	73°	70°	4.7″ 120 mm	9.2″ 236 mm	11″ 279.4 mm	20×1-3/8″
Pro	20.5″ 520.7 mm	14.25″ 362 mm	1.5″ 38.1 mm	74°	72.5°	4.7″ 120 mm	9.2″ 236 mm	11.5″ 292.1 mm	20×1.5″
Pro XL	21″ 533.4 mm	14.3″ 363.3 mm	1.5″ 38.1 mm	74°	72.5°	4.7″ 120 mm	9.2″ 236 mm	11.5″ 292.1 mm	20×1.75″
Pro XXL	21.5″ 546.1 mm	14.5″ 368.3 mm	1.5″ 38.1 mm	74°	72.5°	4.7″ 120 mm	9.2″ 236 mm	11.5″ 292.1 mm	20×1.75″
Cruiser	21.5″ 546.1 mm	15.25″ 387.3 mm	1.5″ 38.1 mm	73°	69.5°	4.7″ 120 mm	9.8″ 250 mm	12″ 304.8 mm	24×1.75″



FRAME	Chase Element Pro XXL 21.5″ Top Tube 7005 T6 Alloy, Integrated Head Tube, 1-1/8″, Water Decals
FORK	Elevn PUL 20mm Cr-mo Fork, 1-1/8″ Steer Tube With Tapered, Butted, Heat Treated, Alloy Top Cap
HEADSET	FSA Impact Integrated Sealed Bearing
HANDLEBAR	Chase Element Bar 8″ Rise, 12° Back Sweep & 1° Up Sweep
GRIPS	Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	Chase Element 53mm 6061 T6 Alloy CNC Laser Etched Logo
BB	Outboard BB Cups BC 1.37″x68/73mm Cartridge Bearings
CHAINRING	Insight 44 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring
CRANK	Excess LSP 2 Piece Crank 180mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts
PEDAL	Nylon Platform Pedal 9/16″
CHAIN	KMC Z610HX 1/2″x3/32″
COG	16 Tooth
FRONT HUB	Chase Element 20mm Thru Axle Hub, 36H, Sealed Bearing
REAR HUB	Chase Element 10mm Cassette Hub 36H, Sealed Bearing, Steel Cassette Body, 6 Pawls, 90 Points Of Engagement
SPOKES	14 Gauge
NIPPLES	Alloy Nipples
FRONT RIM	Sun Rims Envy Front 36H 1.75″ With Eyelet Schrader valve
REAR RIM	Sun Rims Envy Front 36H 1.75″ With Eyelet Schrader valve
FRONT TIRE	Tioga PowerBand 1.85″
REAR TIRE	Tioga PowerBlock 1.60″
TUBES	20×1.50″/1.75″
BRAKE LEVER	Shimano Deore LX
BRAKE CALIPER	Shimano Deore LX
SADDLE	Elevn Embossed Leather Pivotal
SEAT POST	Chase SST Pivotal 27.2x260mm Polished Alloy
SEAT CLAMP	Chase Element QR Alloy 31.8mm Laser Etched Logo
CHAIN TENSIONNER	Kingstar Twin Hole Laser Etched Logo
