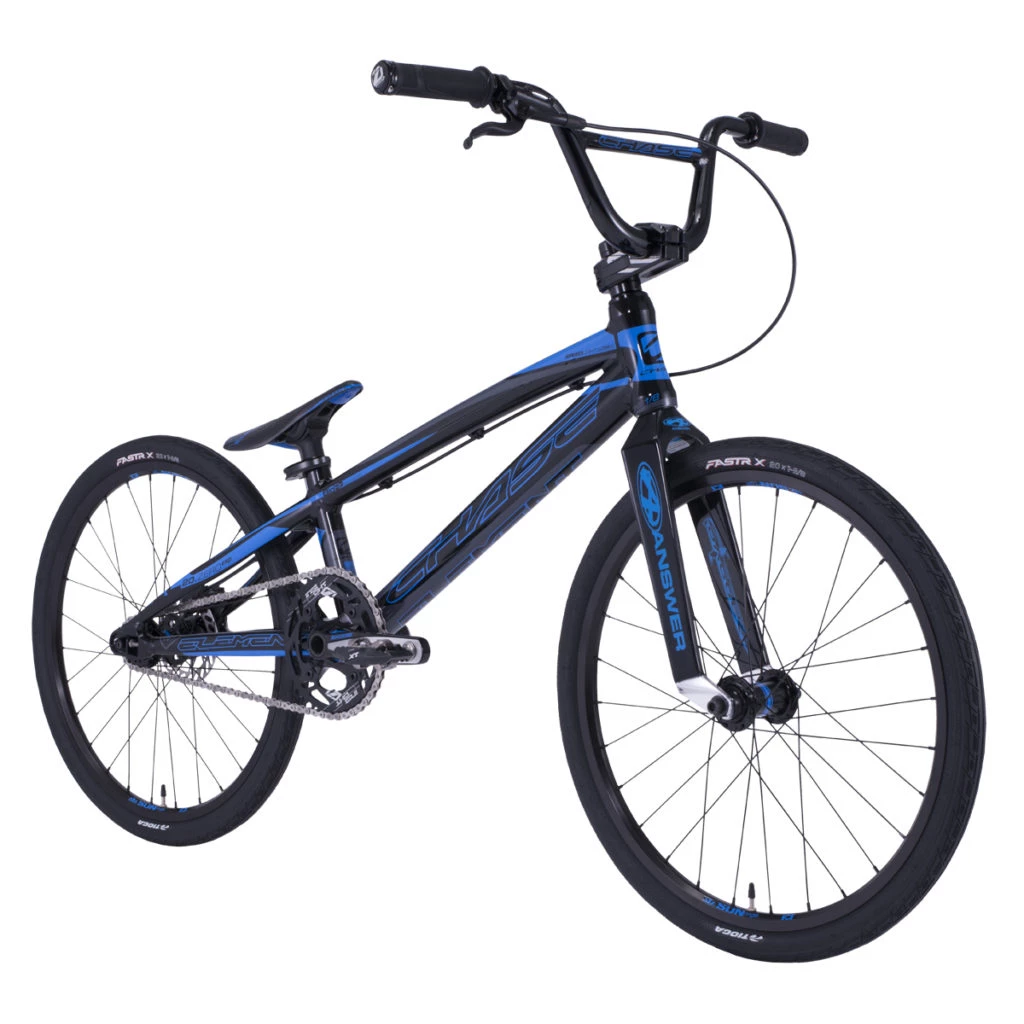

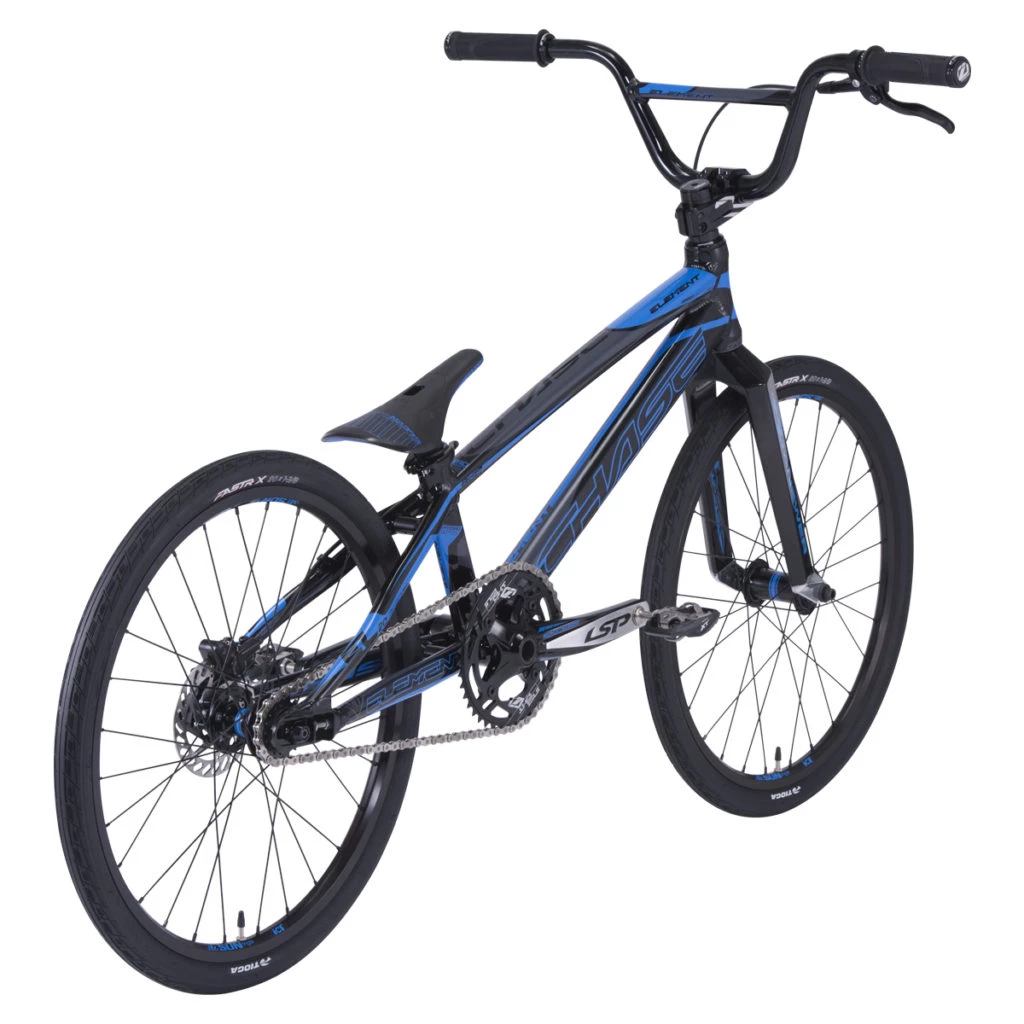

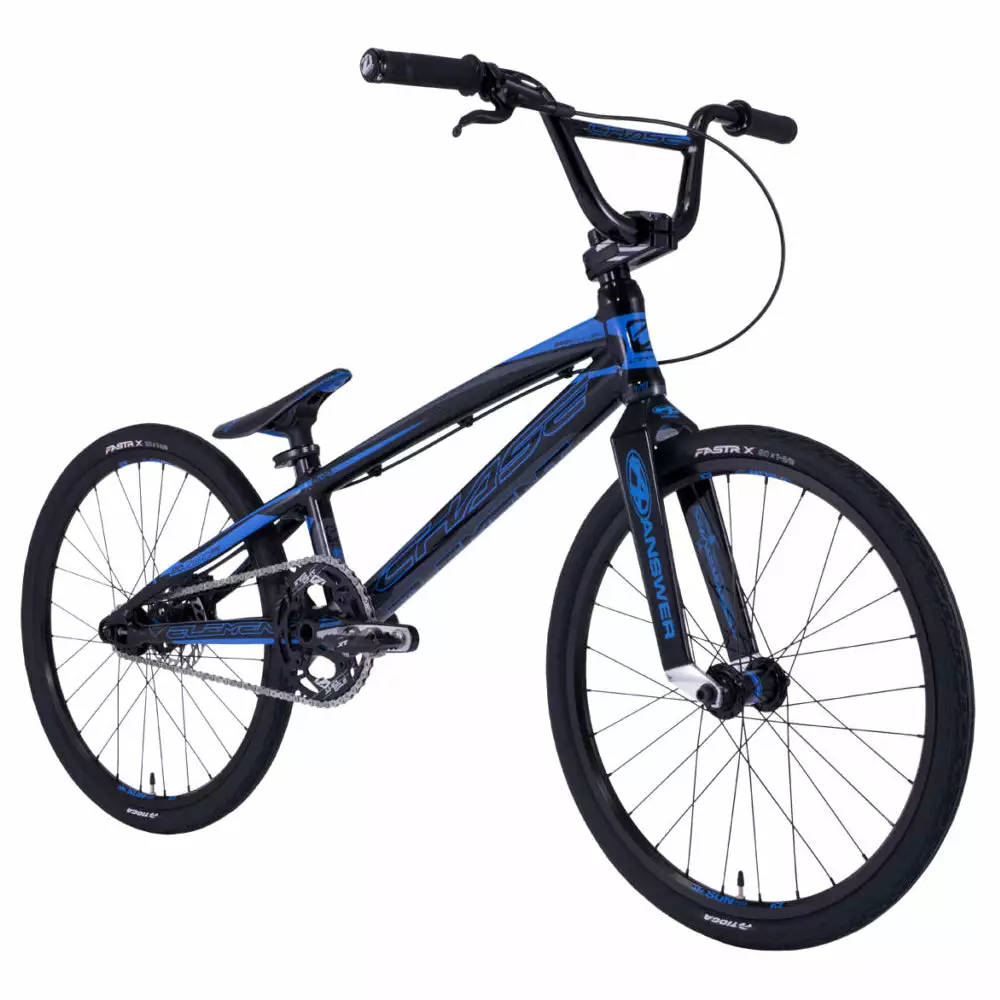

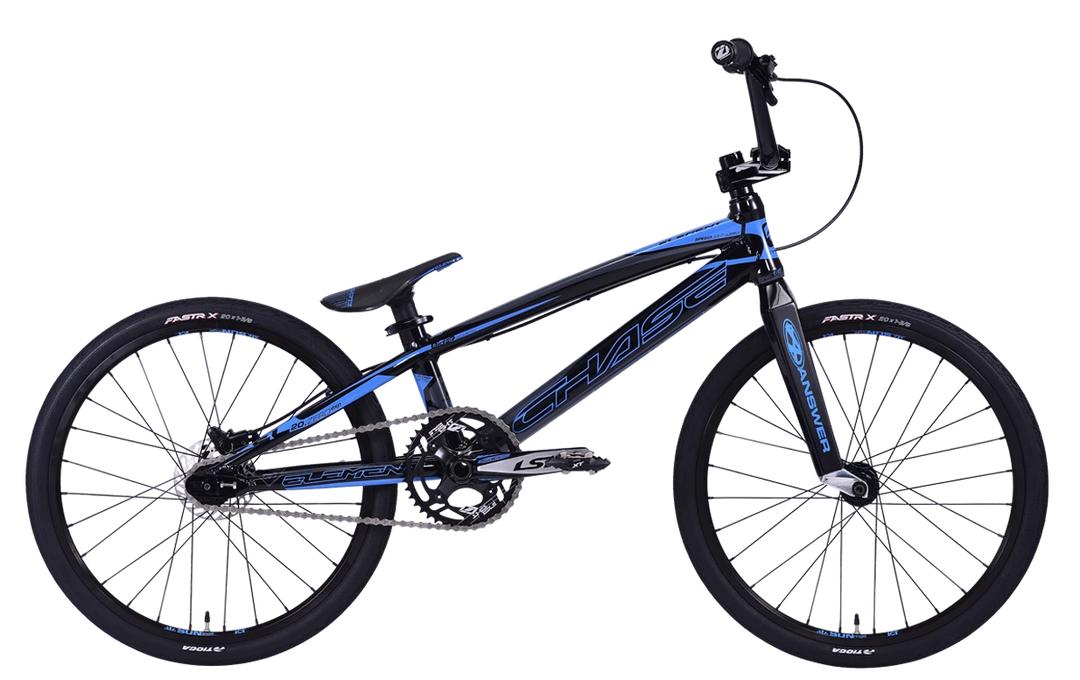

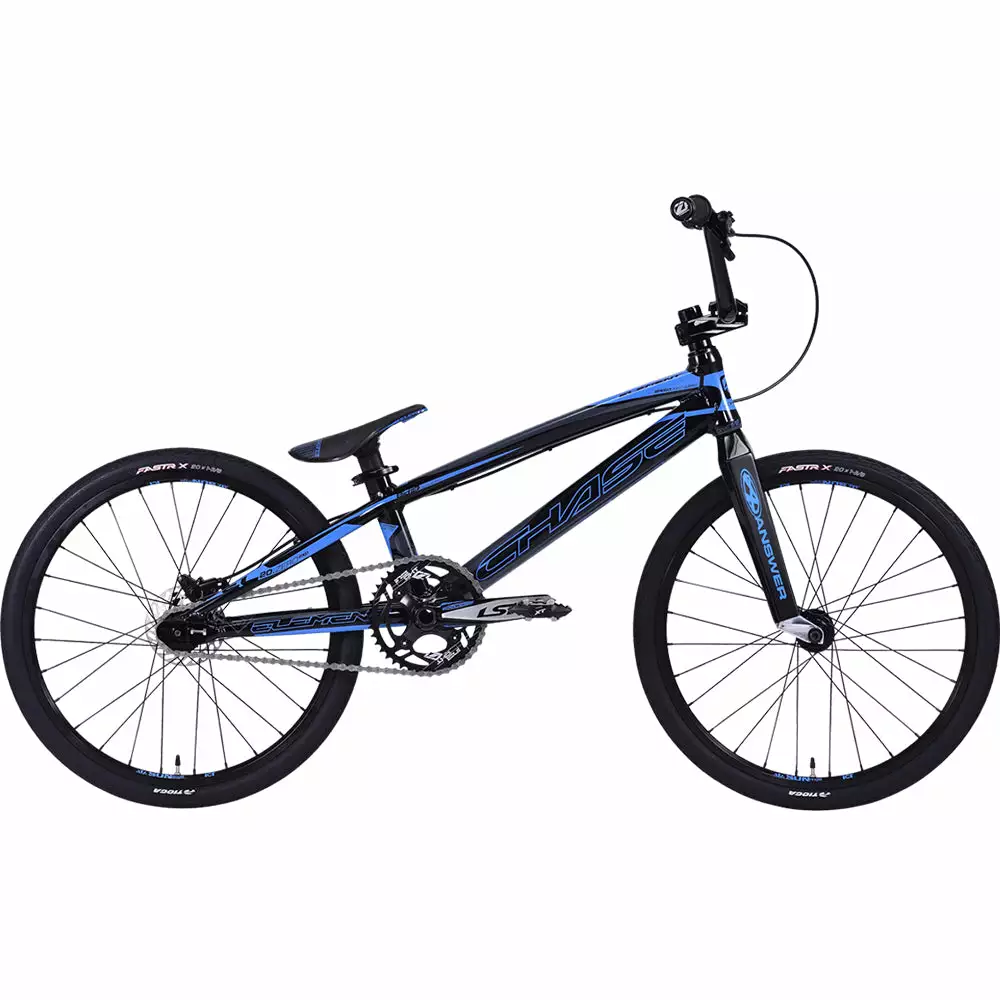

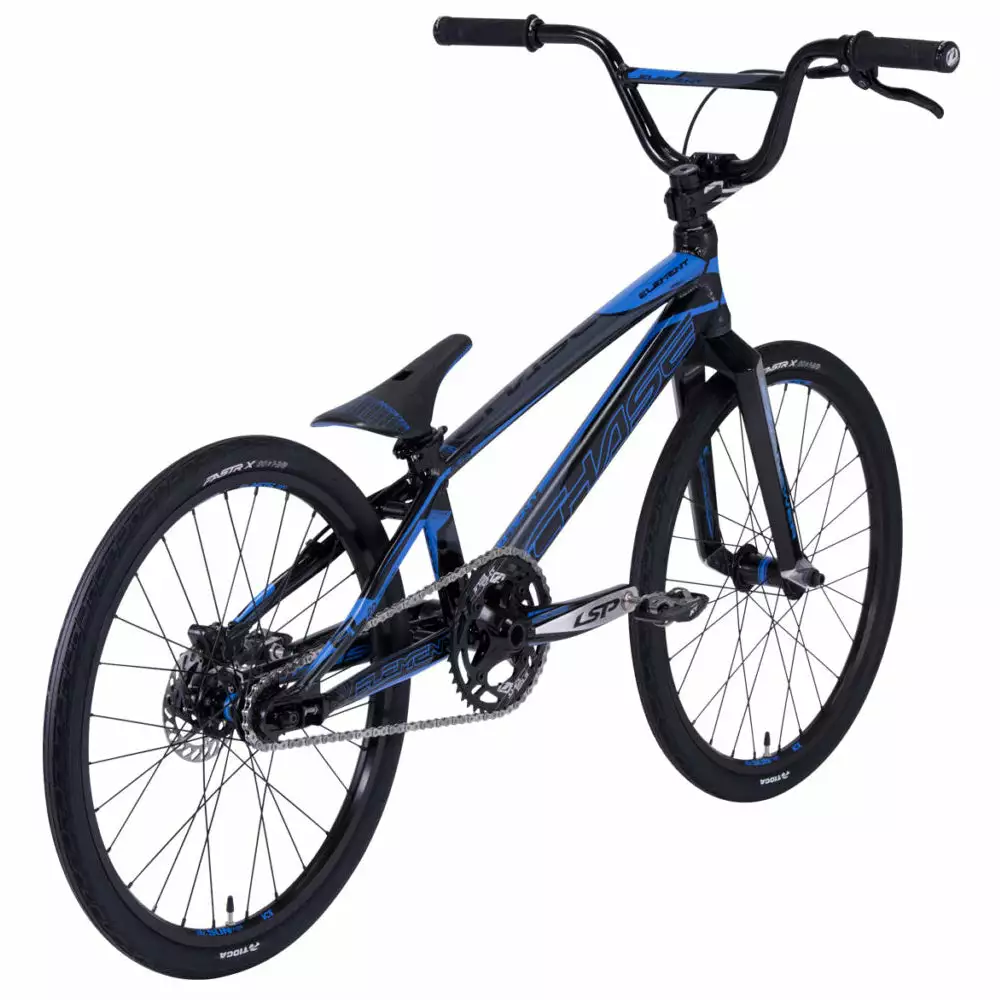

CHASE BICYCLES RACE BIKES Chase Element Expert XL BMX Bike-Black/Blue

The Chase Element bike has always been about excellence and being a bike built for Pro level racing. For 2020, we looked to our Chase Pro riders Connor Fields and Joris Daudet and asked them what they loved he most about their Chase ACT 1.0 race bikes. They noted how Disc brakes made a huge difference on the race track, how they loved the ease and smoothness of the Press Fit Bottom Brackets, and the talked about the ease of use of the improved rear chain tensioner systems they have on their bikes. So we took all of these features and added them to the 2020 Chase Element bikes. We added a Shimano Hydraulic Disc Brake, a BB86 Press Fit Bottom Bracket on the frame, and we incorpotrated the same Drop out design on the ACT 1 and RSP 4.0 frames onto the Element. We also added in a 31.8mm Chase Handlebar and Top Loading stem, to make this the ultimate Pro level complete race bike. Next we made the bike literally smoother and faster, by adding Tioga FASTR X tires, the only complete bike to come with this Pro level tire in BMX! Matching the speed of the tires is the upgraded rear hub, thats laced up on Sun Ringlé Rims, with the Chase Element Triple Precise clutch system has less drag while offering fast engagement. Other standout features include Elevn Pivotal seat and Aero system post, Excess LSP cranks, Insight 4 bolt chain ring and C.O.G.S. grips, and a KMC Chain. The 2020 Chase Element complete bike is the ultimate complete BMX race bike offered in BMX today!

KEY FEATURES

• RIDER SIZE: 4′ 7,5″ – 5′ 0,6″ / 1M41 – 1M54
• FRAME: Chase Element Expert XL 20″ 7005 T6 Alloy Hydroformed, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system

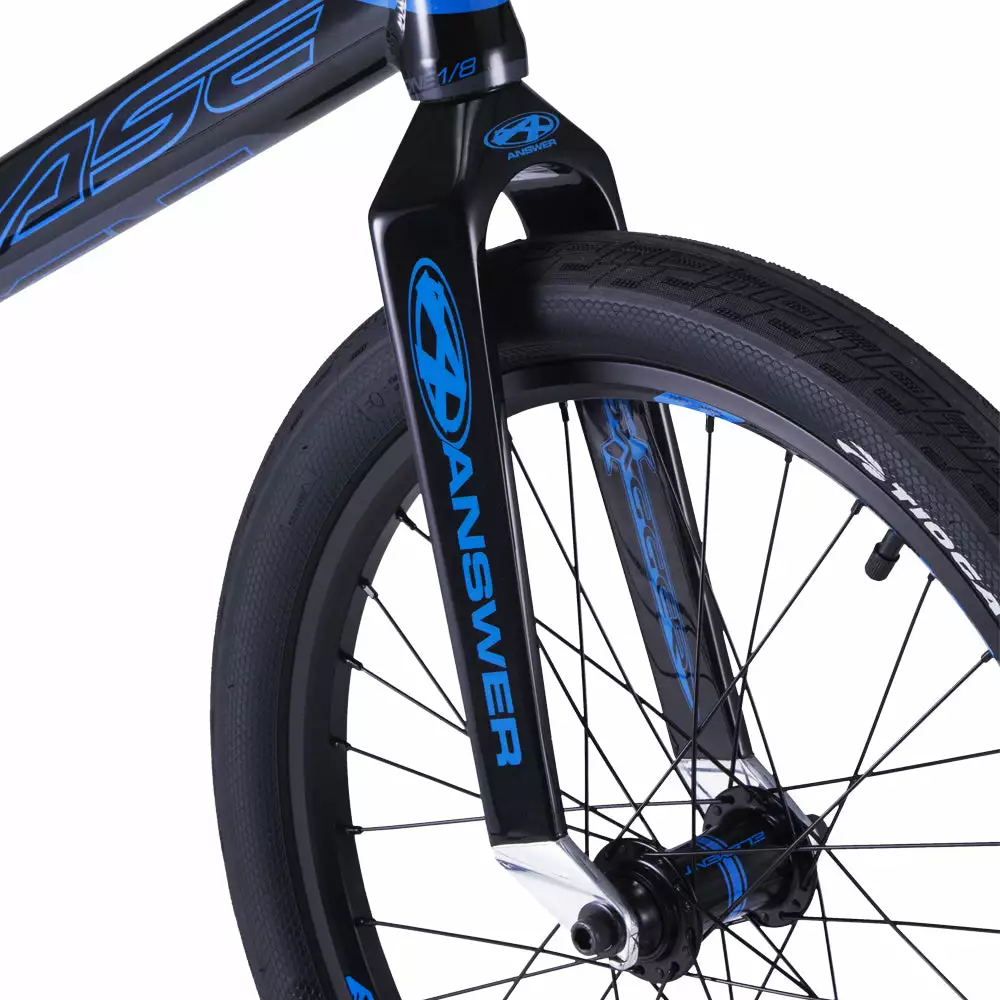

• FORK: Answer Dagger Carbon Pro 10mm
• HEADSET: FSA Impact Integrated

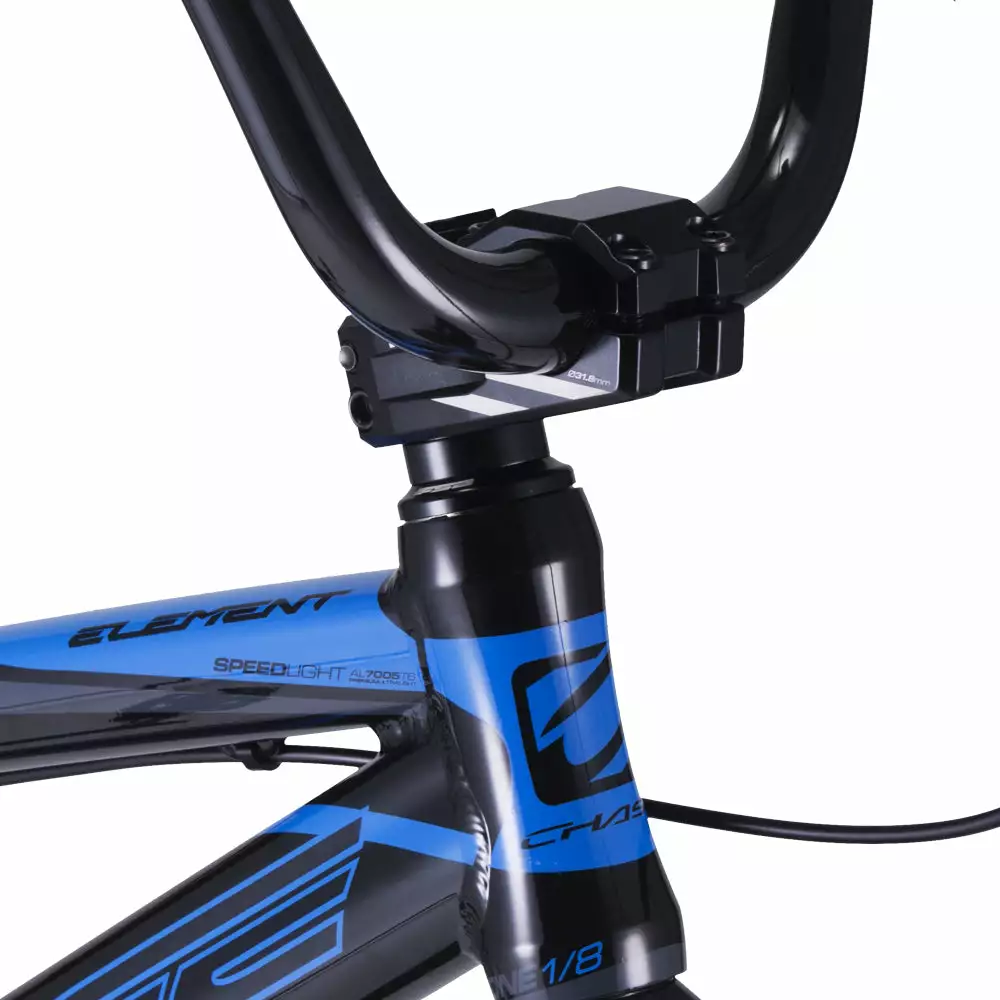

• STEM: Chase Element 31.8mm 45mm
• HANDLEBAR: Chase Element 31.8mm 5.75″
• CHAINRING: Insight 42 teeth 4 Bolts 104mm

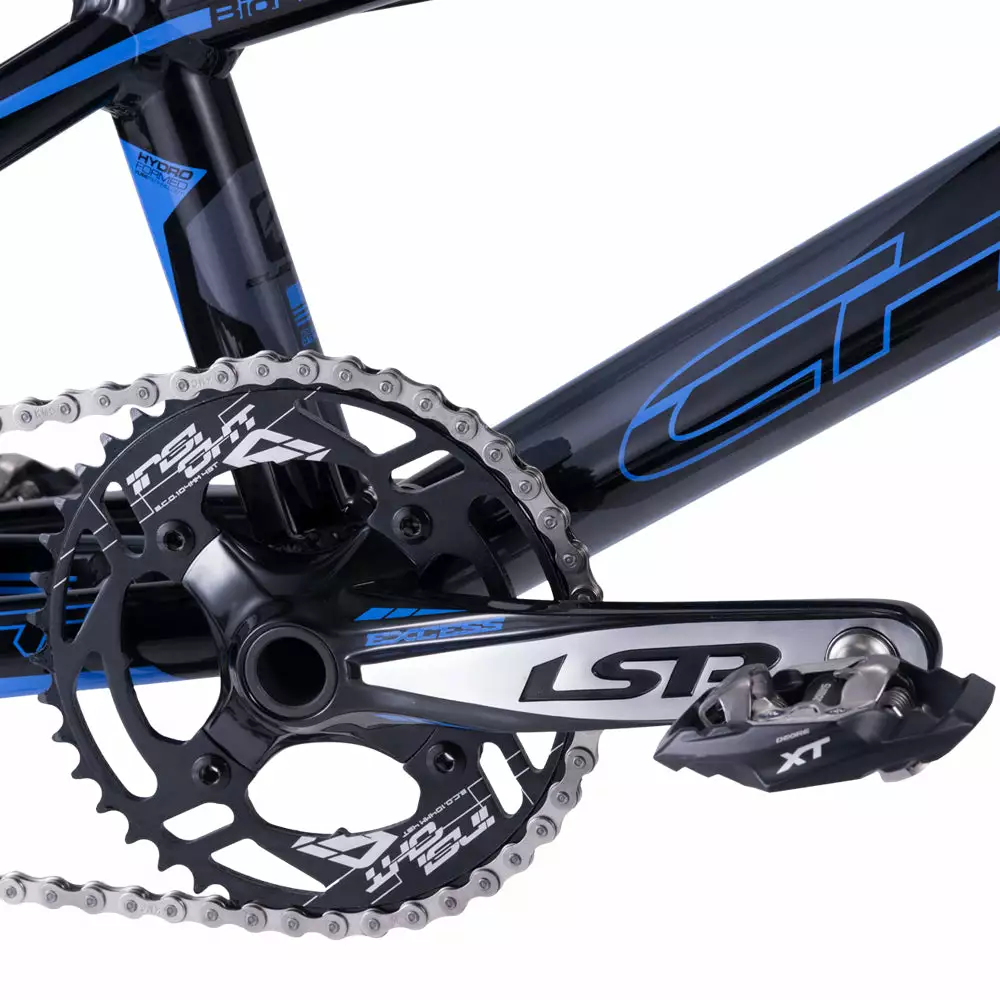

• CRANKSET: Excess LSP 2 Piece Crank 165mm, Press Fit BB 68/73mm
• HUBS: Chase Element 10mm, ISO disc brake standard (rear), Triple precise Rear Hub Clutch System (3 Pawls at Triple Angle Engagement for 24T Ratchets), Steel Cassette Body, 16T cog
• RIMS: Sun ICI-1 Rims 20×1-3/8″, 28H, No Brake Surface
• TIRES: Tioga Fastr X 20×1-3/8″ Front & Rear

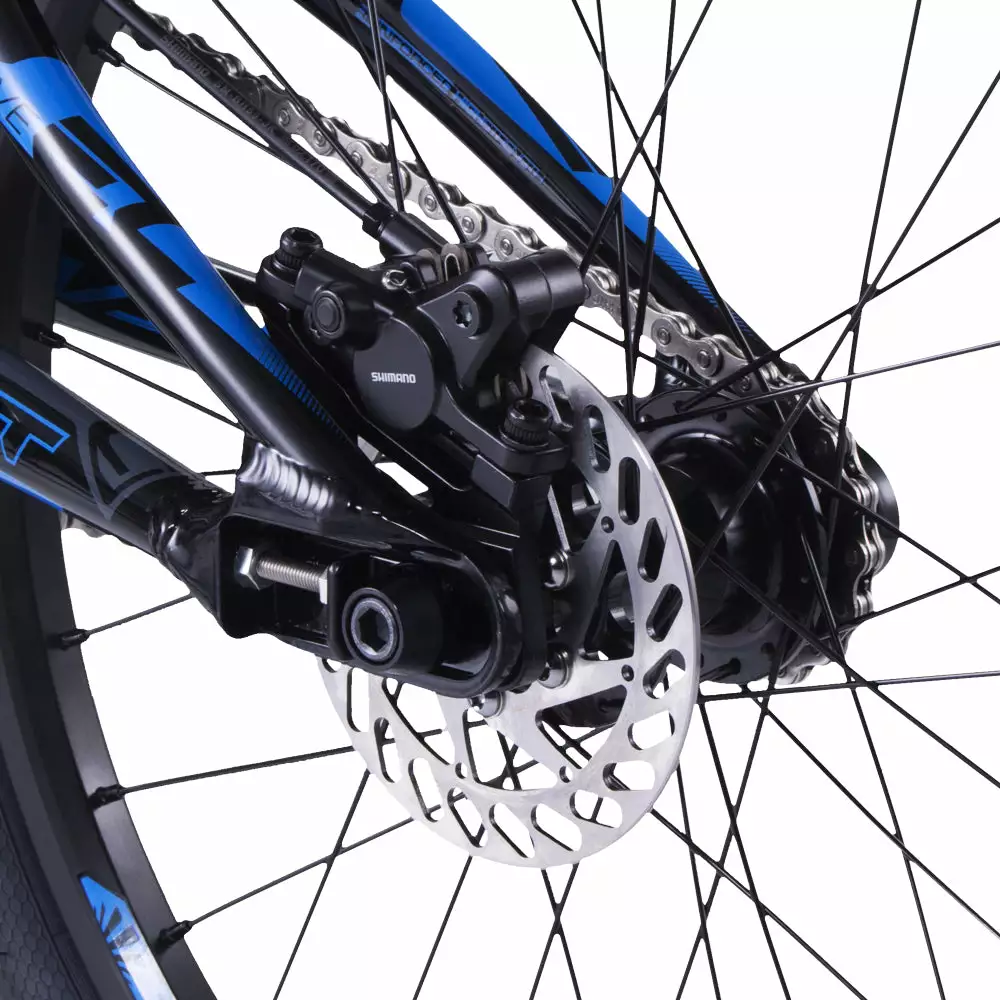

• BRAKES: Shimano Hydraulic series, 120mm disc rotor
• SEAT: Chase Aero seat post & clamp / Elevn PC Pivotal seat
• WEIGHT: 18.4 LBS / 8.2 KG WITH PEDALS



SPECIFICATIONS

• FRAME: Chase Element Expert XL 20″ Top Tube 7005 T6 Alloy, Integrated Head Tube 1-1/8″, Enclosed rear dropouts and Chain tensioner system
• FORK: Answer Dagger Carbon Pro, Alloy Drop Out 3/8″ Axle, 1-1/8″ Alloy Steer Tube, Alloy Top Cap
• HEADSET: FSA Impact Integrated Sealed Bearing
• HANDLEBAR: Chase Element 31.8mm, 5.75″ Rise, 8° Back Sweep & 2° Up Sweep
• GRIPS: Insight C.O.G.S 130mm Alloy Clamps Laser Etched Logo, PVC End Plug
• STEM: Chase Element 31.8mm, 45mm, 6061 T6 Alloy CNC Laser Etched Logo
• BB: Press Fit 68/73mm Cartridge Bearings
• CHAINRING: Insight 42 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring
• CRANK: Excess LSP 2 Piece Crank 165mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts
• PEDAL: Nylon Platform Pedal 9/16″
• CHAIN: KMC Z610HX 1/2″x3/32″
• COG: 16 Tooth
• FRONT HUB: Chase Element Hub, 3/8″ Axle, 28H, Sealed Bearing
• REAR HUB: Chase Element Mini ISO Hub, 3/8″ Axle, 28H, Sealed Bearing, M6 Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
• SPOKES: 14 Gauge
• NIPPLES: Brass Nipples
• RIMS: Sun Rims ICI-1 Front 28H 20×1-3/8″ No Brake Surface Presta Valve
• TIRES: Tioga Fastr X 20×1-3/8″
• TUBES: 20×1-3/8″ Presta valve
• BRAKE: Shimano Hydraulic Series, Resin Pads, 120mm Rotor
• SADDLE: Elevn PC Pivotal
• SEAT POST: Chase Aero Pivotal 27.2x260mm Polished Alloy
• SEAT CLAMP: Chase Aero QR Alloy 31.8mm

GEOMETRIES

• TT: 20″ (508 mm)
• CS Min: 13.5″ (342.9 mm)
• LR: 1.5″ (38.1 mm)
• AF: 73°
• SA: 70°
• HT: 4.7″ (120 mm)
• SPL: 9.2″ (236 mm)
• BBH: 11″ (279.4 mm)
• Wheels: 20×1-3/8″
