CHASE BICYCLES RACE BIKES Chase Element Expert BMX Race Bike-Black/Sand
Original price was: $418.00.$97.99Current price is: $97.99.
- Elevate Your Shopping Experience
- The quality solution for all your needs.
- Safeguard Your Shopping Experience
- Your needs, our top priority.

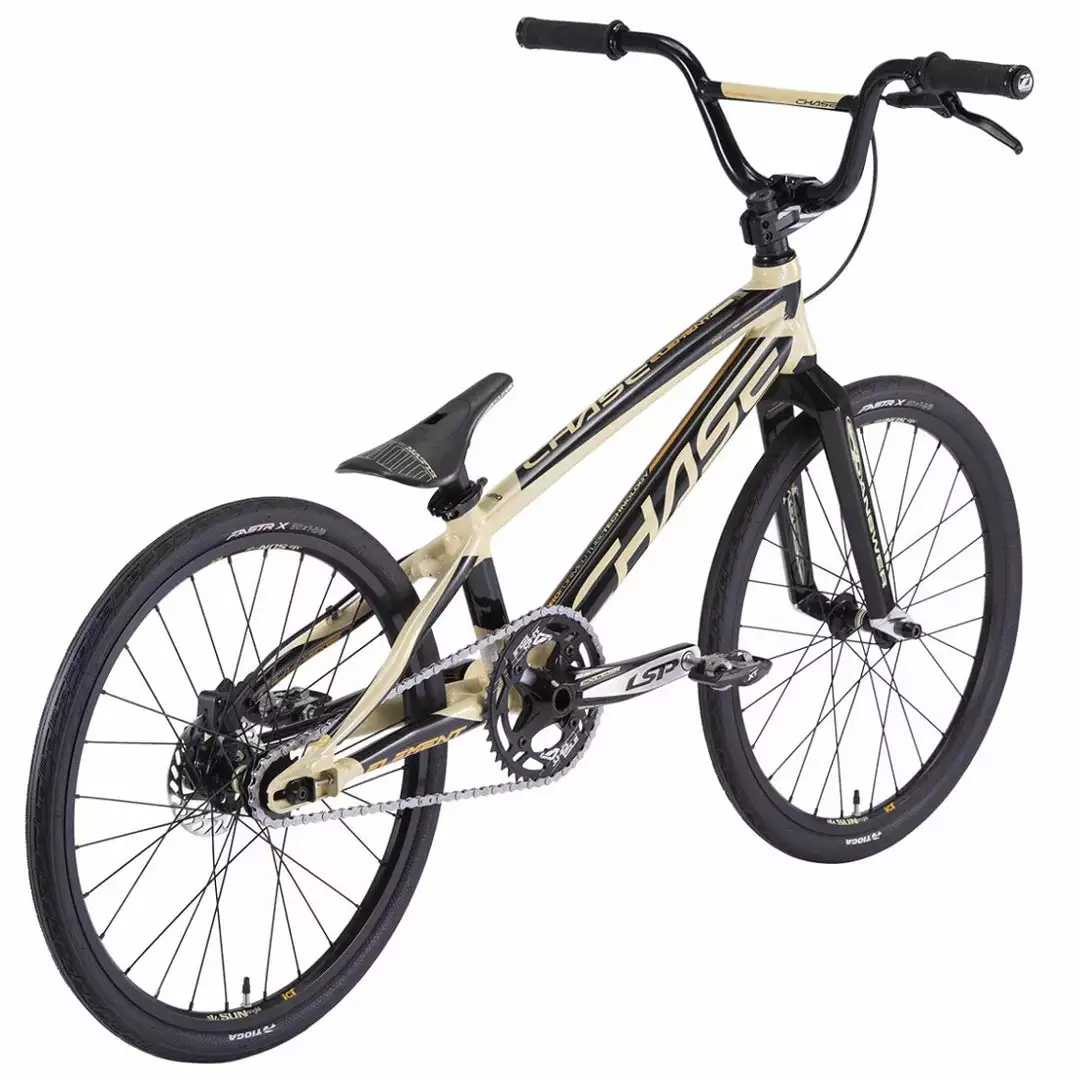

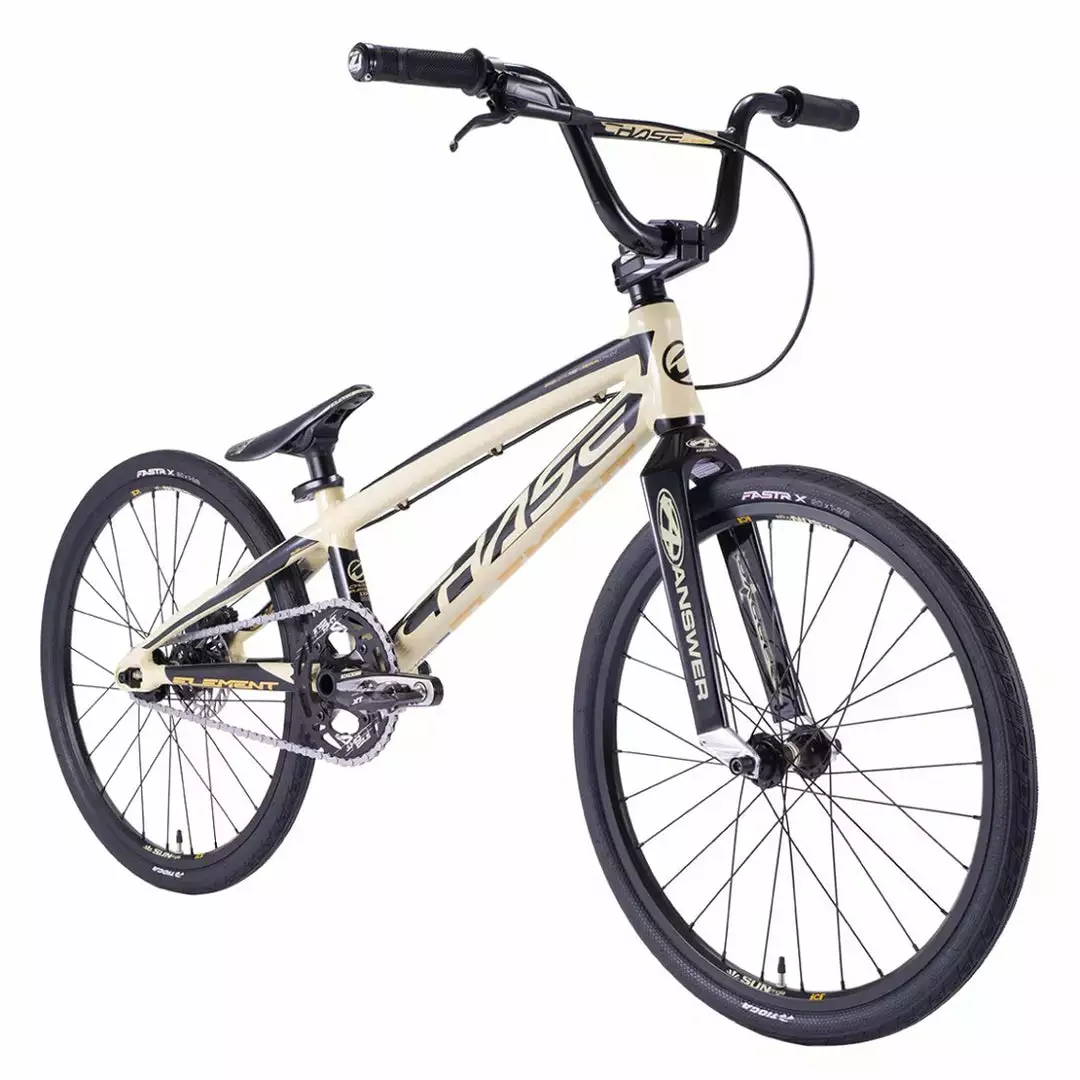

Chase Bicycles have gone and made for you the Chase 2022 Element Expert BMX Race Bike-Black/Sand, a pro-level, high-end bike without the astronomical price tag you might have if you built a custom bike yourself. This bike has it all right out of the box. The frame is hydroformed 7005 T6 Alloy with an Answer Dagger Carbon fork sticking out the front. With an Excess crankset, Sun rims, and Tioga Powerblock tires rounding out the package. Stopping power lovingly provided by a hydraulic disk brake system.
SPECIFICATION
- FRAME: CHASE Element Expert 20″ Top tube, Hydroformed 7005-T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
- FORK: ANSWER Dagger Carbon Pro 10mm
- STEM: CHASE Element 31.8mm 45mm
- HANDLEBAR: CHASE Element 31.8mm 5.75″
- CHAINRING: INSIGHT 42T 4 Bolts BCD 104mm
- CRANKSET: EXCESS LSP 165mm, Press Fit BB86
- HUBS: CHASE Element 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
- RIMS: SUN RINGLÉ ICI-1 Rims 20×1-3/8″, 28H, No Brake Surface
- TIRES: TIOGA Fastr X 20×1-3/8″ Front & Rear
- BRAKES: Hydraulic lever and caliper, 120mm disc rotor, Lock Disc Adaptor
- SEAT: CHASE Aero seat post & clamp / ELEVN PC Pivotal seat
- WEIGHT: 18.4 LBS / 8.2 KG WITH PEDALS
- RIDER SIZE: 4′ 7,5″ – 5′ 0,6″ / 1M41 – 1M54
Please Note: The clipless Shimano pedals shown in the photos are for illustrative purposes only and are not the pedals that come with the bikes. The actual pedals included with the bikes are a Nylon OEM Platform Pedal.
GEOMETRY
| SIZE | TT | CS MIN | LR | AF | SA | HT | SPL | BBH | WHEELS |
|---|---|---|---|---|---|---|---|---|---|
| SIZE: Expert | TT: 20″ (508 mm) | CS MIN: 13.5″ (342.9 mm) | LR: 1.5″ (38.1 mm) | AF: 73° | SA: 70° | HT: 4.7″ (120 mm) | SPL: 9.2″ (236 mm) | BBH: 11″ (279.4 mm) | WHEELS: 20×1-3/8″ |
| SIZE: Pro | TT: 20.5″ (520.7 mm) | CS MIN: 14.25″ (362 mm) | LR: 1.5″ (38.1 mm) | AF: 74° | SA: 72.5° | HT: 4.7″ (120 mm) | SPL: 9.2″ (236 mm) | BBH: 11.5″ (292.1 mm) | WHEELS: 20×1.5″ |
| SIZE: Pro XL | TT: 21″ (533.4 mm) | CS MIN: 14.3″ (363.3 mm) | LR: 1.5″ (38.1 mm) | AF: 74° | SA: 72.5° | HT: 4.7″ (120 mm) | SPL: 9.2″ (236 mm) | BBH: 11.5″ (292.1 mm) | WHEELS: 20×1.75″ |
| SIZE: Pro XXL | TT: 21.5″ (546.1 mm) | CS MIN: 14.5″(368.3 mm) | LR: 1.5″ (38.1 mm) | AF: 74° | SA: 72.5° | HT: 4.7″ (120 mm) | SPL: 9.2″ (236 mm) | BBH: 11.5″ (292.1 mm) | WHEELS: 20×1.75″ |
| SIZE: Pro XXXL | TT: 22″ (558,8 mm) | CS MIN: 14.5″ (368.3 mm) | LR: 1.5″ (38.1 mm) | AF: 74° | SA: 72.5° | HT: 4.7″ (120 mm) | SPL: 9.2″ (236 mm) | BBH: 11.5″ (292.1 mm) | WHEELS: 20×1.75″ |
| SIZE: Pro Cruiser | TT: 21.5″ (546.1 mm) | CS MIN:15.25″ (387.3 mm) | LR: 1.5″ (38.1 mm) | AF: 73° | SA: 69.5° | HT: 4.7″ (120 mm) | SPL: 9.8″ (250 mm) | BBH: 12″ (304.8 mm) | WHEELS: 24×1.75″ |
| SIZE: Pro+ Cruiser | TT: 22″ (558,8 mm) | CS MIN: 15.25″ (387.3 mm) | LR: 1.5″ (38.1 mm) | AF: 73° | SA: 69.5° | HT: 4.7″ (120 mm) | SPL: 9.8″ (250 mm) | BBH: 12″ (304.8 mm) | WHEELS: 24×1.75″ |
