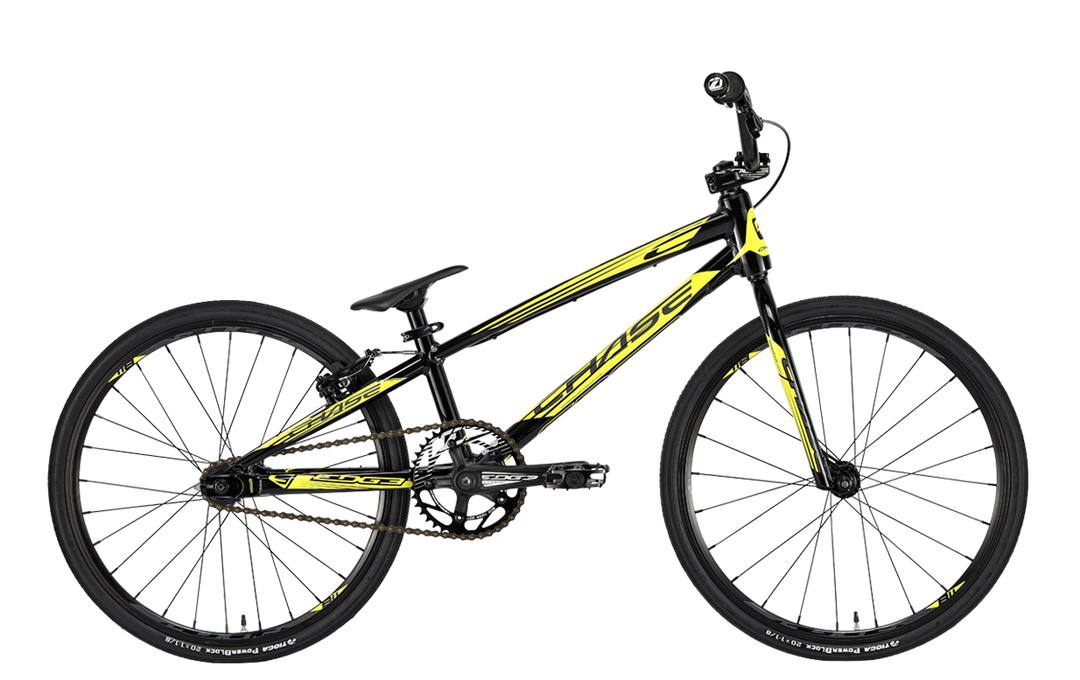

CHASE BICYCLES RACE BIKES Chase Edge Junior BMX Bike-Black/Yellow

The Chase Edge bike is a pure BMX race machine. It has been one of the most sought after race bikes in BMX racing due to the history of the company and our attention to detail. Each year we want to improve our design and style and for 2020, we even surpassed our own expectations! The 2020 Chase Edge frame look has changed drastically with a Black and Neon design and this showcases the upgraded Edge frame that has Triple butted Premium Ultralight Alloy Hydroformed tubes on the entire Edge complete bike size range. The Chase Edge has some of the best parts made for a complete BMX race bike: Tioga PowerBlock Tires, a KMCChain, Tektro brake set, Insight chainring, grips and chain tensioners, and Pivotal seat/seat post combo, as well as a rear cassette hub. All these parts together help give you the Edge over your competition, and to make the 2020 Chase Edge one of the most dialed in complete bikes in BMX. Edge out the competition on and off the track with the new 2020 Chase Edge complete race bike!



KEY FEATURES

FRAME : Chase Edge Junior 18.75″ Top Tube Triple Butted Hydroformed
FORK : Chase Edge Full Cr-mo Fork, 1″ Steer Tube
HEADSET : Integrated Sealed Bearing
CHAINRING : Insight 40 Teeth 5 Bolts 110mm
CRANKSET : Chase Edge Alloy 155mm
HUBS : Double Contact Seals Bearings Front, Sealed Cartridge Bearing Rear, Steel Cassette Body with 4 Pawls at Double Angle Engagement for 24T Ratchets, 16T
RIMS : Chase Edge 118 Double Wall 20″x1-1/8″, 24H Front 28H Rear
TIRES : Tioga PowerBlock 20″x1-1/8″ Front and Rear
BRAKES : Tektro

RIDER SIZE : 4’5″ – 4’11” / 1M35 – 1M50

WEIGHT : 17.5 LBS / 7,95 KG WITHOUT PEDAL



FRAME	Chase Edge Junior 18.75″ Top Tube 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, 1-1/8″, Water Decals
FORK	Chase Edge Full Cr-mo, 1″ Steer Tube With Tapered Blades
HEADSET	Integrated 1-1/8″ with 1″ converter, Sealed Bearing
HANDLEBAR	Chase Edge Bar 4.25″ Rise, 8° Back Sweep & 2° Up Sweep
GRIPS	Insight C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	Chase Edge 40mm 6061 T6 Alloy Laser Etched Logo
BB	113mm Sealed Cartridge Square BB
CHAINRING	Insight 40 Tooth 5 Bolts 110mm 1/2″x3/32″ 3mm Alloy Ring
CRANK	Chase Edge 3 Pieces Crank 155mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts and Nuts
PEDAL	Platform Pedal 9/16″
CHAIN	KMC Z33 1/2″x3/32″
COG	16 Tooth
FRONT HUB	Mini Hub, 24H, Double Contact Seals Bearing with Dust Caps, 3/8″ Axle/Nuts
REAR HUB	28H, Sealed Cartridge Bearings with Dust Caps, 3/8″ Axle/Nuts, Steel Cassette Body with 4 Pawls at Double Angle Engagement for 24T Ratchets
SPOKES	14 Gauge
NIPPLES	Brass Nipples
FRONT RIM	Chase Edge 118 Double Wall 24H 20″x1-1/8″ Presta Valve
REAR RIM	Chase Edge 118 Double Wall 28H 20″x1-1/8″ Presta Valve
FRONT TIRE	Tioga PowerBlock 20″x1-1/8″
REAR TIRE	Tioga PowerBlock 20″x1-1/8″
TUBES	20”x1-1/8″ Presta Valve
BRAKE LEVER	Tektro 317A
BRAKE CALIPER	Tektro 926AL
SADDLE	Insight Mini Pivotal
SEAT POST	Pivotal 25.4x110mm Alloy
SEAT CLAMP	Chase Edge QR Alloy 28.6mm
CHAIN TENSIONNER	Alloy Mini 3/8″ axle
