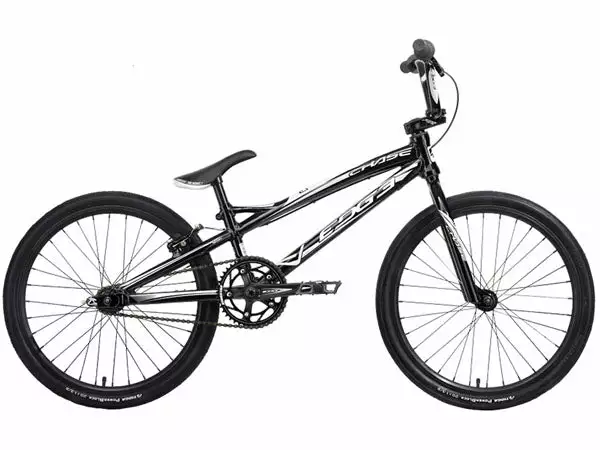

CHASE BICYCLES RACE BIKES Chase Edge BMX Bike-Expert-Black

The Chase Bicycles Edge Expert BMX bike features a 6061 T6 aluminum frame, Chase Edge chromoly fork, Chase 3pc alloy crank and sealed mech cassette hub.

FRAME SPECS:
Top tube Length: 19.75″
Chainstay Length: 13”
Headtube Angle: 73°
Seattube Angle: 72°

Recommended Rider Height: 4′ 8″ – 5′ 2″

FRAME: Chase Edge 6061 T6 Alloy Hydroformed, Semi Integrated Head Tube, 1-1/8″, Water Decals
FORK: Chase Edge Full Cr-mo, 1-1/8″ Steer Tube
HEADSET: Semi Integrated Sealed Bearing
HANDLEBAR: Chase Edge Bar 5.75″ Rise, 8° Back Sweep & 2° Up Sweep
GRIPS: 130mm Soft Single Ply
STEM: Chase Edge 53mm 6061 T6 Alloy Laser Etched Logo
BB: 113mm Sealed Cartridge Square BB
CHAINRING: Kingstar 42 Tooth 5 Bolts 110mm 1/2″x3/32″ 3mm Alloy Ring
CRANK: Chase Edge 3 Pieces Crank 165mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts and Nuts
PEDAL: Platform Pedal 9/16″
CHAIN: KMC Z33 1/2″x3/32″
COG: 16 Tooth
FRONT HUB: 32H, Sealed Mech Bearing
REAR HUB: 32H, Sealed Mech Bearing, Steel Cassette Body, 4 Pawls, 96 Points Of Engagement
SPOKES: 14 Gauge
NIPPLES: Brass Nipples
FRONT RIM: Double Wall 32H 1-3/8″
REAR RIM: Double Wall 32H 1-3/8″
FRONT TIRE: Tioga PowerBlock 1-3/8″
REAR TIRE: Tioga PowerBlock 1-3/8″
TUBES: 20″x1-3/8″
BRAKE LEVER: Tektro 317A
BRAKE CALIPER: Tektro BX-1V
SADDLE: Chase Edge Mini Combo
SEAT POST: Chase Edge Mini Combo 25.4mm
SEAT CLAMP: Chase Edge Integrated On The Frame
CHAIN TENSIONNER: Kingstar Twin Hole Laser Etched Logo

WEIGHT:    19.1lbs / 8.66kgs

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture’s warranty. Manufacture’s warranties differ for every brand. You can check the brand’s website for warranty information.
