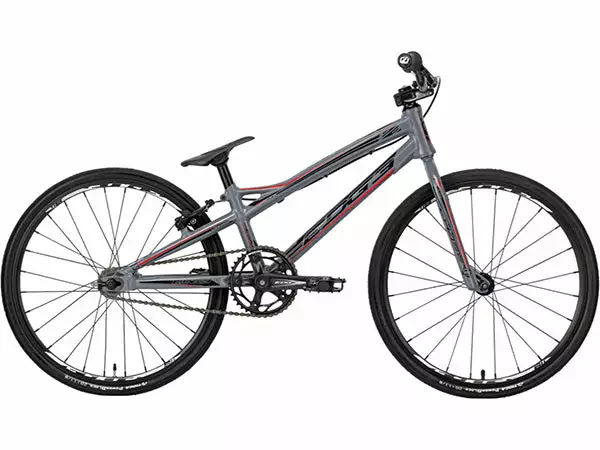

CHASE BICYCLES RACE BIKES Chase Edge Bike-Mini-Grey

The Chase Edge BMX racing bicycle has been one the most sought after bikes to get started on the track over the past few years, and the newly revised 2016 Chase editions can help give you the edge needed to you take it all the way to the top of the podium!
We turned things up a notch with an all new look. The 2016 Edge is looking stunning with a Gun Metal Grey Finish with Red and Black accents helping you stand out off the track, as much as you will be on it! The hydroformed frame never looked so good.

WEIGHT : 15.9 LBS / 7,20 KG WITHOUT PEDAL

RIDER SIZE : 3’11” – 4’7″ / 1M20 – 1M40



KEY FEATURES

FRAME : Chase Edge Frame Mini 17.25″ Top Tube Hydroformed
FORK : Chase Edge Full Cr-mo Fork, 1″ Steer Tube
HEADSET : Integrated 1″ Sealed Bearing
CHAINRING : Kingstar 38 Teeth 5 Bolts
CRANKSET : Chase Edge Alloy 140mm
WHEELS : Chase Edge 118 Double Wall 20″x1-1/8″, 24H Front 28H Rear, Double Contact Seals Bearings Front, Sealed Cartridge Bearing Rear, Steel Cassette Body, 4 Pawls, 90 Points Of Engagement, 16T
TIRES : Tioga PowerBlock 20″x1-1/8″ Front and Rear
BRAKES : Tektro



FRAME	Chase Edge Mini 17.25″ Top Tube 6061 T6 Alloy Hydroformed, Integrated Head Tube, 1″, Water Decals
FORK	Chase Edge Full Cr-mo, 1″ Steer Tube With Tapered Blades
HEADSET	Integrated Sealed Bearing
HANDLEBAR	Chase Edge Bar 2.25″ Rise, 8° Back Sweep & 2° Up Sweep
GRIPS	Insight C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	Chase Edge 40mm 6061 T6 Alloy Laser Etched Logo
BB	113mm Sealed Cartridge Square BB
CHAINRING	Kingstar 38 Tooth 5 Bolts 110mm 1/2″x3/32″ 3mm Alloy Ring
CRANK	Chase Edge 3 Pieces Crank 140mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts and Nuts
PEDAL	Platform Pedal 9/16″
CHAIN	KMC Z33 1/2″x3/32″
COG	16 Tooth
FRONT HUB	Mini Hub, 24H, Double Contact Seals Bearing with Dust Caps, 3/8″ Axle/Nuts
REAR HUB	28H, Sealed Cartridge Bearings with Dust Caps, 3/8″ Axle/Nuts, Steel Cassette Body, 4 Pawl, 90 Points Of Engagement
SPOKES	14 Gauge
NIPPLES	Brass Nipples
FRONT RIM	Chase Edge 118 Double Wall 24H 20″x1-1/8″ Presta Valve
REAR RIM	Chase Edge 118 Double Wall 28H 20″x1-1/8″ Presta Valve
FRONT TIRE	Tioga PowerBlock 20″x1-1/8″
REAR TIRE	Tioga PowerBlock 20″x1-1/8″
TUBES	20”x1-1/8″ Presta Valve
BRAKE LEVER	Tektro 317A
BRAKE CALIPER	Tektro 926AL
SADDLE	Insight Mini Pivotal
SEAT POST	Pivotal 25.4x110mm Alloy
SEAT CLAMP	Chase Edge Integrated On The Frame
CHAIN TENSIONNER	Alloy Mini 3/8″ axle





Frame Size	TT	CS min	LR	AF	SA	HT	SPL	BBH	Wheels
Walking bike	12.5″ 311.15 mm	8.5″ 207 mm	1.8″ 46 mm	70°	71°	3.35″ 85 mm	5.6″ 142 mm	6.6″ 167.6 mm	12×1.75″
Micro	16.5″ 419.1 mm	10.85″ 275.6 mm	1.8″ 46 mm	71°	69°	4″ 100 mm	8.26″ 210 mm	9.75″ 247.6 mm	18×1″
Mini	17.25″ 438.15 mm	12.25″ 312 mm	1.8″ 46 mm	72°	70°	4″ 100 mm	8.8″ 225 mm	10.6″ 269.2 mm	20×1-1/8″
Junior	18.75″ 476.25 mm	12.5″ 317.5 mm	1.8″ 46 mm	73°	72°	4″ 100 mm	8.8″ 225 mm	10.6″ 269.2 mm	20×1-1/8″
Expert	19.75″ 501.65 mm	13″ 330.2 mm	1.8″ 46 mm	73°	72°	4″ 100 mm	8.8″ 225 mm	11″ 279.4 mm	20×1-3/8″
Expert XL	20″ 508 mm	13.5″ 353 mm	1.8″ 46 mm	73°	72°	4″ 100 mm	8.8″ 225 mm	11.5″ 292.1 mm	20×1.50″
Pro	20.5″ 520.7 mm	14″ 355.6 mm	1.8″ 46 mm	74°	72°	4.33″ 110 mm	9.4″ 238 mm	11″ 279.4 mm	20×1.75″
Pro XL	21″ 533.4 mm	14.15″ 359.4 mm	1.8″ 46 mm	74°	72°	4.33″ 110 mm	9.3″ 238 mm	11.5″ 292.1 mm	20×1.75″
Cruiser	21.5″ 546.1 mm	14.5″ 368.3 mm	1.8″ 46 mm	74°	71°	4.7″ 120 mm	10.6″ 270 mm	12″ 304.8 mm	24×1.75″
